COWLING BRACE

GV1400GT 1986 (G) (E01)

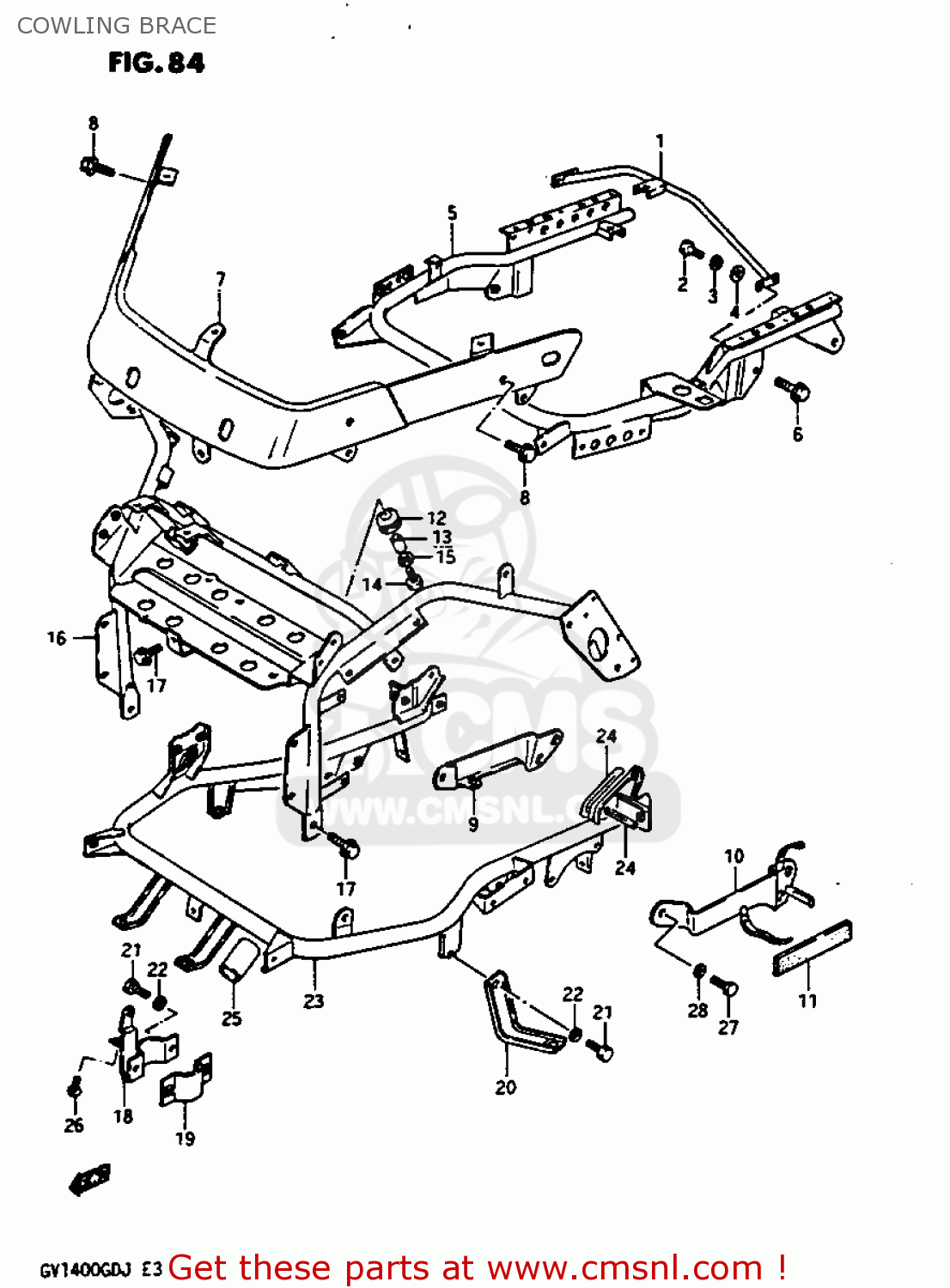

Cowling brace diagram GV1400GT 1986 (G) (E01)

COWLING BRACE GV1400GT 1986 (G) (E01)

COWLING BRACE GV1400GT 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

9465024A00
ref: 1

BRACE,CENTER COVER

€ 19.50

2

0110405123
ref: 2

BOLT

€ 1.50

3

0832121053
ref: 3

LOCK WASHER

€ 2.50

4

0832221053
ref: 4

WASHER,5.5X12X

€ 2.00

5-1

9451024A01
ref: 5-1
GV1400GDG/GTG

BRACE,UPPER

€ 142.00

5-2

9451024A01
ref: 5-2
GV1400GCG/MODEL H/J

BRACE,UPPER

€ 142.00

6-1

0151708163
ref: 6-1
MODEL G/H

BOLT

€ 2.00

6-2

0151708167
ref: 6-2
MODEL J

BOLT 8X16

€ 3.00

7-1

9454024A01
ref: 7-1
GV1400GDG/GTG

BRACE,SCREEN

€ 45.50

7-2

9454024A01
ref: 7-2
GV1400GCG/MODEL H/J

BRACE,SCREEN

€ 45.50

8

0151706163
ref: 8

BOLT

€ 2.50

9

9476424A00
ref: 9

REINFORCEMENT,RIGHT

€ 8.50

10

9477424A00
ref: 10

REINFORCEMENT,LEFT

€ 8.50

11

9476324A00
ref: 11

CUSHION

€ 4.50

12

0932008018
ref: 12

CUSHION

€ 4.00

13

0918006044
ref: 13

SPACER (6.1X8X9.5)

€ 2.50

14

0110706165
ref: 14

BOLT 6X16

€ 2.00

15

0916006063
ref: 15

WASHER (6.5X22X1.6)

€ 2.00

16-1

9453024A02
ref: 16-1
GV1400GDG/GTG

BRACE,HEADLAMP

€ 160.00

16-2

9453024A11
ref: 16-2
GV1400GCG

BRACE,HEADLAMP

€ 155.50

16-3

9453024A11
ref: 16-3
MODEL H/J

BRACE,HEADLAMP

€ 155.50

17

0151706123
ref: 17

BOLT

€ 2.50

18

9447024A00
ref: 18

BRACKET COMP,COWLING SIDE

€ 4.50

19

9448024A00
ref: 19

BRACKET COMP,COWLING SIDE

€ 2.50

20

9449024A00
ref: 20

BRACKET COMP,COWLING COVER

€ 5.00

21

0110706205
ref: 21

BOLT

€ 2.00

22

0832121064
ref: 22

WASHER,LOCK

€ 2.00

23

9452024A00
ref: 23

BRACE COMP,REAR

€ 142.00

24

6824124A10
ref: 24

MOLDING,FUEL TANK

€ 2.50

25

9463224A00
ref: 25

PROTECTOR,REAR BRACE

€ 3.00

26

0214206164
ref: 26

SCREW

€ 2.50

27

0110706165
ref: 27

BOLT 6X16

€ 2.00

28

0916006063
ref: 28

WASHER (6.5X22X1.6)

€ 2.00
