STAND

GV1400GT 1986 (G) (E01)

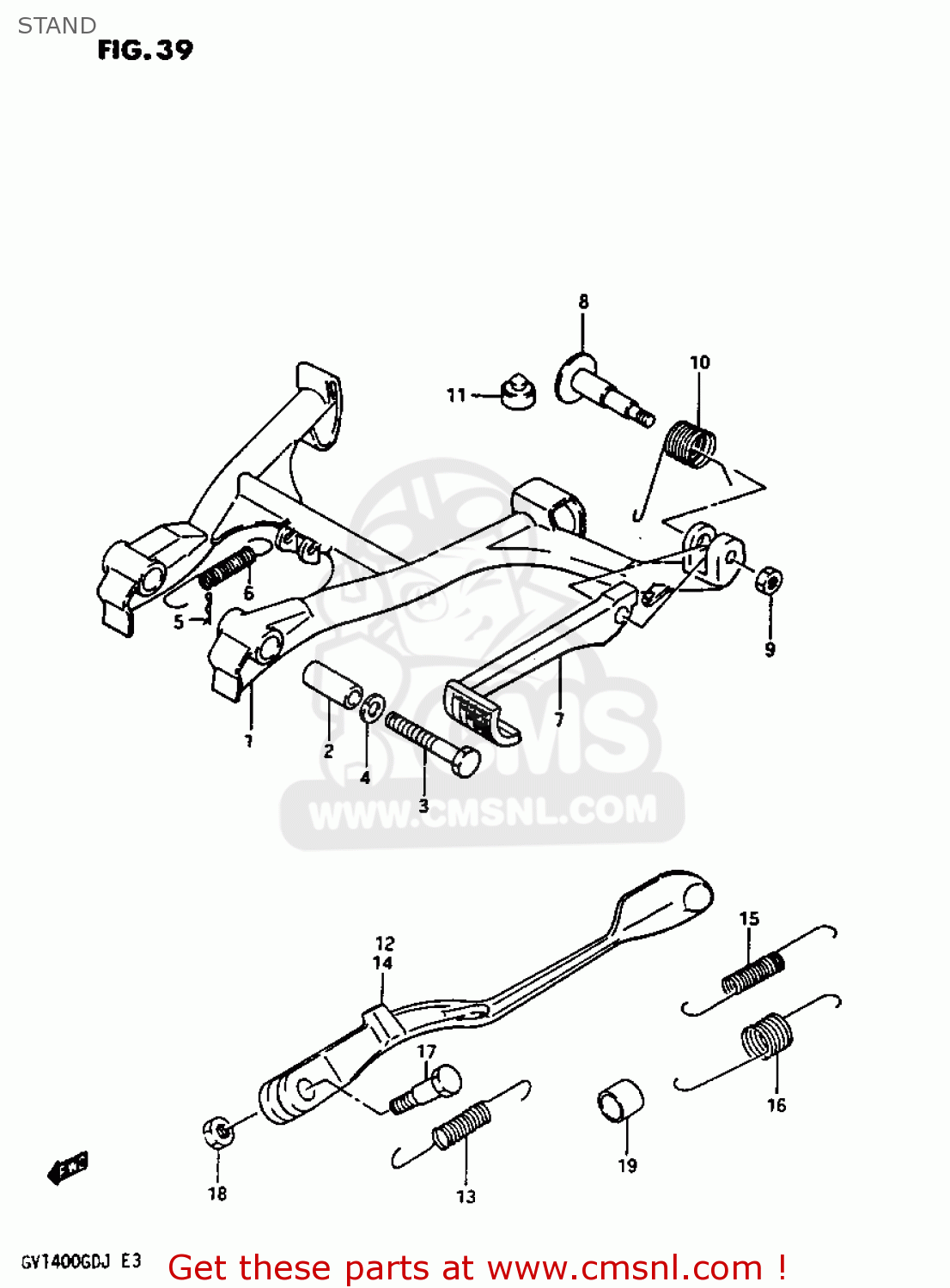

Stand diagram GV1400GT 1986 (G) (E01)

STAND GV1400GT 1986 (G) (E01)

STAND GV1400GT 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

4210024A00
ref: 1

STAND COMP,CENTER

€ 125.50

2

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

3

0910110035
ref: 3

BOLT 10X63

€ 6.50

4

0832121107
ref: 4

WASHER,LOCK,10

€ 2.00

5

0938510001
ref: 5

CLIP

€ 1.50

6

0944315018
ref: 6

SPRING

€ 13.00

7

4217024A00
ref: 7

PEDAL COMP,CENTER STAND

€ 46.50

8

4224024A00
ref: 8

BOLT COMP,CENTER STAND

€ 10.50

9

0831022085
ref: 9

NUT 8MM

€ 2.00

10-1

0944825021
ref: 10-1
MODEL G

SPRING

€ 6.00

10-2

0944825023
ref: 10-2
MODEL H/J

SPRING

€ 6.00

11

0932110017
ref: 11

CUSHION

€ 5.50

12

4231124A01019
ref: 12
MODEL G

STAND,SIDE

€ 50.50

13

0944314019
ref: 13
MODEL G

SPRING

€ 7.00

14

4231124A01019
ref: 14
MODEL H/J

STAND,SIDE

€ 50.50

15

0944315036
ref: 15
MODEL H/J

SPRING

€ 7.50

16

0944321004
ref: 16
MODEL H/J

SPRING

€ 8.50

17

0911110037
ref: 17

BOLT L:40

€ 0.00

18

0831022105
ref: 18

NUT

€ 2.00

19

4231524A00
ref: 19

RUBBER, PROP STAND

€ 4.00
