CRANKCASE COVER

GV1400GT 1986 (G) (E01)

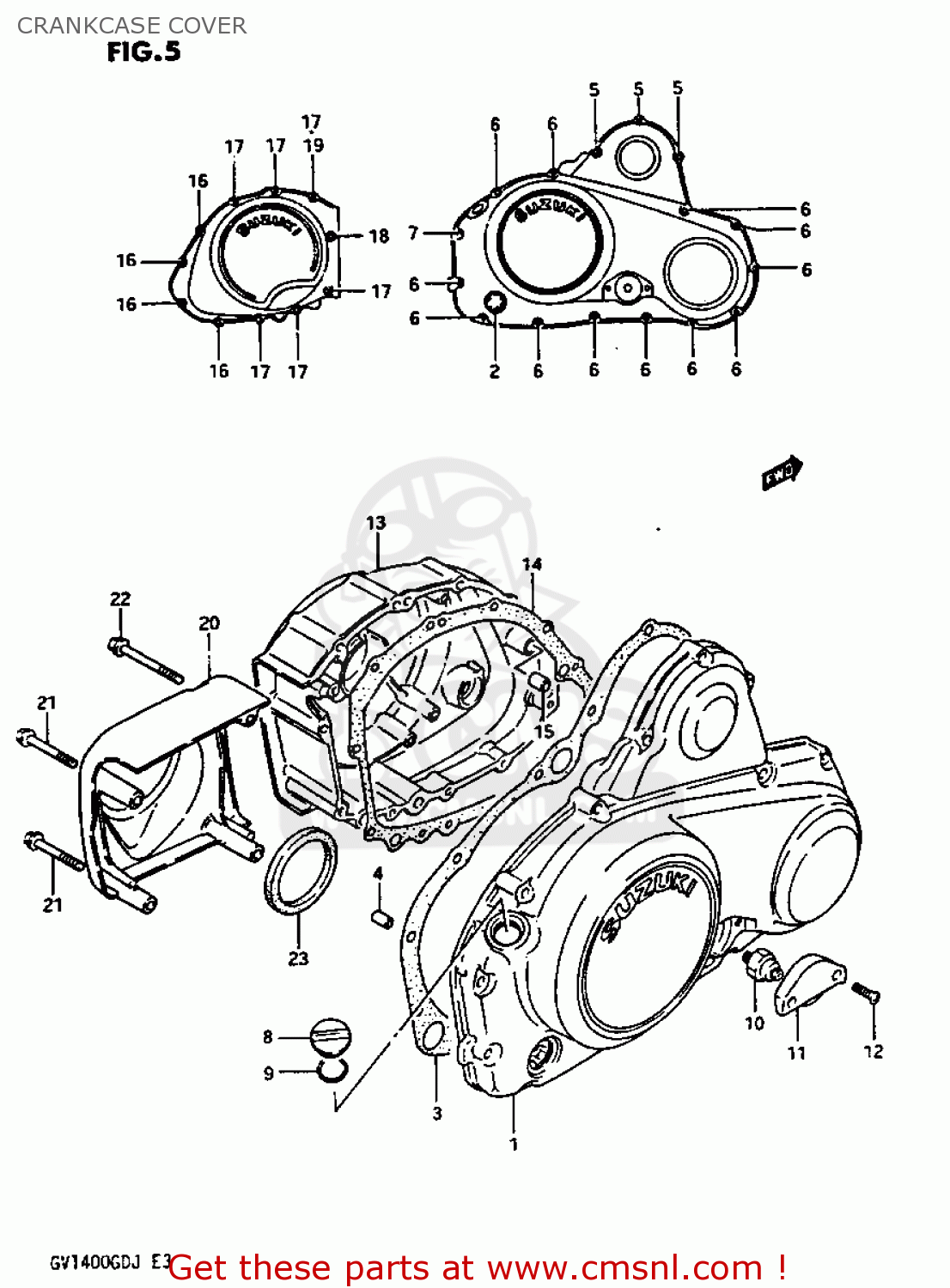

Crankcase cover diagram GV1400GT 1986 (G) (E01)

CRANKCASE COVER GV1400GT 1986 (G) (E01)

CRANKCASE COVER GV1400GT 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1134024A10
ref: 1-1
GV1400GDG/GCG/GDH/GC

COVER COMP,CLUTCH

€ 333.00

1-2

1134024A00
ref: 1-2
GV1400GTG

COVER,CLUTCH

€ 0.00

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148205A01H17
ref: 3

GASKET,CLUTCH COVER (NAS)

€ 25.50

4

0421109169
ref: 4

PIN

€ 1.50

5

0154706307
ref: 5

BOLT

€ 2.50

6

0154706357
ref: 6

BOLT

€ 2.50

7

0154706457
ref: 7

BOLT

€ 2.50

8-1

0925920014
ref: 8-1
GV1400GDG/GCG/GDH/GC

Chrome Oil Fill Cap

€ 10.00

8-2

0925920007
ref: 8-2
GV1400GTG

PLUG(20X10)

€ 6.50

9

0928017003
ref: 9

O RING(D:3.1,ID:16.8)

€ 2.00

10

3782033D00
ref: 10

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00

11-1

1138405A10
ref: 11-1
GV1400GTG

CAP,OIL PRESSURE SWITCH

€ 22.50

11-2

1138405A00
ref: 11-2
GV1400GTG

CAP,OIL PRESSURE SWITCH

€ 0.00

12

0912705010
ref: 12

SCREW (L:20)(SUS)

€ 0.00

13-1

1135124A11
ref: 13-1
GV1400GDG/GCG/GDH/GC

COVER,GENERATOR

€ 259.00

13-2

1135124A02
ref: 13-2
GV1400GTG

COVER

€ 0.00

14

1148324A00H17
ref: 14

GASKET,GENERATOR COVER (NAS)

€ 16.50

15

0920611005
ref: 15

PIN (11X20)(SUS)

€ 6.50

16

0154706307
ref: 16

BOLT

€ 2.50

17

0154706707
ref: 17

BOLT

€ 2.50

18

0154706757
ref: 18

BOLT

€ 2.50

19

0916806023
ref: 19

GASKET(5.8X13X1.2) (NAS)

€ 2.00

20-1

1136124A11
ref: 20-1
GV1400GDG/GCG/GDH/GC

COVER,SECONDARY DRIVE

€ 149.50

20-2

1136124A04
ref: 20-2
GV1400GTG

COVER,SPROCKET

€ 0.00

21

0154706657
ref: 21

BOLT

€ 2.00

22

0154706707
ref: 22

BOLT

€ 2.50

23

1136924A02
ref: 23

DAMPER,SECONDARY COVER

€ 4.00
