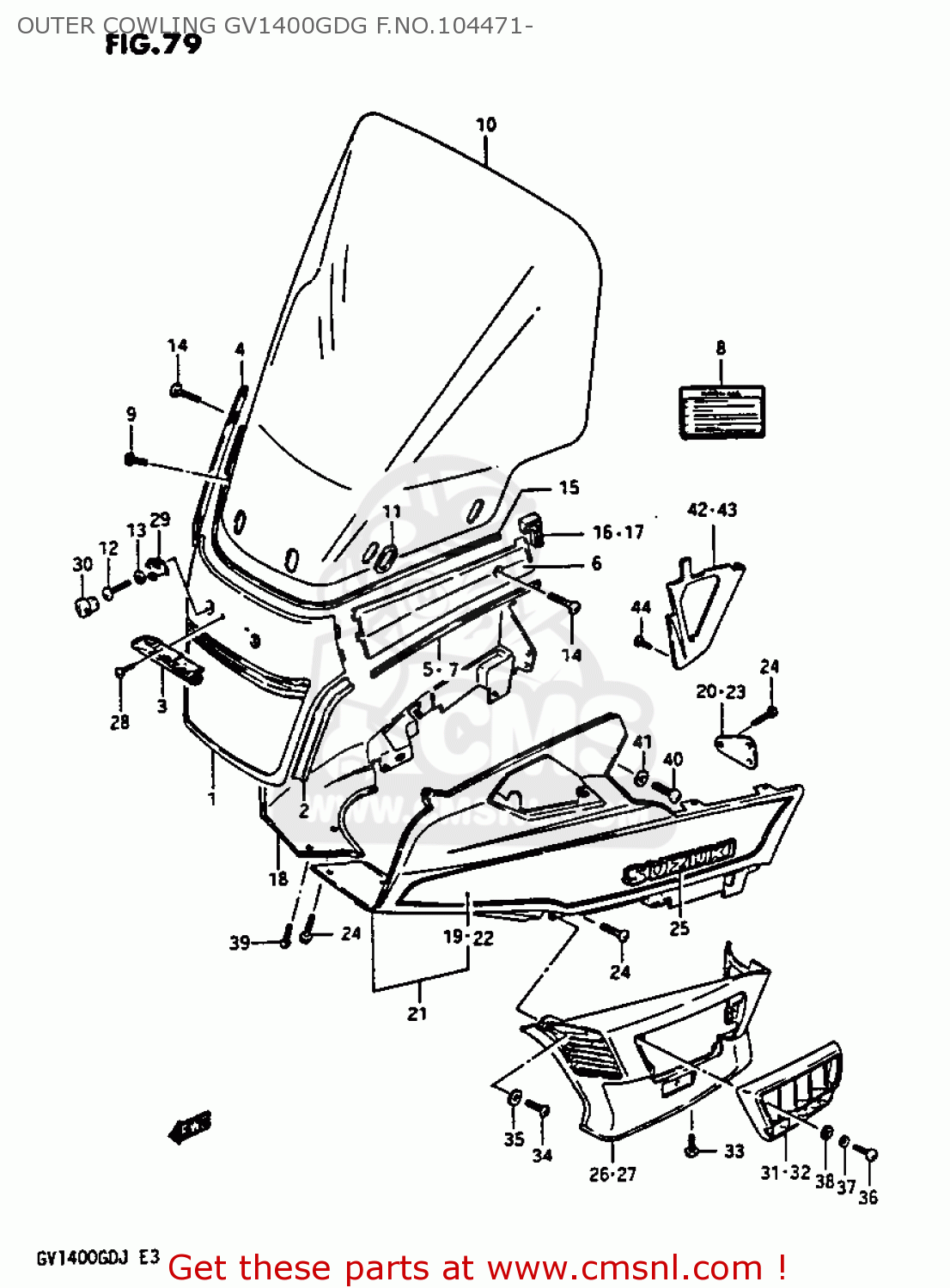

OUTER COWLING GV1400GDG F.NO.104471-

ref

part #

description

quantity

1

9441124A00
ref: 1

COVER,COWLING,FRONT,CENTER

€ 135.50

2

9463924A02
ref: 2

MOLDING,FRONT COVER,LOWER

€ 6.50

3

6819324A00
ref: 3

EMBLEM,COWLING,FRONT

€ 24.50

4

9441224A01
ref: 4

COVER,COWLING,FRONT,RIGHT

€ 35.50

5

9463624A02
ref: 5

MOLDING,FRONT COVER SIDE

€ 7.00

6

9441324A01
ref: 6

COVER,COWLING,FRONT,LEFT

€ 31.00

7

9463624A02
ref: 7

MOLDING,FRONT COVER SIDE

€ 7.00

8

6861224A01
ref: 8

LABEL (WARNING SCREEN)

€ 3.00

9

0214206203
ref: 9

SCREW

€ 2.00

10-1

9461024A01
ref: 10-1

SCREEN ASSY,COWLING

€ 613.00

10-2

9461024A91
ref: 10-2
OPT

SCREEN ASSEMBLY,COWLING (OP

€ 382.50

11

9461424A00
ref: 11

WASHER,SCREEN

€ 3.50

12

0211206257
ref: 12

SCREW

€ 2.00

13

0832201067
ref: 13

WASHER

€ 2.00

14

0211205125
ref: 14

SCREW

€ 1.50

15

9463524A00
ref: 15

SEAL,FRONT COVER,CENTER

€ 9.50

16

9463724A00
ref: 16

CAP,COWLING FRONT COVER END

€ 13.50

17

9464724A00
ref: 17

CAP,COWL FR COVER END,L

€ 12.50

18-1

9445024A007UM
ref: 18-1

BODY,COWLING,RIGHT

€ 352.00

18-2

9445024A007UN
ref: 18-2

BODY,COWLING,RIGHT

€ 352.00

19-1

6868024A007UP
ref: 19-1
FOR 7UM

TAPE SET,COWLING BODY

€ 0.00

19-2

6868024A007UR
ref: 19-2
FOR 7UN

TAPE SET,COWLING BODY

€ 0.00

20

9449924A00
ref: 20

BRACKET,COWLING BODY,RIGHT

€ 5.00

21-1

9446024A007UM
ref: 21-1

BODY,COWLING,LEFT

€ 319.50

21-2

9446024A007UN
ref: 21-2

BODY,COWLING,LEFT

€ 319.50

22-1

6869024A007UP
ref: 22-1
FOR 7UM

TAPE SET,COWLING BODY

€ 0.00

22-2

6869024A007UR
ref: 22-2
FOR 7UN

TAPE SET,COWLING

€ 0.00

23

9449924A00
ref: 23

BRACKET,COWLING BODY,RIGHT

€ 5.00

24

0214206164
ref: 24

SCREW

€ 2.50

25

6811124A00
ref: 25

EMBLEM,COWLING SIDE,LEFT

€ 43.50

26-1

9443024A0124G
ref: 26-1

COVER ASSEMBLY,COWLING

€ 250.50

26-2

9443024A0124H
ref: 26-2

COVER ASSEMBLY,COWLING

€ 250.50

27-1

9444024A0124G
ref: 27-1

COVER,COWLING SIDE,LEFT

€ 264.00

27-2

9444024A0124H
ref: 27-2

COVER,COWLING SIDE,LEFT

€ 264.00

28

0213203128
ref: 28

SCREW

€ 1.00

29

9445624A11
ref: 29

PLATE,FRONT COVER LOCK

€ 4.00

30

9445724A11
ref: 30

CAP,FR COVER

€ 5.00

31

9443524A01
ref: 31

LOUVER,SIDE COVER,RIGHT

€ 81.50

32

9444524A01
ref: 32

LOUVER,SIDE COVER,LEFT

€ 66.50

33

0913906012
ref: 33

SCREW (M6X1X16)

€ 2.00

34

0214204165
ref: 34

SCREW

€ 2.00

35

0916004017
ref: 35

WASHER (4.3X13X0.80)

€ 1.50

36

0211204163
ref: 36

SCREW 4X16

€ 1.00

37

0832121043
ref: 37

LOCK WASHER

€ 2.00

38

0832221043
ref: 38

WASHER

€ 5.00

39

0214205164
ref: 39

SCREW

€ 2.50

40

0211206164
ref: 40

SCREW

€ 2.00

41

0832221064
ref: 41

WASHER

€ 2.00

42

9443624A01
ref: 42

UNDER COVER, FRAME

€ 11.50

43

9444624A01
ref: 43

COVER,COVER FRAME,UPPER

€ 11.50

44

0354104085
ref: 44

SCREW

€ 2.00

all assemblies
