CLUTCH

GV1400GT 1986 (G) (E01)

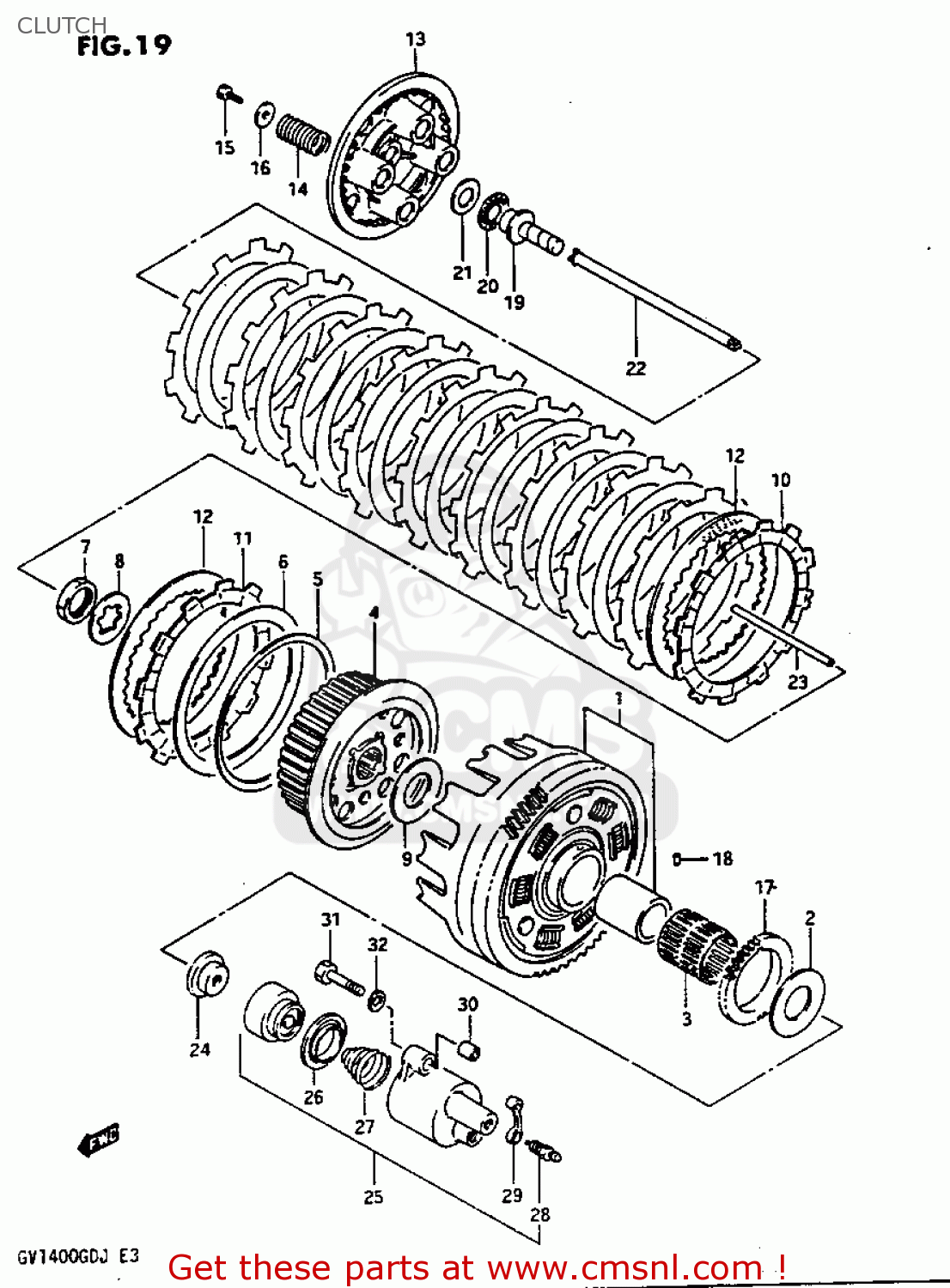

Clutch diagram GV1400GT 1986 (G) (E01)

CLUTCH GV1400GT 1986 (G) (E01)

CLUTCH GV1400GT 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

2120024822
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 300.00

2

0916025067
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335013
ref: 3

BEARING(35X40X39.8)

€ 29.00

4

2141024A00
ref: 4

HUB COMP,CLUTCH SLEEVE

€ 82.50

5

2147137400
ref: 5

SEAT,WAVE WASHER(T:1.4)

€ 8.00

6

0916400004
ref: 6

WASHER

€ 9.00

7

0914024007
ref: 7

NUT

€ 4.50

8

0916725007
ref: 8

WASHER,LOCK

€ 7.50

9

0916025056
ref: 9

WASHER(25X50X2.5)

€ 9.50

10

2144107A02
ref: 10

PLATE,CLUTCH DRIVE (NAS)

€ 16.50

11

2144237401
ref: 11

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

12

2145114A00
ref: 12

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 6.50

13

2146205A01
ref: 13

DISC,CLUTCH PRESSURE

€ 35.00

14

0944020013
ref: 14

SPRING

€ 5.00

15

0150006167
ref: 15

BOLT

€ 3.00

16

0916006066
ref: 16

WASHER(6.5X20X1.6)

€ 2.00

17

1632105A00
ref: 17

GEAR,OIL PUMP DRIVE

€ 38.00

18

0926106002
ref: 18

PIN(6X6)

€ 1.50

19

2312144100
ref: 19

PIECE,CLUTCH PUSH

€ 21.50

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0916015045
ref: 21

WASHER(15.5X28X1)

€ 4.00

22

2311038400
ref: 22

ROD,CLUTCH PUSH

€ 16.00

23

2311124A01
ref: 23

ROD,CLUTCH PUSH,L

€ 15.00

24

0928506016
ref: 24

SEAL,OIL(6X36X6)

€ 16.00

25

2316005A02
ref: 25

CYLINDER,CLUTCH RELEASE

€ 121.50

26

2316305A00
ref: 26

CUP,CLUTCH CYLINDER

€ 7.50

27

2316405A00
ref: 27

SPRING,CLUTCH CYLINDER

€ 3.50

28

5912101A00
ref: 28

BLEEDER

€ 8.50

29

5912201A00
ref: 29

CAP,BLEEDER

€ 4.50

30

0421109129
ref: 30

PIN

€ 2.00

31

0110706356
ref: 31

BOLT ,6X35

€ 2.50

32

0832121066
ref: 32

WASHER,LOCK

€ 2.00
