CANISTER (FOR CALIFORNIA)

GV1400GT 1986 (G) (E01)

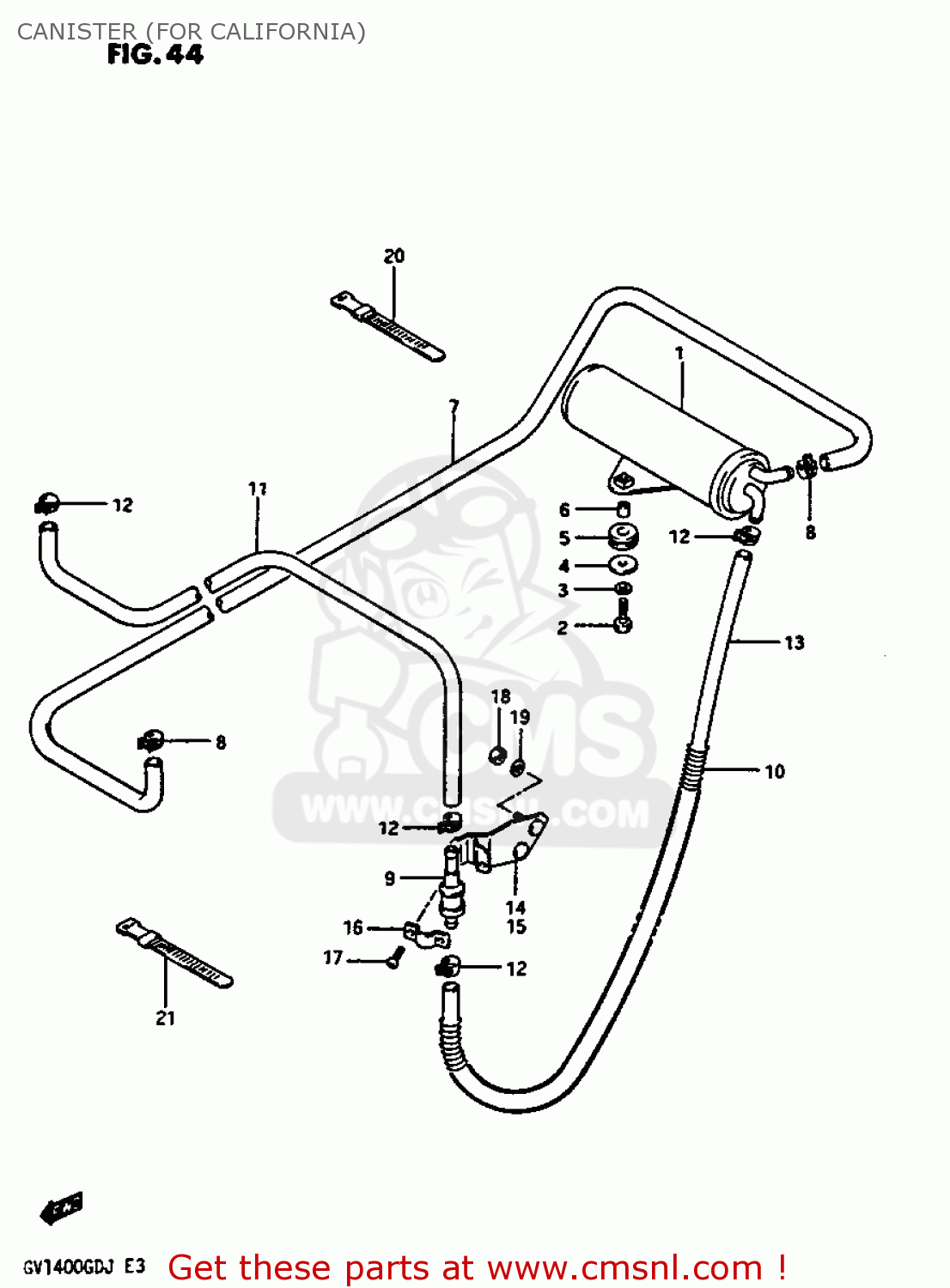

Canister (for california) diagram GV1400GT 1986 (G) (E01)

CANISTER (FOR CALIFORNIA) GV1400GT 1986 (G) (E01)

CANISTER (FOR CALIFORNIA) GV1400GT 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

1721024A02
ref: 1

(CA) CANISTER ASSEMBLY,CHARCOAL

€ 0.00

2

0110706205
ref: 2

BOLT

€ 2.00

3

0832121064
ref: 3

WASHER,LOCK

€ 2.00

4

0916006039
ref: 4

WASHER (6.5X18X1.6)

€ 2.00

5

0932008021
ref: 5

CUSHION

€ 4.00

6

0918006038
ref: 6

SPACER(6.1X9X7.5)

€ 2.00

7

0934307186
ref: 7

(CA) HOSE

€ 19.50

8

0940112406
ref: 8

CLAMP

€ 2.50

9

4424038A00
ref: 9

VALVE,FUEL TANK BREATHER

€ 35.00

10

0944013020
ref: 10

SPRING

€ 14.50

11

0934305373
ref: 11

HOSE

€ 0.00

12

0940111410
ref: 12

(CA) CLIP

€ 2.50

13

0934305395
ref: 13

(CA) HOSE

€ 0.00

14-1

4489024A01
ref: 14-1
GV1400GDG/GTG

PLATE,TANK BREATHER VALVE

€ 0.00

14-2

4489024A01
ref: 14-2
GV1400GCG/GDH/GCH/GD

PLATE,TANK BREATHER VALVE

€ 0.00

15

4489424A00
ref: 15

CUSHION

€ 1.50

16

4489224A00
ref: 16

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

17

0214204103
ref: 17

SCREW

€ 1.50

18

0831921068
ref: 18

NUT 6MM

€ 2.00

19

0916006056
ref: 19

WASHER(6.5X18X1)

€ 2.00

20

0940712403
ref: 20

CLAMP

€ 3.00

21

0940718401
ref: 21

CLAMP(L:187)

€ 2.00
