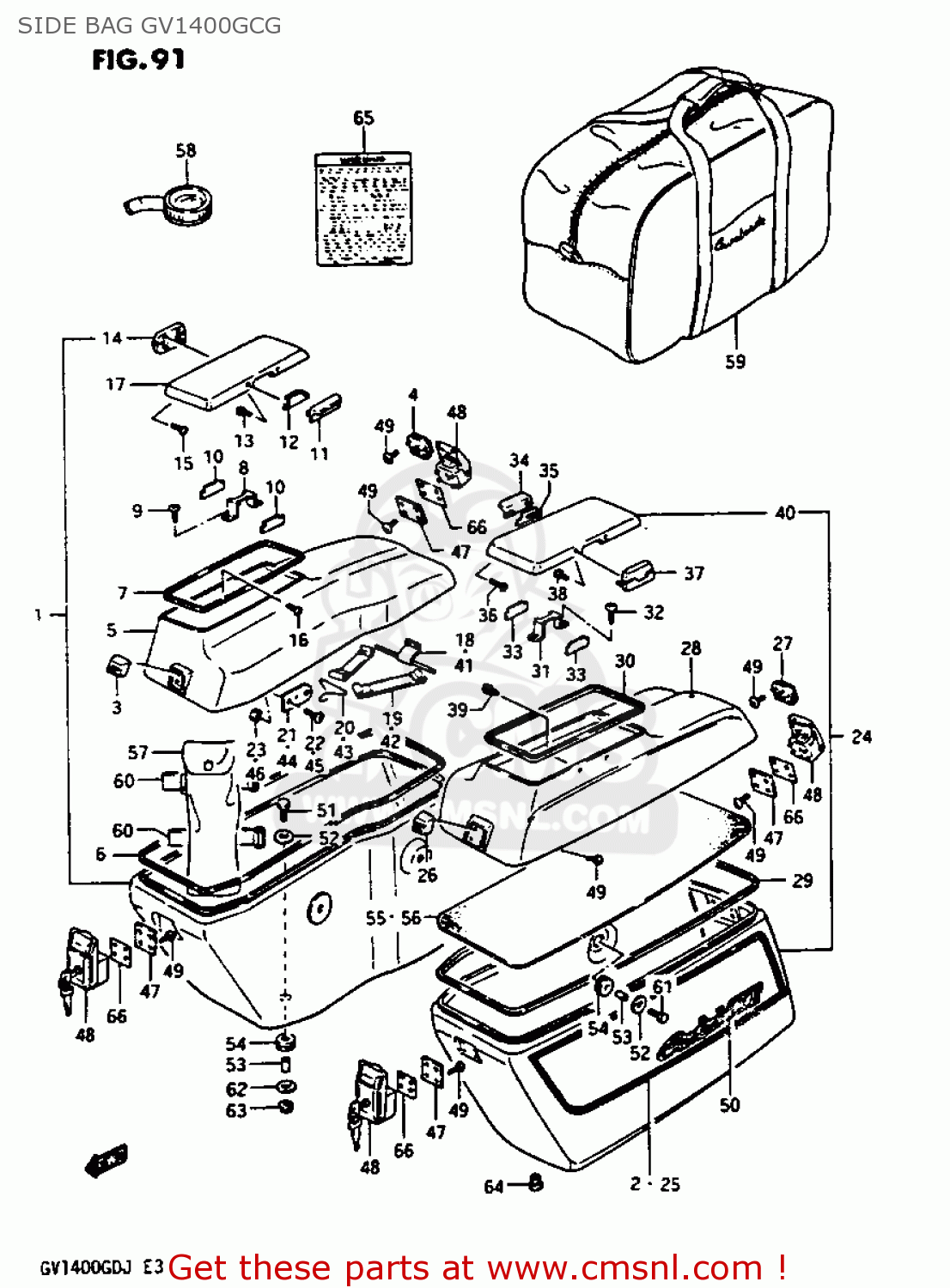

SIDE BAG GV1400GCG

ref

part #

description

quantity

1-1

9540024A418RB
ref: 1-1

SIDE BAG ASSEMBLY,RIGHT

€ 1,310.00

1-2

9540024A418VA
ref: 1-2

SIDE BAG ASSEMBLY,RIGHT

€ 1,545.00

2-1

6826024A208JB
ref: 2-1
FOR 8RB

TAPE SET,SIDE BAG,RIGHT

€ 0.00

2-2

6826024A208UZ
ref: 2-2
FOR 8VA

TAPE SET,SIDE BAG,RIGHT

€ 0.00

3

9331624A02
ref: 3

PLATE,TRUNK LID LOCK

€ 15.00

4

9331624A13
ref: 4

PLATE,SIDE BAG LID LOCK

€ 15.00

5-1

9544024A1027U
ref: 5-1
FOR 8RB

LID,SIDE BAG,RIGHT

€ 346.50

5-2

9544024A1024V
ref: 5-2
FOR 8VA

LID,SIDE BAG,RIGHT

€ 272.00

6

9542224A01
ref: 6

SEAL,SIDE BAG

€ 10.50

7

9544624A02
ref: 7

SEAL,SIDE BAG

€ 9.00

8

9551624A00
ref: 8

HOLDER,LID LOCK MAGNET

€ 4.00

9

0351103125
ref: 9

SCREW

€ 0.00

10

9542324A10
ref: 10

PLATE,LID LOCK

€ 4.00

11

9544724A00
ref: 11

LEVER,SIDE POCKET OPEN

€ 19.50

12

9542424A00
ref: 12

PLATE,LID LOCK NO.1

€ 4.50

13

0214204065
ref: 13

SCREW

€ 1.50

14

9544324A00
ref: 14

HINGE,LID SIDE BAG POCKET

€ 47.00

15

0214204065
ref: 15

SCREW

€ 1.50

16

0214204125
ref: 16

SCREW

€ 1.50

17

9544824A00
ref: 17

LID,SIDE BAG POCKET

€ 65.50

18

9547024A00
ref: 18

PLATE,LUGGAGE BAND LID

€ 8.50

19

9547424A00
ref: 19

BAND,LUGGAGE LID

€ 13.00

20

9547524A00
ref: 20

.HOOK

€ 4.50

21

9547324A00
ref: 21

PLATE, FRONT

€ 4.50

22

0214205124
ref: 22

SCREW, FRONT & REAR

€ 1.50

23

0831321055
ref: 23

NUT 5MM

€ 1.50

24-1

9550024A418RB
ref: 24-1

SIDE BAG ASSEMBLY,LEFT

€ 1,310.00

24-2

9550024A418VA
ref: 24-2

SIDE BAG ASSEMBLY,LEFT

€ 1,721.50

25-1

6829024A208JB
ref: 25-1
FOR 8RB

TAPE SET

€ 0.00

25-2

6829024A208UZ
ref: 25-2
FOR 8VA

TAPE SET,SIDE BAG,LEFT

€ 44.50

26

9331624A02
ref: 26

PLATE,TRUNK LID LOCK

€ 15.00

27

9331624A13
ref: 27

PLATE,SIDE BAG LID LOCK

€ 15.00

28-1

9554024A1027U
ref: 28-1
FOR 8RB

LID,SIDE BAG,LEFT

€ 0.00

28-2

9554024A1024V
ref: 28-2
FOR 8VA

LID,SIDE BAG,LEFT

€ 301.50

29

9542224A01
ref: 29

SEAL,SIDE BAG

€ 10.50

30

9544624A02
ref: 30

SEAL,SIDE BAG

€ 9.00

31

9551624A00
ref: 31

HOLDER,LID LOCK MAGNET

€ 4.00

32

0351103125
ref: 32

SCREW

€ 0.00

33

9542324A10
ref: 33

PLATE,LID LOCK

€ 4.00

34

9544724A00
ref: 34

LEVER,SIDE POCKET OPEN

€ 19.50

35

9542424A00
ref: 35

PLATE,LID LOCK NO.1

€ 4.50

36

0214204065
ref: 36

SCREW

€ 1.50

37

9544324A00
ref: 37

HINGE,LID SIDE BAG POCKET

€ 47.00

38

0214204065
ref: 38

SCREW

€ 1.50

39

0214204125
ref: 39

SCREW

€ 1.50

40

9544824A00
ref: 40

LID,SIDE BAG POCKET

€ 65.50

41

9547024A00
ref: 41

PLATE,LUGGAGE BAND LID

€ 8.50

42

9547424A00
ref: 42

BAND,LUGGAGE LID

€ 13.00

43

9547524A00
ref: 43

.HOOK

€ 4.50

44

9547324A00
ref: 44

PLATE, FRONT

€ 4.50

45

0214205124
ref: 45

SCREW, FRONT & REAR

€ 1.50

46

0831321055
ref: 46

NUT 5MM

€ 1.50

47

9312424A00
ref: 47

SET PLATE,LOCK SIDE BA

€ 5.00

48

9330024820
ref: 48

LOCK SET,SIDE BAG

€ 96.50

49

0214205084
ref: 49

SCREW

€ 2.00

50

6826124A20
ref: 50

EMBLEM

€ 25.00

51

0150006307
ref: 51

BOLT

€ 2.50

52

0916006030
ref: 52

WASHER (6.5X29X1.6)

€ 2.50

53

0918006055
ref: 53

SPACER(6.3X9.3X16.5)

€ 4.00

54

0932009017
ref: 54

CUSHION

€ 3.00

55

9541624A00
ref: 55

SEAT, BOTTOM RH

€ 13.50

56

9541724A00
ref: 56

SEAT, BOTTOM LH

€ 13.50

57

0980000293
ref: 57

TOOL ASSY

€ 448.50

58

9620041330
ref: 58

GAUGE ASSY,AIR PRESSURE

€ 77.50

59

9545024A01
ref: 59

LUGGAGE BAG,SIDE BAG

€ 131.50

60

0946200040
ref: 60

BAND

€ 4.50

61

0120406307
ref: 61

BOLT

€ 0.50

62

0916006013
ref: 62

WASHER (6.5X18X2)

€ 10.50

63

0831931067
ref: 63

NUT

€ 2.50

64

0925008013
ref: 64

CAP(OD:12)

€ 2.00

65

6861324A20
ref: 65

LABEL (WARNING TRAVEL T

€ 0.00

66

9331424A01
ref: 66

PACKING SEAT

€ 3.50
