CAMSHAFT -VALVE

GV1400GT 1986 (G) (E01)

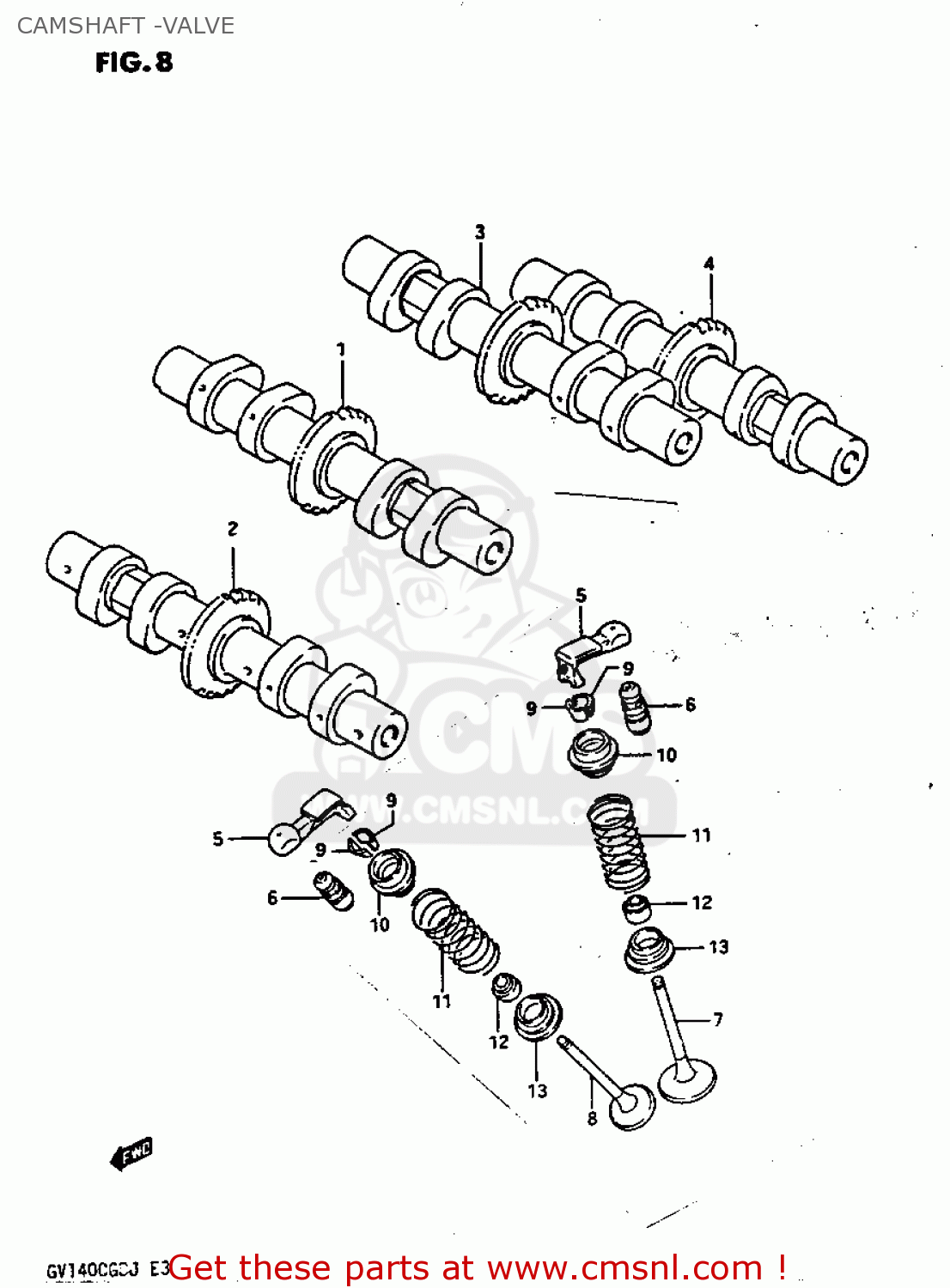

Camshaft -valve diagram GV1400GT 1986 (G) (E01)

CAMSHAFT -VALVE GV1400GT 1986 (G) (E01)
CAMSHAFT -VALVE GV1400GT 1986 (G) (E01)
CAMSHAFT -VALVE GV1400GT 1986 (G) (E01)
prices are in EUR
ref
part #
description
quantity
1
1271024A01
ref: 1
SHAFT COMP,INTAKE FRONT CAM
€ 174.00
2
1272024A01
ref: 2
SHAFT,EXHAUST FRONT CAM
€ 212.50
3
1271224A01
ref: 3
SHAFT COMP,INTAKE REAR CAM
€ 185.50
4
1272224A01
ref: 4
SHAFT,EXHAUST REAR CAM
€ 212.50
5
1284124A00
ref: 5
ARM,VALVE ROCKER
1284124A00
€ 22.00
6
1286005A01
ref: 6
ADJUSTER,HYDRAULIC VALVE
1286005A01
€ 45.50
7
1291124A00
ref: 7
VALVE,INTAKE
1291124A00
€ 15.00
8
1291224A00
ref: 8
VALVE,EXHAUST
1291224A00
€ 25.00
9
1293227A00
ref: 9
COTTER VALVE
1293227A00
€ 2.50
10
1293124A01
ref: 10
RETAINER,VALVE SPRING
€ 7.00
11
1292124A00
ref: 11
SPRING,VALVE
1292124A00
€ 5.50
12
0928905008
ref: 12
SEAL,OIL(5X10.5X8.4)
0928905008
€ 6.00
13
1293333201
ref: 13
SEAT,VALVE SPRING
1293333201
€ 4.50
