BRAKE PEDAL

RMX450Z 2010 (L0) USA (E03)

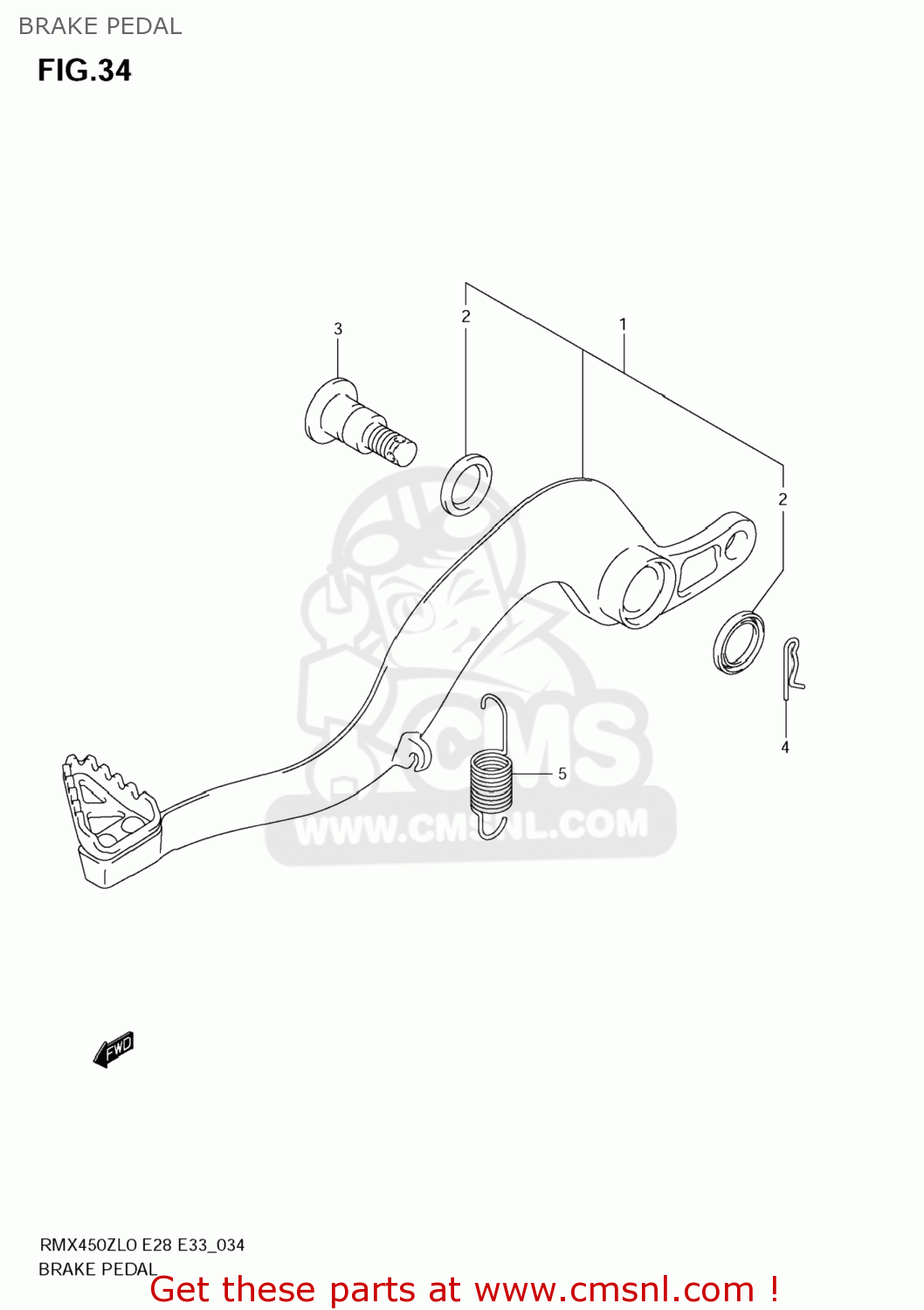

Brake pedal diagram RMX450Z 2010 (L0) USA (E03)

BRAKE PEDAL RMX450Z 2010 (L0) USA (E03)

BRAKE PEDAL RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4310028H00
ref: 1

PEDAL ASSY,BRAKE

€ 89.00

2

0928415006
ref: 2

SEAL,OIL(15X21X3)

€ 3.50

3

4314228H00
ref: 3

SHAFT,BRAKE PEDAL

€ 15.00

4

0938510005
ref: 4

CLIP

€ 1.50

5

0944313037
ref: 5

SPRING

€ 3.00
