HANDLEBAR

RMX450Z 2010 (L0) USA (E03)

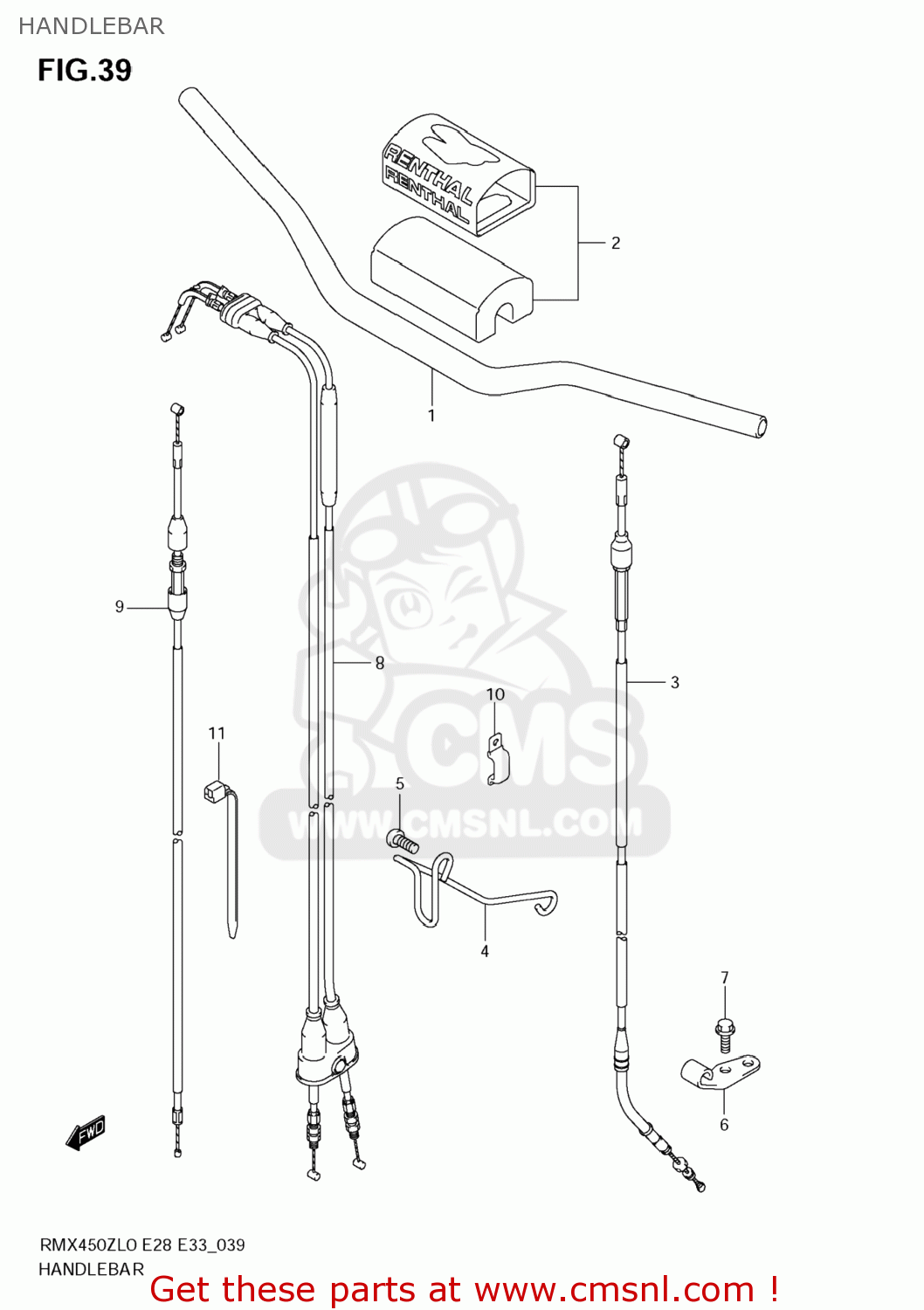

Handlebar diagram RMX450Z 2010 (L0) USA (E03)

HANDLEBAR RMX450Z 2010 (L0) USA (E03)

HANDLEBAR RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611135G00
ref: 1

HANDLEBAR

€ 272.50

2

5617035G10
ref: 2

PAD SET,HANDLEBAR (NAS)

€ 105.50

3

5820002J00
ref: 3

CABLE ASSY,CLUTCH

€ 44.00

4

5831128H10
ref: 4

GUIDE,CABLE

€ 6.00

5

021120612A
ref: 5

SCREW

€ 1.50

6

5863402J00
ref: 6

STOPPER,CLUTCH CABLE

€ 10.50

7

015470612A
ref: 7

BOLT

€ 2.00

8

5830128H20
ref: 8

CABLE SET,THROTTLE

€ 92.50

9

5890002J00
ref: 9

CABLE ASSY,HOT STARTER

€ 40.00

10

0940310307
ref: 10

CLAMP

€ 3.00

11

0940710403
ref: 11

CLAMP(L:95)

€ 2.50
