FRAME COVER

RMX450Z 2010 (L0) USA (E03)

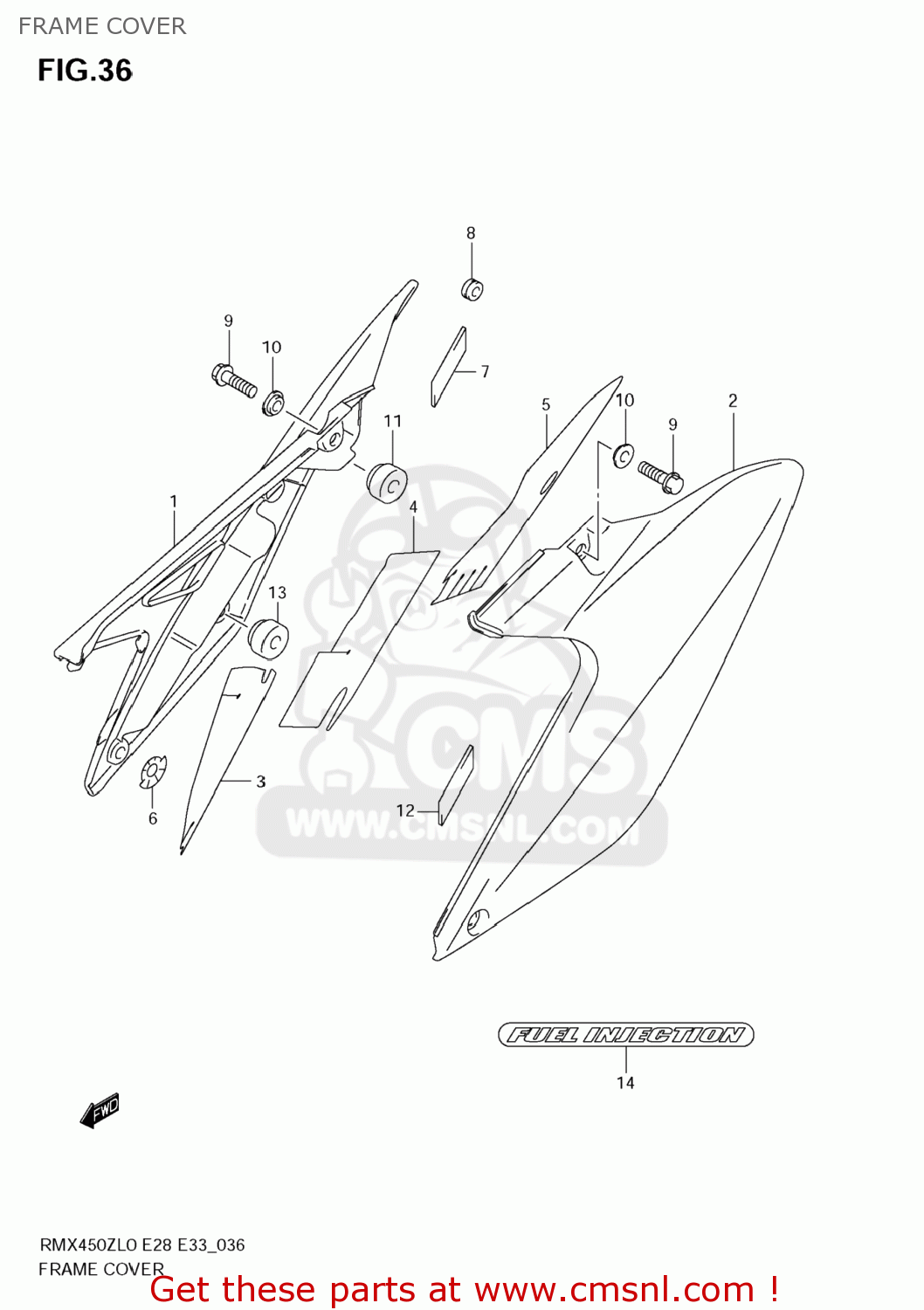

Frame cover diagram RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

4711102J0030H
ref: 1

COVER,FRAME,R(WHITE)

€ 60.00

4721102J0030H
ref: 2

COVER,FRAME,L(WHITE)

€ 60.00

4716602J00
ref: 3

SHIELD,FRAME COVER,R NO.1

€ 11.50

4716702J00
ref: 4

SHIELD,FRAME COVER,R NO.2

€ 15.50

4716802J00
ref: 5

SHIELD,FRAME COVER,R NO.3

€ 15.50

4716902J00
ref: 6

SHIELD,FRAME COVER,R NO.4

€ 6.00

7176265G10
ref: 7

CUSHION

€ 4.50

0932006504
ref: 8

CUSHION

€ 4.00

0154706207
ref: 9

BOLT

€ 2.50

4719102J00
ref: 10

WASHER,FUEL TANK COVER

€ 7.00

4716108G00
ref: 11

CUSHION

€ 5.00

4716129F00
ref: 12

CUSHION,FRAME COVER,L

€ 3.00

0932110040
ref: 13

CUSHION

€ 12.00

6813128H00FTY
ref: 14

EMBLEM,FRAME COVER

€ 8.00
