HEADLAMP

RMX450Z 2010 (L0) USA (E03)

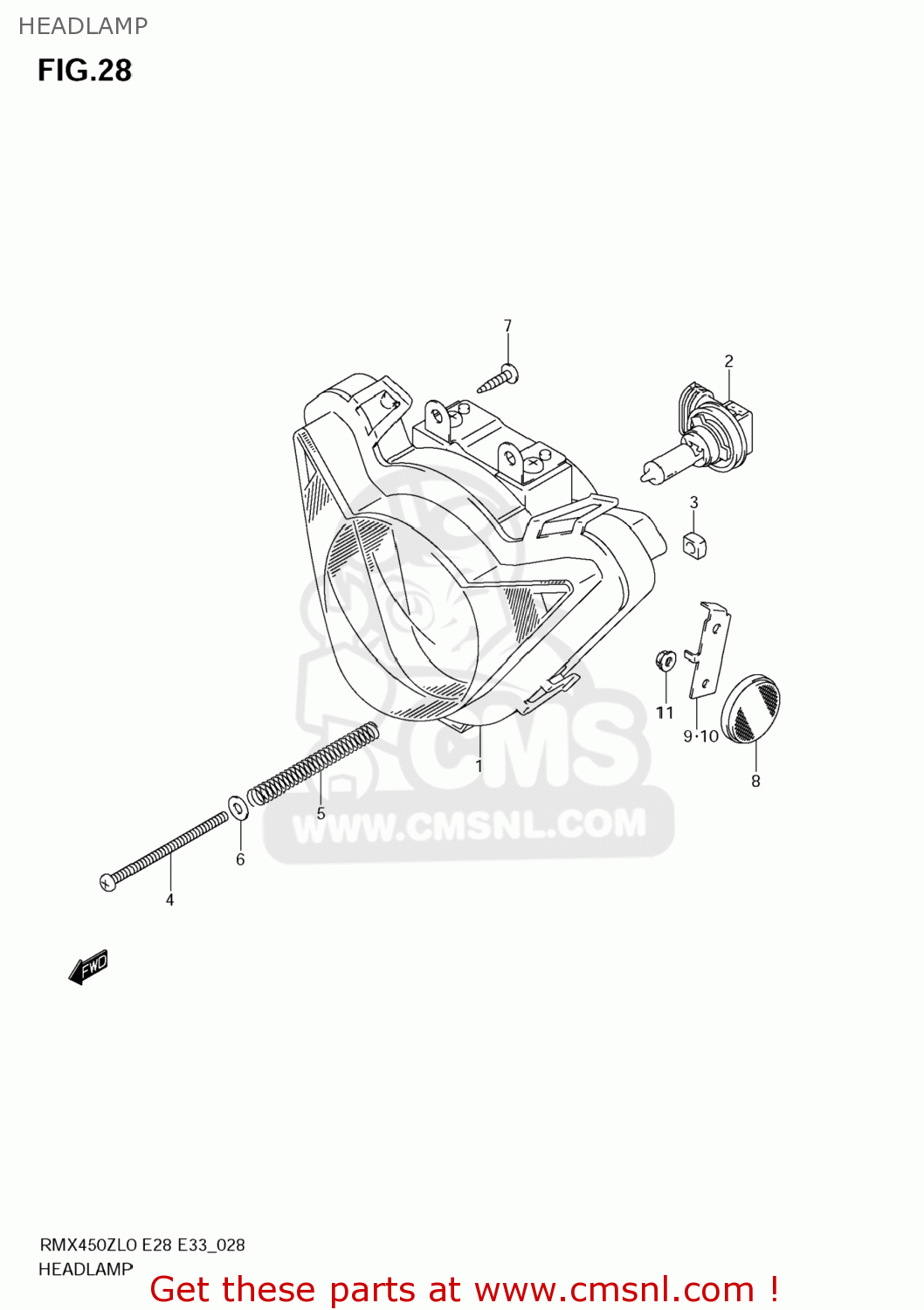

Headlamp diagram RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

HEADLAMP ASSY

€ 201.50

0947112211
ref: 2

BULB(12V35W,H8)

€ 24.50

3515202J00
ref: 3

NUT,HEADLAMP

€ 2.50

3515102J00
ref: 4

SCREW,HEADLAMP ADJUSTER

€ 4.00

3515402J00
ref: 5

SPRING,HEADLAMP ADJUST

€ 4.50

083220104A
ref: 6

WASHER

€ 5.00

035410516A
ref: 7

SCREW

€ 1.50

3595014A10
ref: 8
35950-14A11

REFLECTOR,REFLEX

€ 11.00

3595602J00
ref: 9

BRACKET,FR SIDE RR,R

€ 6.50

3595702J00
ref: 10

BRACKET,FR SIDE RR,L

€ 6.50

083161005B
ref: 11

NUT

€ 2.50

all assemblies
