REAR COMBINATION LAMP (E33)

RMX450Z 2010 (L0) USA (E03)

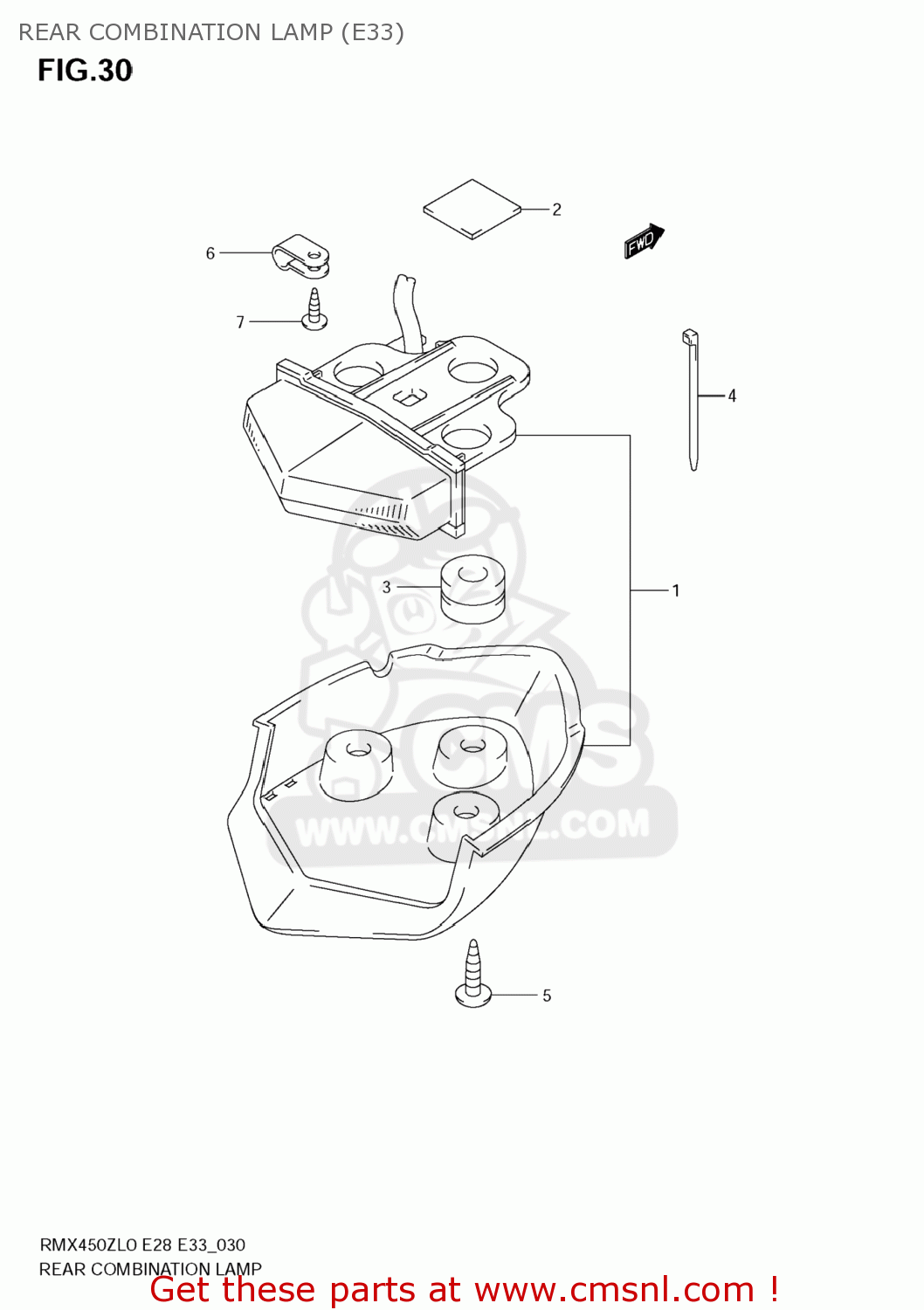

Rear combination lamp (e33) diagram RMX450Z 2010 (L0) USA (E03)

REAR COMBINATION LAMP (E33) RMX450Z 2010 (L0) USA (E03)

REAR COMBINATION LAMP (E33) RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571002J00
ref: 1

A/LICHT UNIT.OR

€ 109.50

2

3365213G00
ref: 2

PROTECTOR,BATTERY(30X40X1.0)

€ 5.00

3

0932009010
ref: 3

CUSHION

€ 2.50

4

0940714407
ref: 4

CLAMP(L:145)

€ 4.00

5

035410516A
ref: 5

SCREW

€ 1.50

6

0940306408
ref: 6

CLAMP

€ 2.50

7

035410410A
ref: 7

SCREW

€ 1.50
