TRANSMISSION
RMX450Z 2010 (L0) USA (E03)

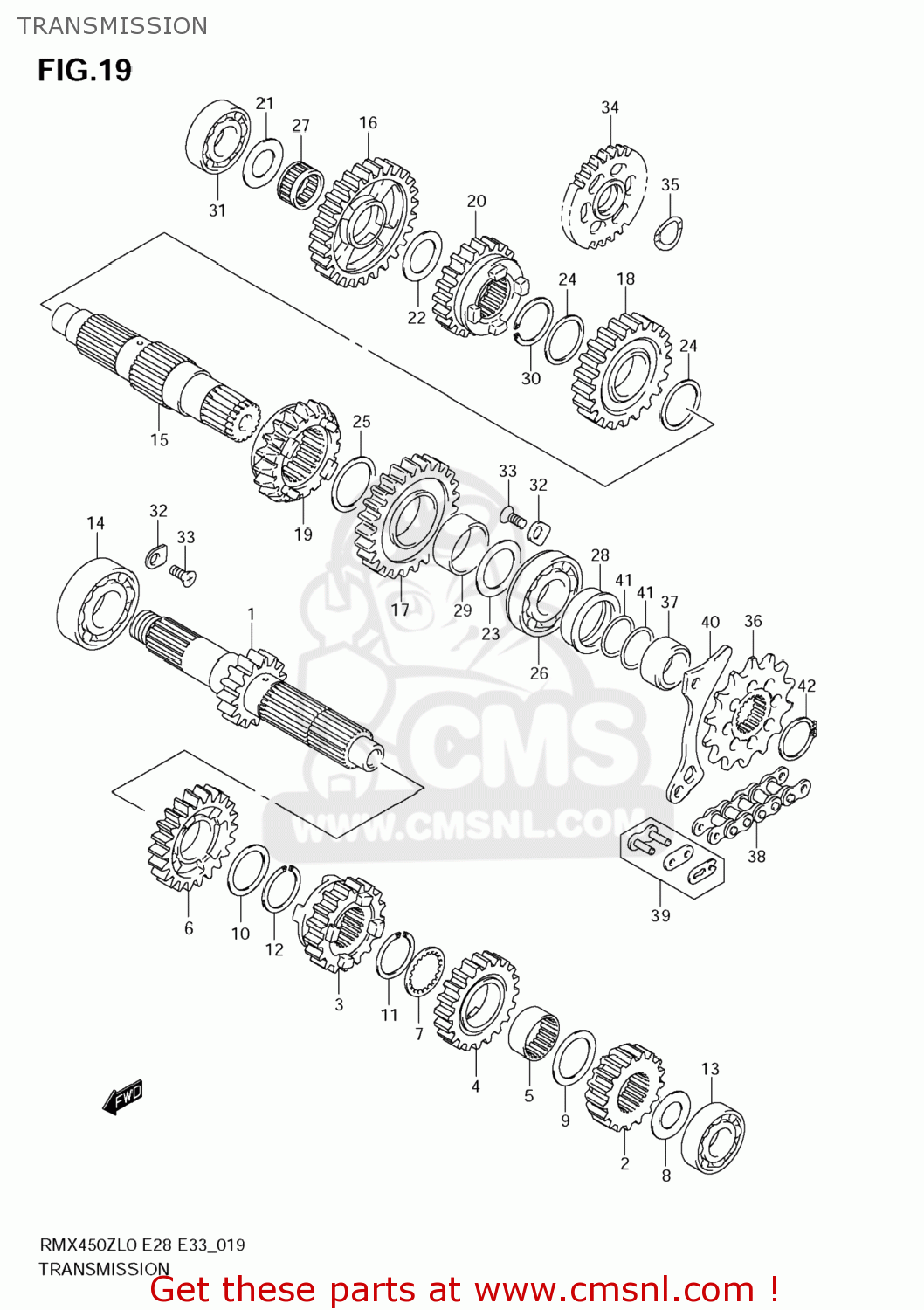

Transmission diagram RMX450Z 2010 (L0) USA (E03)
TRANSMISSION RMX450Z 2010 (L0) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412002J00
ref: 1
SHAFT,COUNTER
€ 192.00
2
2422102J00
ref: 2
GEAR,2ND DRIVE
€ 84.50
3
2423102J00
ref: 3
GEAR,3RD DRIVE
€ 92.00
4
2424102J00
ref: 4
GEAR,4TH DRIVE
€ 77.50
5
2424237F00
ref: 5
BUSH,4TH DRIVE GEAR
€ 18.50
6
2425102J00
ref: 6
GEAR,5TH DRIVE
€ 76.50
7
0916725026
ref: 7
WASHER,LOCK
€ 3.00
8
0918117223
ref: 8
SHIM(17X30X1)
€ 3.00
9
0918125167
ref: 9
SHIM(25X34X1)
€ 3.50
10
0918125111
ref: 10
SHIM(25X30X1)
€ 2.00
11
0938025010
ref: 11
CIRCLIP
€ 3.00
12
0938025010
ref: 12
CIRCLIP
€ 3.00
13
0812362030
ref: 13
BEARING
€ 24.50
14
0814362057
ref: 14
BEARING
€ 24.50
15
2413128H00
ref: 15
SHAFT,DRIVE
€ 147.50
16
2431102J00
ref: 16
GEAR,1ST DRIVEN
€ 85.00
17
2432102J00
ref: 17
GEAR,2ND DRIVEN
€ 85.00
18
2433102J00
ref: 18
GEAR,3RD DRIVEN
€ 85.50
19
2434102J00
ref: 19
GEAR,4TH DRIVEN
€ 103.00
20
2435102J00
ref: 20
GEAR,5TH DRIVEN
€ 92.50
21
0918117223
ref: 21
SHIM(17X30X1)
€ 3.00
22
0918120195
ref: 22
SHIM(20X30X1)
€ 3.00
23
0918124005
ref: 23
SHIM(24X34X1)
€ 3.50
24
0918125111
ref: 24
SHIM(25X30X1)
€ 2.00
25
0918127015
ref: 25
SHIM(27X33X1)
€ 3.00
26
0926224001
ref: 26
BEARING(24X56X14)
€ 49.50
27
0926320107
ref: 27
BEARING(20X24X10)
€ 12.50
28
0928931003
ref: 28
SEAL,OIL(31X40X6.7)
€ 11.00
29
0930027005
ref: 29
BUSH(27X31X13)
€ 13.00
30
0938025010
ref: 30
CIRCLIP
€ 3.00
31
0812362030
ref: 31
BEARING
€ 24.50
32
2474120A00
ref: 32
RETAINER,COUNTER BEARING,R
€ 2.00
33
0912606011
ref: 33
SCREW(6X12)
€ 2.00
34
2626035G00
ref: 34
GEAR,KICK STARTER IDLE
€ 156.50
35
2626428H00
ref: 35
WASHER,KICK IDLE
€ 4.50
36-1
2751135G30
ref: 36-1
SPROCKET,ENGINE(NT:13)
€ 25.00
36-2
2751135G20
ref: 36-2
SPROCKET,ENGINE(NT:14)
€ 25.00
37
2753135G01
ref: 37
SPACER,ENGINE SPROCKET
€ 12.50
38
2760002J00114
ref: 38
CHAIN,DRIVE
€ 169.50
39
2762002J00
ref: 39
JOINT SET,CHAIN
€ 12.00
40
2764102J00
ref: 40
PLATE,FR CHAIN GUIDE
€ 6.50
41
0928021010
ref: 41
O RING(D:1.9,ID:21.8)
€ 2.50
42
083313124A
ref: 42
CIRCLIP
€ 2.50
