REAR COMBINATION LAMP (E28)

RMX450Z 2010 (L0) USA (E03)

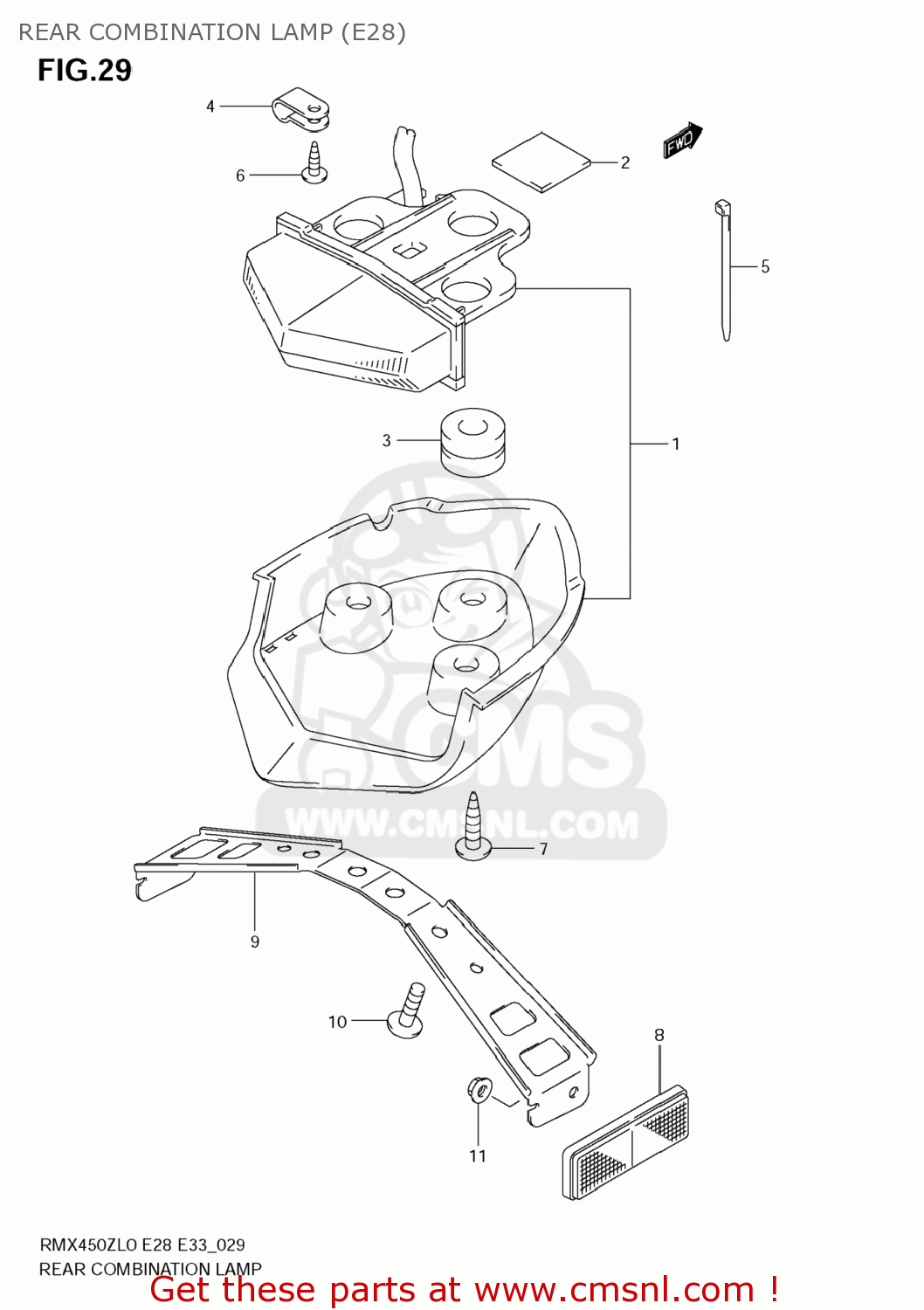

Rear combination lamp (e28) diagram RMX450Z 2010 (L0) USA (E03)

REAR COMBINATION LAMP (E28) RMX450Z 2010 (L0) USA (E03)

REAR COMBINATION LAMP (E28) RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571002J10
ref: 1

LAMP ASSY,TAIL

€ 178.50

2

3365213G00
ref: 2

PROTECTOR,BATTERY(30X40X1.0)

€ 5.00

3

0932009010
ref: 3

CUSHION

€ 2.50

4

0940306408
ref: 4

CLAMP

€ 2.50

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00

6

035410410A
ref: 6

SCREW

€ 1.50

7

035410516A
ref: 7

SCREW

€ 1.50

8

3597007F01
ref: 8

REFLECTOR ASSY,RR

€ 20.50

9

3597402J00
ref: 9

BRACKET,RR SIDE RR

€ 11.00

10

021420512A
ref: 10

SCREW

€ 1.50

11

083161005A
ref: 11

NUT

€ 2.50
