FOOTREST

RMX450Z 2010 (L0) USA (E03)

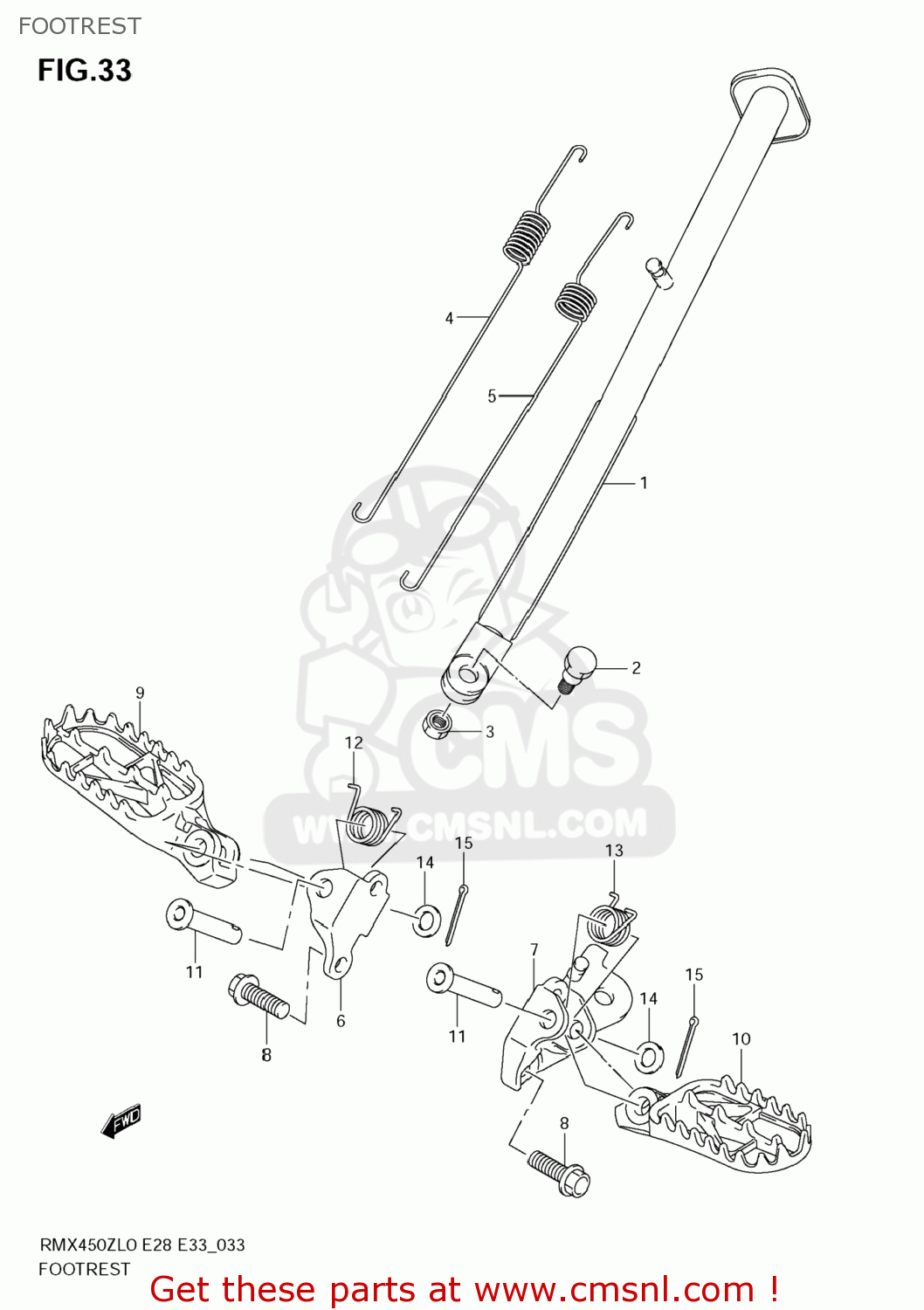

Footrest diagram RMX450Z 2010 (L0) USA (E03)

FOOTREST RMX450Z 2010 (L0) USA (E03)

FOOTREST RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231002J00
ref: 1

STAND,PROP

€ 275.00

2

0911110060
ref: 2

BOLT(10X33)

€ 3.50

3

4232103FK0
ref: 3

NUT,PROP STAND

€ 4.50

4

4242102J00
ref: 4

SPRING,PROP STAND

€ 10.50

5

4242202J00
ref: 5

SPRING,PROP STAND OUTER

€ 10.00

6

4185528H10
ref: 6

BRACKET,FOOTREST,R

€ 62.50

7

4186502J00
ref: 7

BRACKET,FOOTREST,L

€ 168.50

8

0910310435
ref: 8

BOLT(10X25)

€ 1.50

9

4355128H10
ref: 9

FOOTREST,R

€ 157.00

10

4356128H10
ref: 10

FOOTREST,L

€ 75.50

11

0920010019
ref: 11

PIN(10X41.5)

€ 6.00

12

0944821012
ref: 12

SPRING

€ 12.50

13

0944821014
ref: 13

SPRING

€ 15.00

14

0916010121
ref: 14

WASHER(10.5X18X1)

€ 2.00

15

041112520A
ref: 15

PIN

€ 2.00
