FUEL PUMP

RMX450Z 2010 (L0) USA (E03)

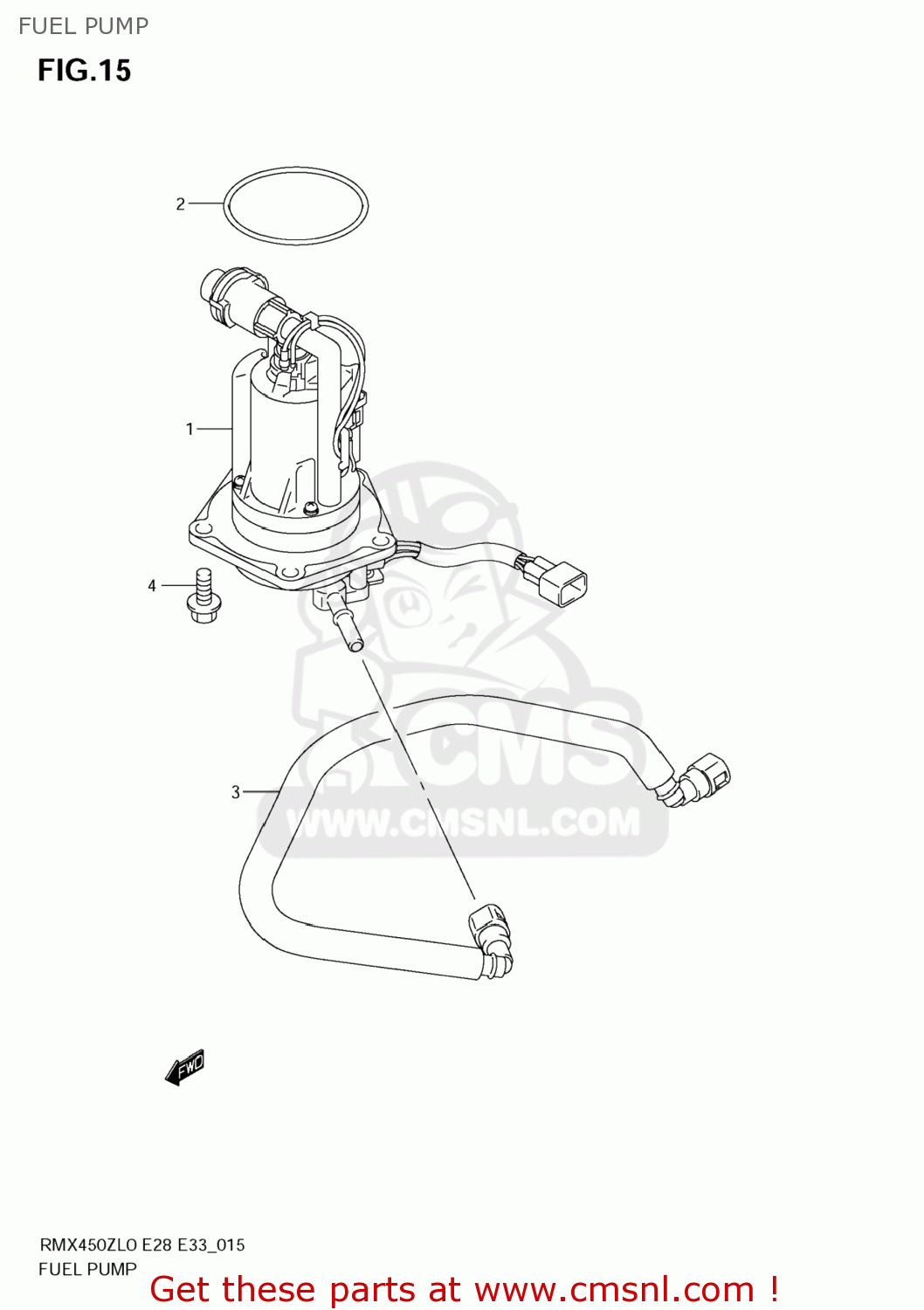

Fuel pump diagram RMX450Z 2010 (L0) USA (E03)

FUEL PUMP RMX450Z 2010 (L0) USA (E03)

FUEL PUMP RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1510002J00
ref: 1

PUMP ASSY,FUEL

€ 504.00

2

1511128H00
ref: 2

O RING

€ 13.00

3

1581028H00
ref: 3

HOSE,FUEL

€ 61.50

4

0154706207
ref: 4

BOLT

€ 2.50
