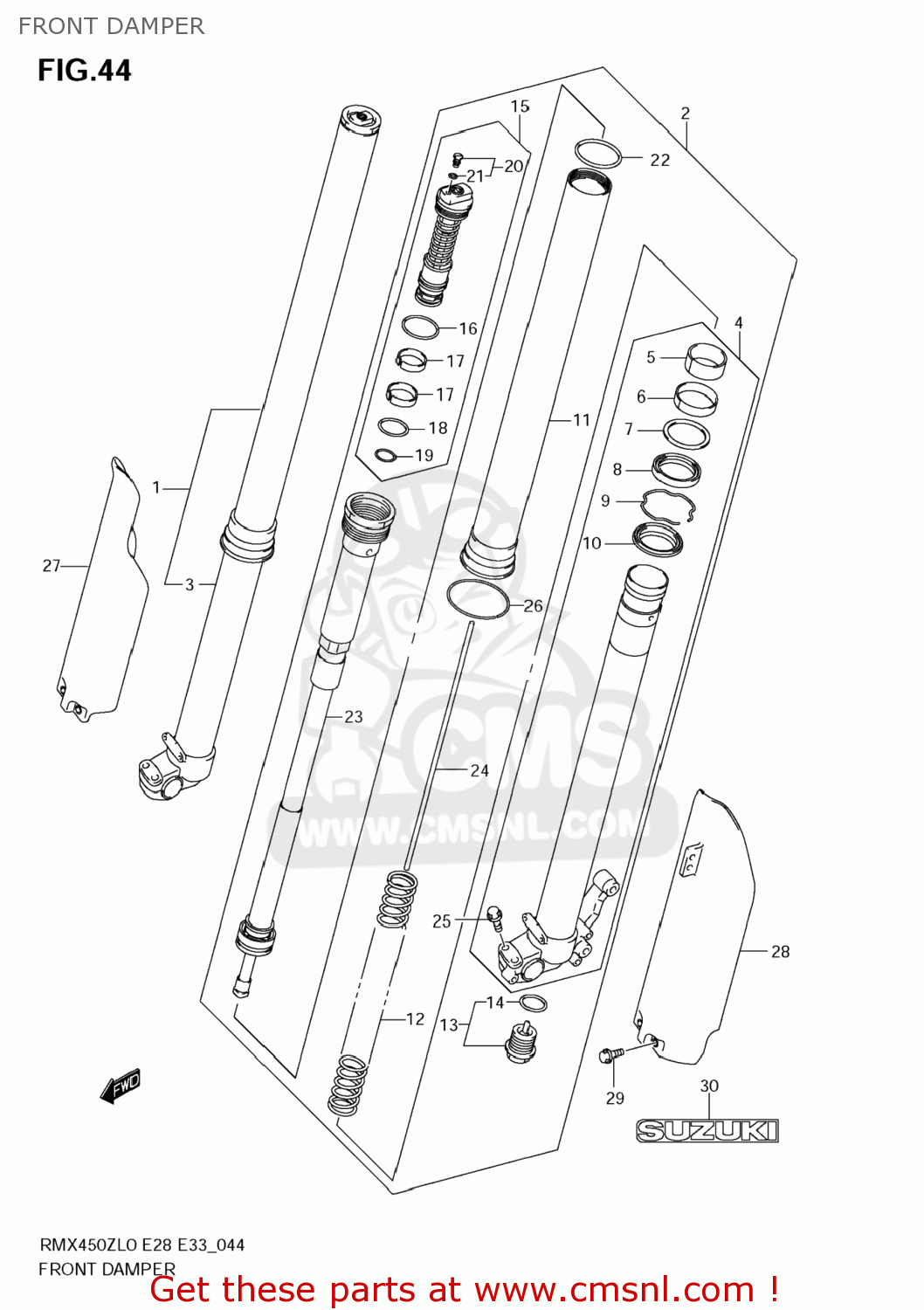

FRONT DAMPER

ref

part #

description

quantity

1

5110302J00
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,181.00

2

5110402J00
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,181.00

3

5111028H10
ref: 3

TUBE,INNER,R

€ 327.50

4

5112028H10
ref: 4

TUBE,INNER,L

€ 327.50

5

5112128H10
ref: 5

BUSH

€ 11.50

6

5116728H10
ref: 6

BUSH,GUIDE

€ 18.50

7

5115836F00
ref: 7

SPACER,SEAL

€ 5.00

8

5115337F80
ref: 8

SEAL,OIL

€ 13.50

9

5115627C40
ref: 9

RING,OIL SEAL STOPPER

€ 3.50

10

5117337F80
ref: 10

SEAL,DUST

€ 16.50

11

5113028H00
ref: 11

TUBE,OUTER

€ 727.50

12-1

5117128H00
ref: 12-1

SPRING,FR(K=0.47)

€ 112.00

12-2

5117128H10
ref: 12-2

SPRING,FR(K=0.45)

€ 112.00

12-3

5117128H20
ref: 12-3

SPRING,FR(K=0.49)

€ 112.00

13

5117037FC0
ref: 13

BOLT,CTR

€ 139.50

14

5117736E20
ref: 14

O RING

€ 2.50

15

5135102J00
ref: 15

BOLT,FORK

€ 206.50

16

5111737F80
ref: 16

O RING

€ 3.50

17

5112328H10
ref: 17

BUSH

€ 18.00

18

5117436E40
ref: 18

O RING

€ 2.50

19

5117537F80
ref: 19

O RING

€ 3.50

20

5135736F20
ref: 20

BOLT,PLUG

€ 8.00

21

5135828E30
ref: 21

O RING,PLUG

€ 2.50

22

5111837F80
ref: 22

O RING

€ 4.00

23

5119002J00
ref: 23

ROD,DAMPER

€ 596.50

24

5119110H10
ref: 24

ROD,PUSH

€ 13.50

25

5132837F80
ref: 25

BOLT

€ 5.00

26

5121137FC0
ref: 26

STOPPER,RING

€ 5.00

27

5150128H10
ref: 27

PROTECTOR,FR FORK,R

€ 74.00

28

5151128H00
ref: 28

PROTECTOR,FR FORK,L

€ 83.50

29

0911106098
ref: 29

BOLT(6X10)

€ 2.00

30

6866129F00DPZ
ref: 30

EMBLEM,SUZUKI

€ 25.00

all assemblies
