CRANKCASE
RMX450Z 2010 (L0) USA (E03)

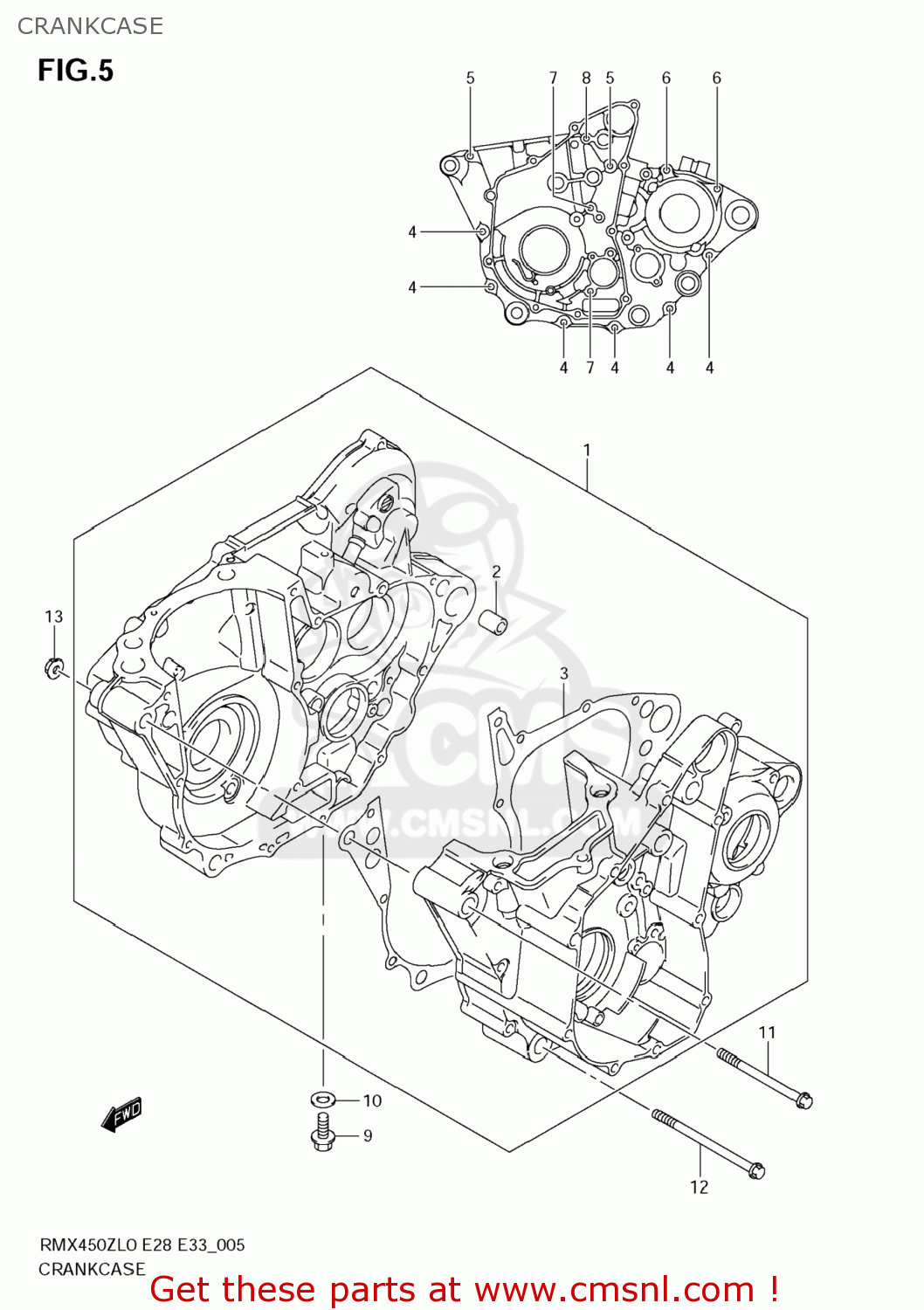

Crankcase diagram RMX450Z 2010 (L0) USA (E03)
CRANKCASE RMX450Z 2010 (L0) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130202810
ref: 1
CRANKCASE SET
€ 789.50
2
0920613020
ref: 2
PIN(10.4X13X18)
€ 2.50
3
1148102J00
ref: 3
GASKET,CRANKCASE (NAS)
€ 16.50
4
015470655A
ref: 4
BOLT
€ 2.50
5
015470665A
ref: 5
BOLT
€ 2.50
6
015470675A
ref: 6
BOLT
€ 2.00
7
015470680A
ref: 7
BOLT
€ 2.00
8
015470690A
ref: 8
BOLT
€ 2.00
9
0910308393
ref: 9
BOLT(8X20)
€ 2.00
10
0916808016
ref: 10
GASKET(8.2X14X1) (NAS)
€ 1.00
11
0910310388
ref: 11
BOLT(10X120)
€ 5.50
12
0910310399
ref: 12
BOLT(10X125)
€ 7.00
13
0915910115
ref: 13
NUT
€ 4.00
