HEADLAMP COVER

RMX450Z 2010 (L0) USA (E03)

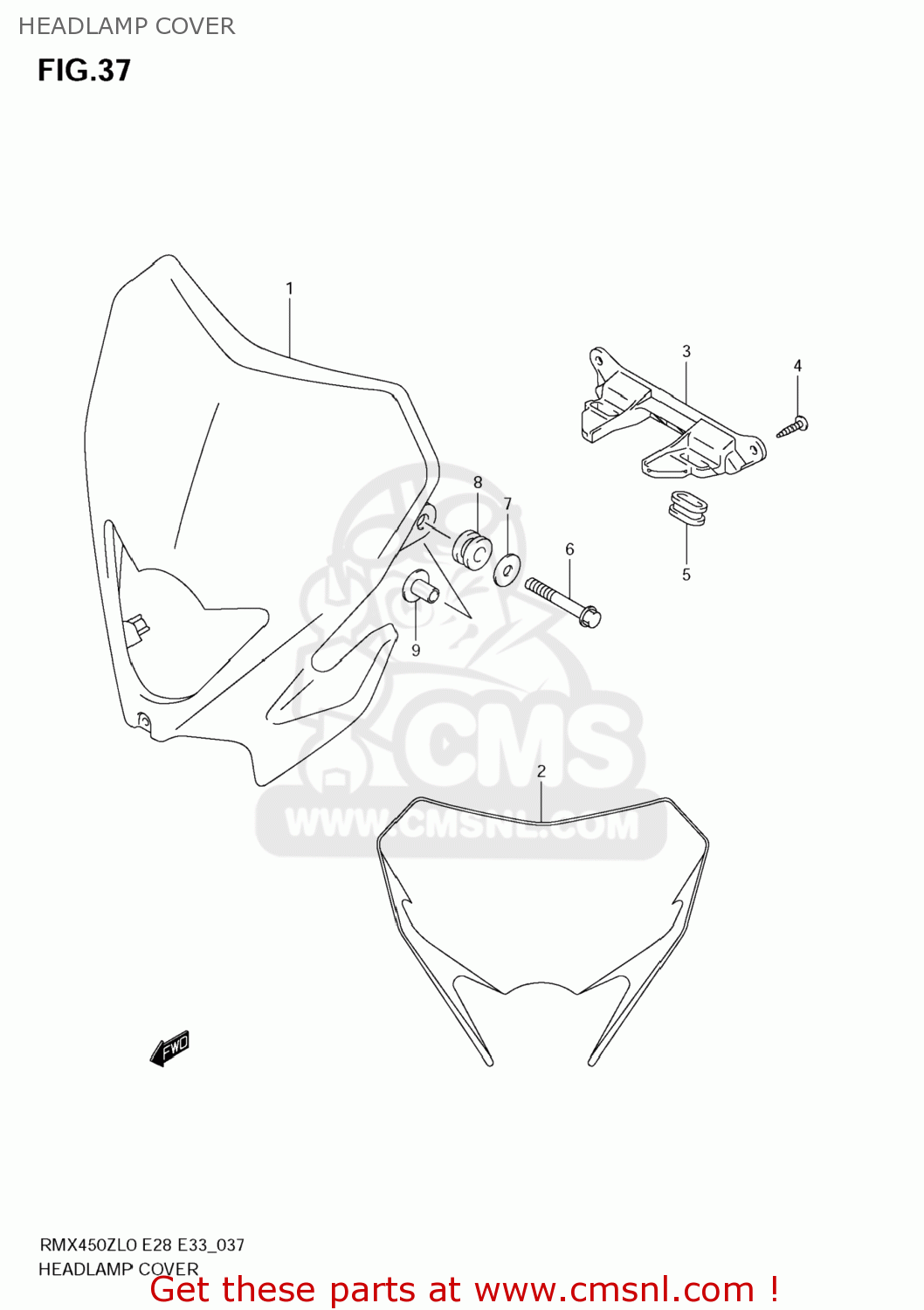

Headlamp cover diagram RMX450Z 2010 (L0) USA (E03)

HEADLAMP COVER RMX450Z 2010 (L0) USA (E03)

HEADLAMP COVER RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181102J00YU1
ref: 1

COVER,HEADLAMP

€ 34.00

2

6872502J00HBR
ref: 2

TAPE,HEADLAMP COVER

€ 94.00

3

5182102J00
ref: 3

COVER,HEADLAMP LWR

€ 11.00

4

035410516A
ref: 4

SCREW

€ 1.50

5

5183102J00
ref: 5

CUSHION,HEADLAMP COVER

€ 5.00

6

0910306250
ref: 6

BOLT(6X25)

€ 2.50

7

0916006084
ref: 7

WASHER(6.5X18X1.6)

€ 2.00

8

0932009501
ref: 8

CUSHION

€ 2.00

9

0916906062
ref: 9

WASHER

€ 3.00
