MAGNETO

RMX450Z 2010 (L0) USA (E03)

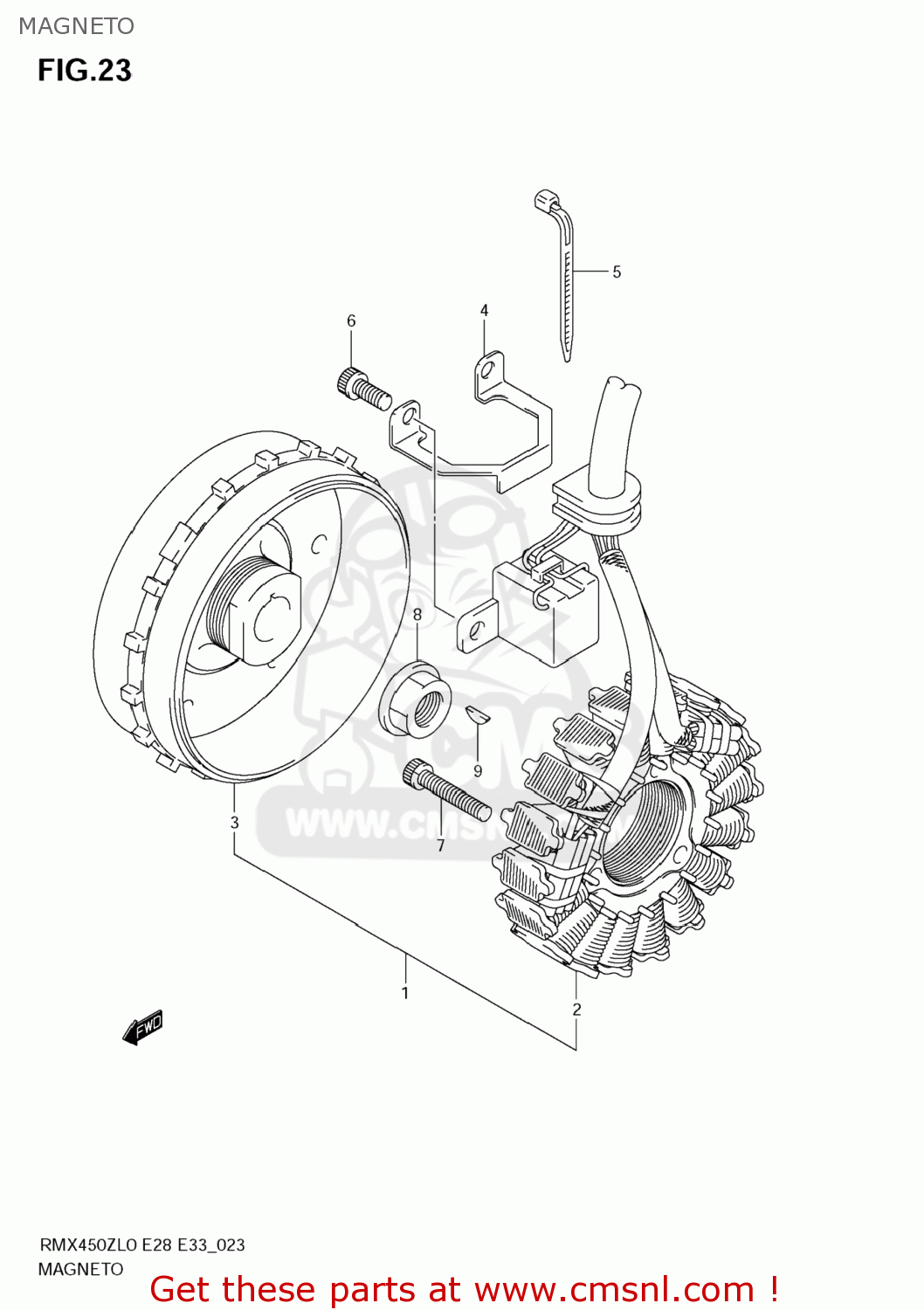

Magneto diagram RMX450Z 2010 (L0) USA (E03)

MAGNETO RMX450Z 2010 (L0) USA (E03)

MAGNETO RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210002J00
ref: 1

MAGNETO ASSY

€ 768.50

2

3210102J00
ref: 2

STARTER ASSY

€ 435.00

3

3210202J00
ref: 3

ROTOR ASSY

€ 381.00

4

3237102J00
ref: 4

CLAMP,MAGNETO LEAD

€ 7.00

5

0940718402
ref: 5

CLAMP(L:165)

€ 2.50

6

071300512A
ref: 6

BOLT

€ 2.50

7

071300525A
ref: 7

BOLT

€ 1.50

8

083161012B
ref: 8

NUT

€ 2.00

9

0834131039
ref: 9

KEY

€ 2.00
