STARTING MOTOR

RMX450Z 2010 (L0) USA (E03)

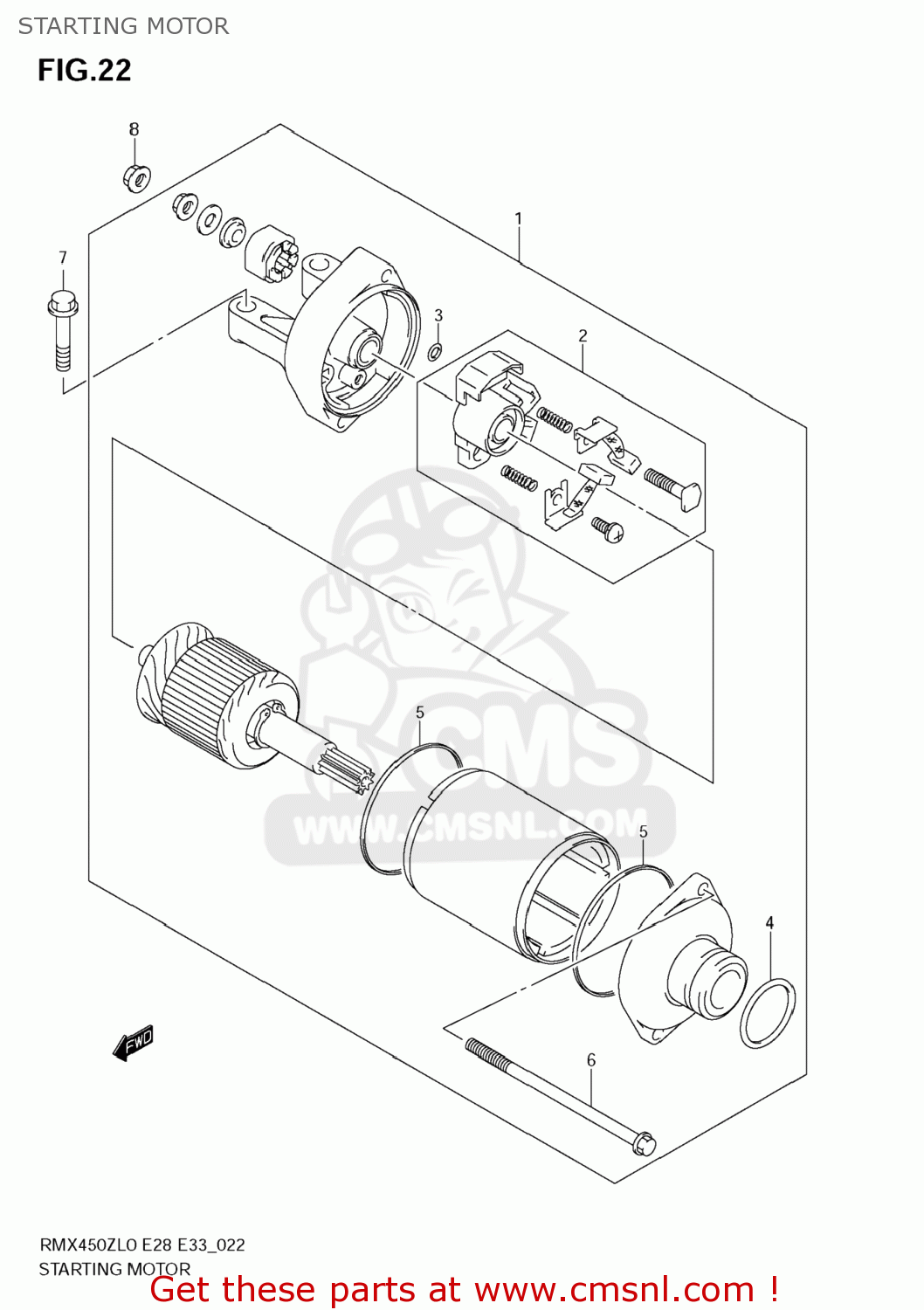

Starting motor diagram RMX450Z 2010 (L0) USA (E03)

STARTING MOTOR RMX450Z 2010 (L0) USA (E03)

STARTING MOTOR RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110002J10
ref: 1

MOTOR ASSY,STARTING

€ 437.00

2

3113238F10
ref: 2

BRUSH HOLDER SET

€ 34.50

3

3114349040
ref: 3

O RING

€ 3.00

4

3115698E00
ref: 4

O RING

€ 3.00

5

3126438F10
ref: 5

SQUARE RING

€ 4.00

6

3128038F10
ref: 6

BOLT

€ 10.00

7

0910306212
ref: 7

BOLT(6X25)

€ 2.50

8

083613506A
ref: 8

NUT

€ 2.00
