FRONT MASTER CYLINDER

RMX450Z 2010 (L0) USA (E03)

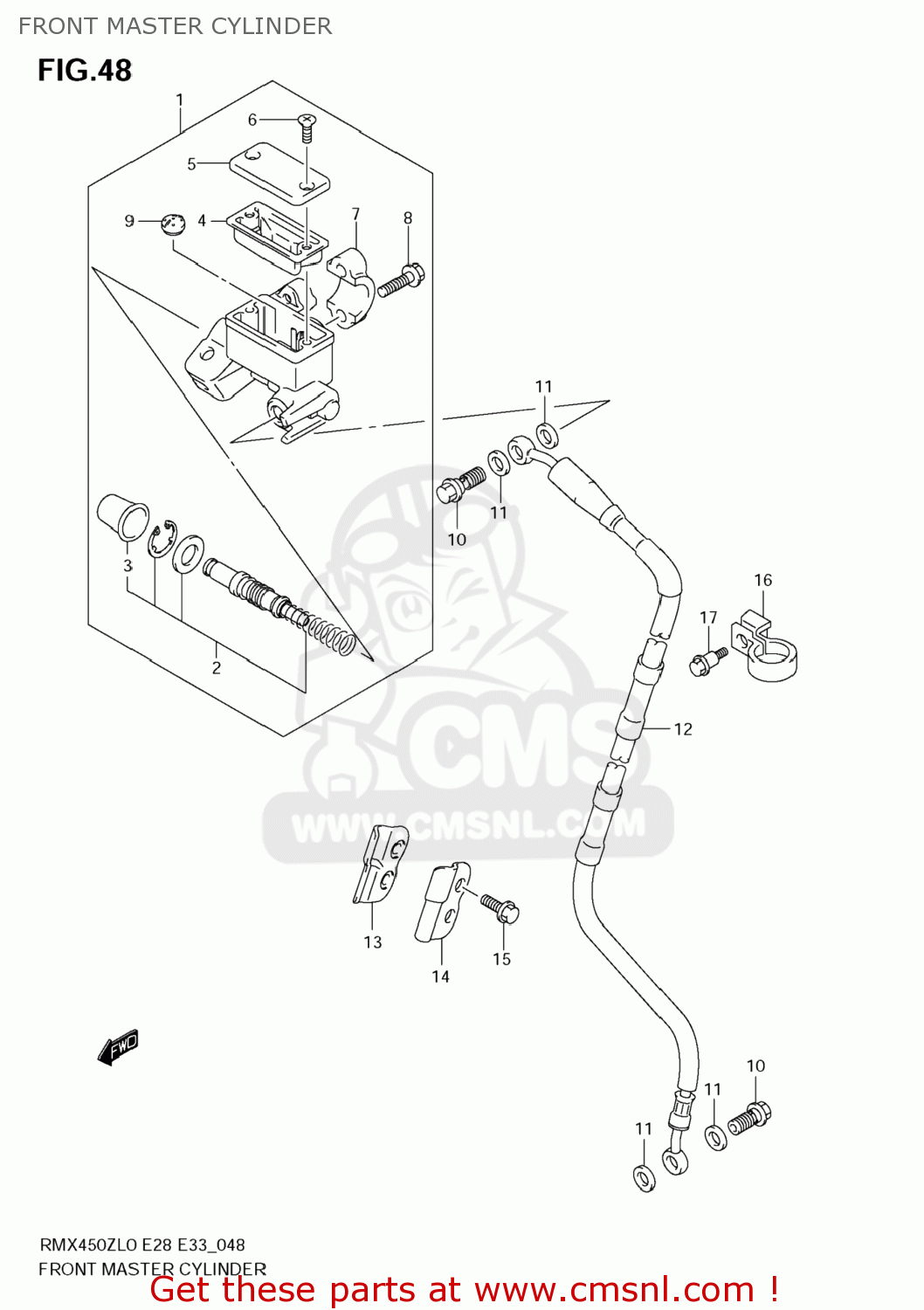

Front master cylinder diagram RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960037F00
ref: 1

CYLINDER ASSY,FR MASTER

€ 166.00

5960037810
ref: 2

PISTON & CUP SET

€ 35.50

5966644300
ref: 3

BOOT

€ 6.00

5966714500
ref: 4

DIAPHRAGM

€ 6.50

5966927C01
ref: 5

CAP

€ 10.00

6968949300
ref: 6

SCREW

€ 1.50

5967127C00
ref: 7

HOLDER

€ 9.50

5967506F00
ref: 8

BOLT

€ 2.50

5974836E00
ref: 9

SEPARATOR

€ 5.00

0936010065
ref: 10

BOLT UNION

€ 5.50

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

5948002J00
ref: 12

HOSE,FR BRAKE

€ 193.50

5926028H10
ref: 13

CLAMP,FR BRAKE HOSE

€ 19.50

5927128H10
ref: 14

CLAMP,FR BRAKE HOSE

€ 6.50

0910306234
ref: 15

BOLT(6X16)

€ 2.50

5862129F00
ref: 16

GUIDE,FR BRAKE HOSE

€ 9.50

0911106087
ref: 17

BOLT(6X20.5)

€ 2.50
