CYLINDER

RMX450Z 2010 (L0) USA (E03)

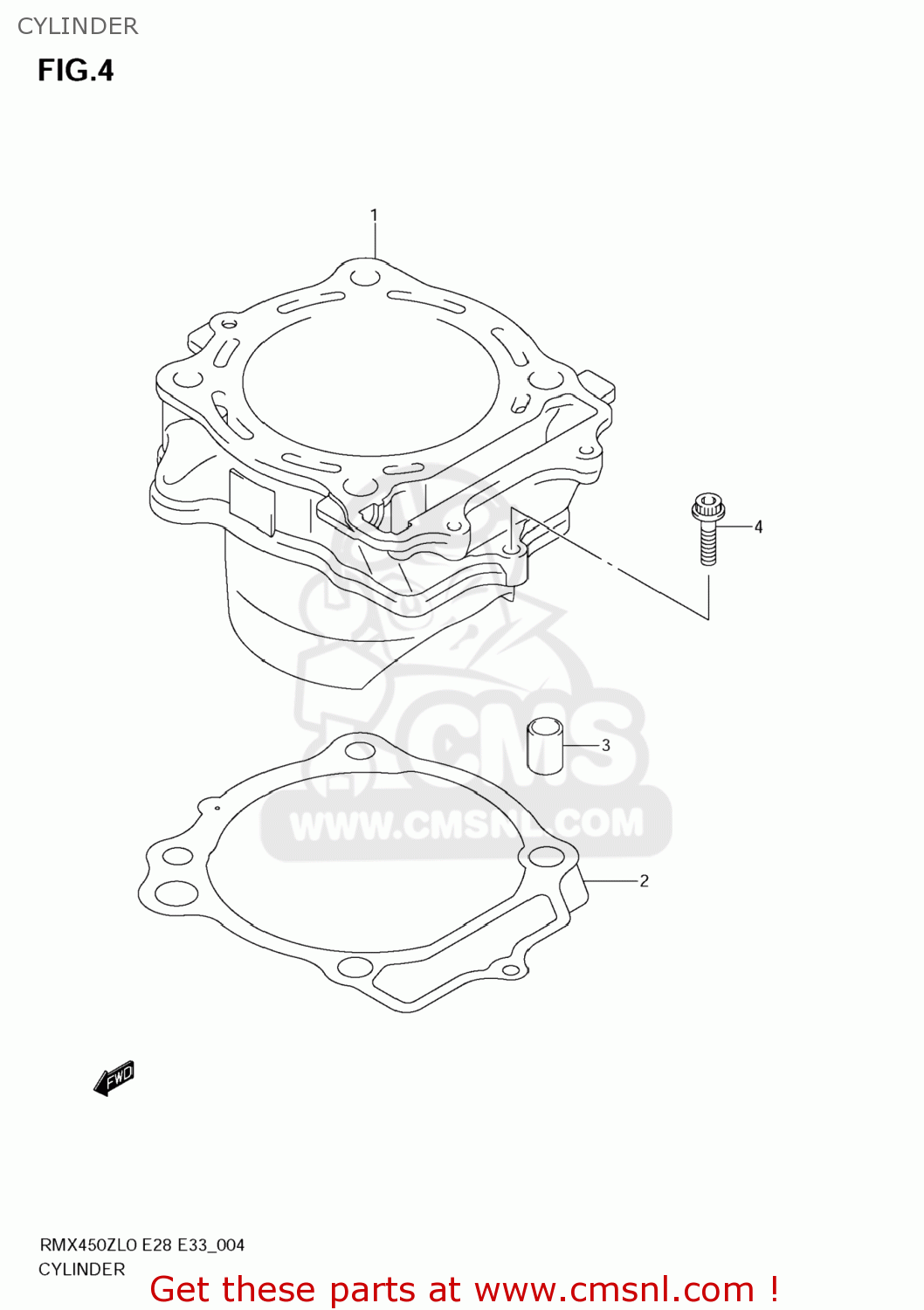

Cylinder diagram RMX450Z 2010 (L0) USA (E03)

CYLINDER RMX450Z 2010 (L0) USA (E03)

CYLINDER RMX450Z 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121102J000F0
ref: 1

CYLINDER

€ 557.00

2

1124128H10
ref: 2

GASKET,CYLINDER (NAS)

€ 16.00

3

0421113189
ref: 3

PIN

€ 2.50

4

071200625A
ref: 4

BOLT

€ 2.50
