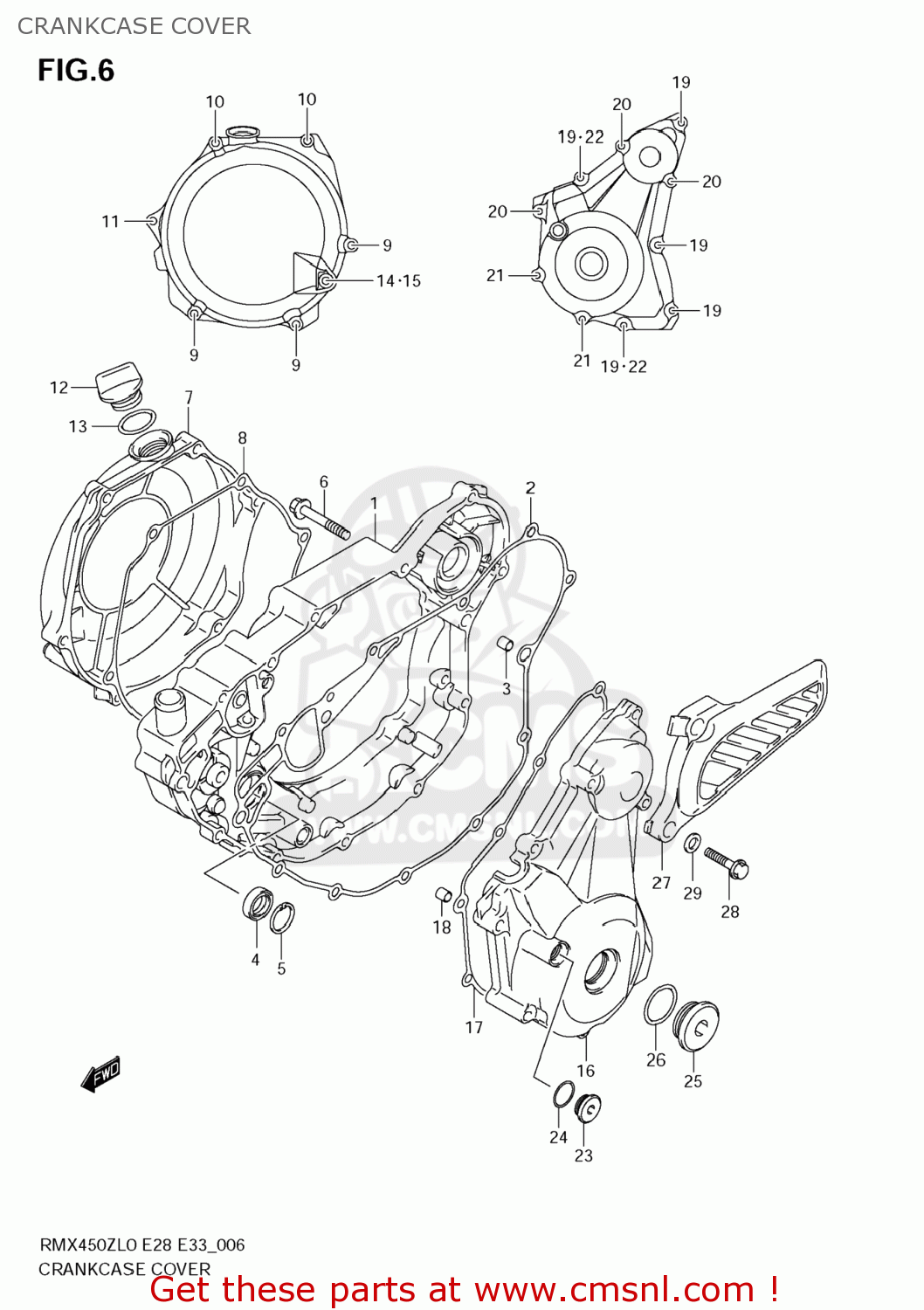

CRANKCASE COVER

ref

part #

description

quantity

1

1134028H00
ref: 1

COVER,CLUTCH

€ 158.50

2

1148228H00
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 14.00

3

0421109149
ref: 3

PIN

€ 2.00

4

0928212012
ref: 4

SEAL,OIL(12X22X6)

€ 12.00

5

083314124A
ref: 5
08331-41249

CIRCLIP

€ 2.50

6

015470625A
ref: 6

BOLT

€ 2.50

7

1137102J00
ref: 7

COVER,CLUTCH OUTER

€ 93.00

8

1148428H00
ref: 8

GASKET,CLUTCH COVER OUTER (NAS)

€ 10.00

9

015470625A
ref: 9

BOLT

€ 2.50

10

015470665A
ref: 10

BOLT

€ 2.50

11

015470670A
ref: 11

BOLT

€ 2.50

12

0925920008
ref: 12
09259-20008-XC0

PLUG

€ 6.50

13

0928017003
ref: 13

O RING(D:3.1,ID:16.8)

€ 2.00

14

0913906055
ref: 14

SCREW(6X10)

€ 2.50

15

0916806004
ref: 15

GASKET(6.2X11X1).2 (NAS)

€ 1.50

16

1135102J00
ref: 16

COVER,MAGNETO

€ 208.50

17

1148302J00
ref: 17

GASKET,MAGNETO COVER (NAS)

€ 12.00

18

0421109149
ref: 18

PIN

€ 2.00

19

015470625A
ref: 19

BOLT

€ 2.50

20

015470640A
ref: 20

BOLT

€ 2.50

21

015470650A
ref: 21

BOLT

€ 2.50

22

0916806023
ref: 22

GASKET(5.8X13X1.2) (NAS)

€ 2.00

23

0924812007
ref: 23

PLUG(12X9)

€ 6.50

24

0928010016
ref: 24

O RING(D:1.9,ID:9.8)

€ 3.50

25

0925926011
ref: 25

PLUG(26X9)

€ 8.50

26

0928022008
ref: 26

O RING(D:3.1,ID:22.7)

€ 2.50

27

1136002J00
ref: 27

COVER,ENGINE SPROCKET

€ 121.50

28

0910306297
ref: 28

BOLT(6X30)

€ 2.00

29

083220106B
ref: 29

WASHER

€ 2.00
