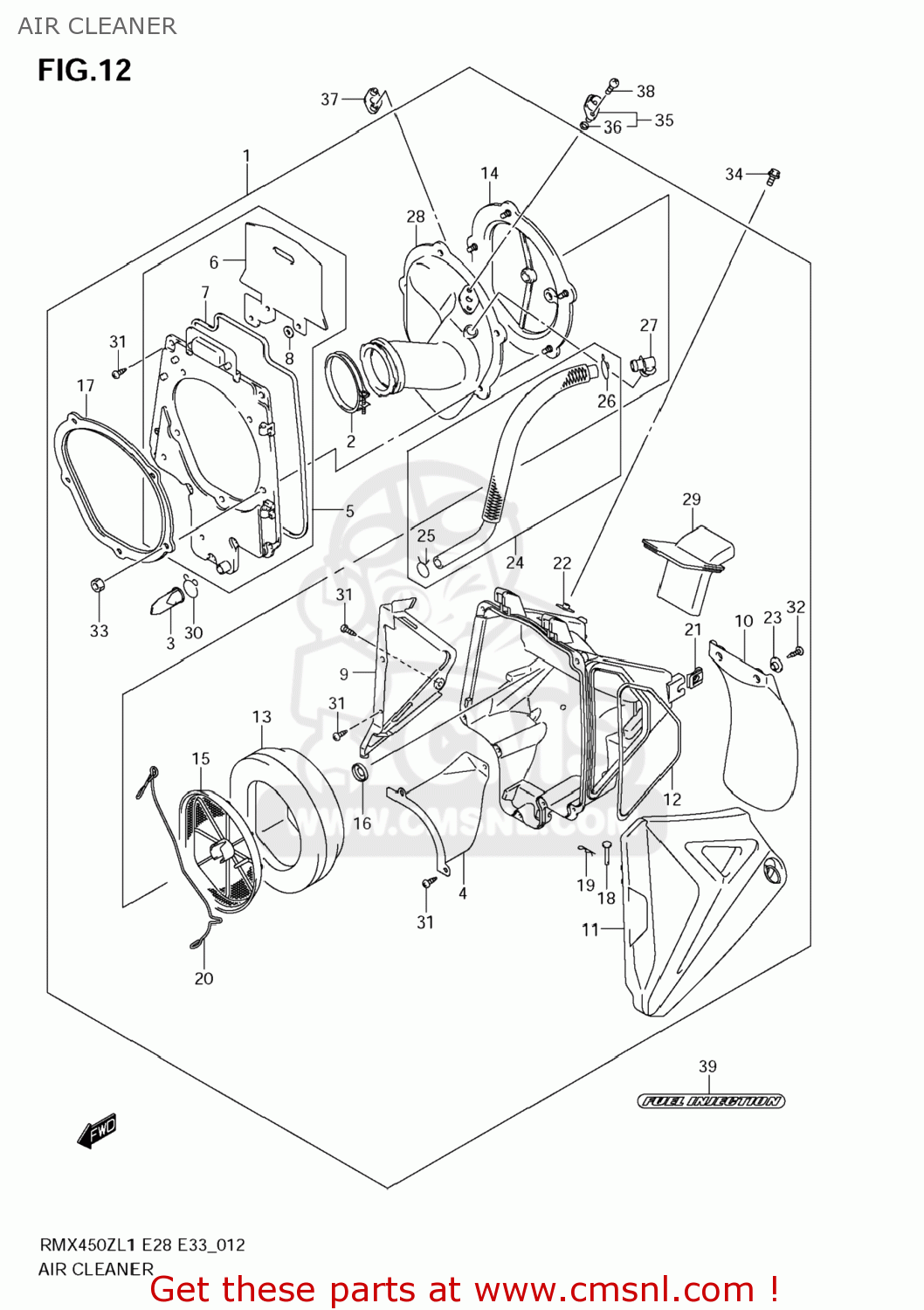

AIR CLEANER

ref

part #

description

quantity

1

1370002J0130H
ref: 1

CLEANER ASSY,AIR(WHITE)

€ 404.50

2

1317025D01
ref: 2

CLAMP

€ 4.00

3

1368119B00
ref: 3

CAP,DRAIN

€ 3.00

4

1371902J00
ref: 4

PLATE,HEAT GUARD

€ 24.50

5

1372102J00
ref: 5

CASE,AIR CLEANER FR

€ 37.50

6

1374902J00
ref: 6

COVER,AIR CLEANER

€ 16.00

7

1375602J00
ref: 7

GASKET,CASE (NAS)

€ 8.50

8

1383202J00
ref: 8

NUT,PUSH

€ 2.00

9

1372302J00
ref: 9

COVER,SIDE,R

€ 15.00

10

1373836E01
ref: 10

MUDGUARD

€ 18.50

11

1374002J00
ref: 11

CAP,AIR CLEANE

€ 56.00

12

1375702J00
ref: 12

GASKET,CASE (NAS)

€ 7.00

13

1378002J00
ref: 13

FILTER ASSY

€ 45.00

14

1379002J00
ref: 14

BASE,FILTER

€ 26.00

15

1379102J00
ref: 15

HOLDER,FILTER

€ 22.50

16

1379644E00
ref: 16

SPACER

€ 3.00

17

1379702J00
ref: 17

PLATE,FILTER BASE

€ 23.00

18

1382202J00
ref: 18

PIN,HINGE

€ 6.50

19

1382302J00
ref: 19

PIN,SNAP

€ 3.00

20

1382502J00
ref: 20

SPRING

€ 23.00

21

1383502J00
ref: 21

RECEPTACLE

€ 6.50

22

1383612D00
ref: 22

NUT,AIR CLEANER

€ 2.00

23

1383802B00
ref: 23

COLLAR

€ 2.50

24

1385002J00
ref: 24

TUBE,BREATHER

€ 45.50

25

0940113301
ref: 25

CLIP

€ 2.00

26

0940114101
ref: 26

CLIP

€ 2.00

27

1385814D20
ref: 27

JOINT

€ 6.00

28

1388102J00
ref: 28

TUBE,OUTLET

€ 46.50

29

1389102J00
ref: 29

TUBE,INLET

€ 40.00

30

0940117201
ref: 30

CLIP

€ 2.50

31

032110516B
ref: 31

SCREW

€ 1.50

32

035410520B
ref: 32

SCREW

€ 2.50

33

0831000057
ref: 33

NUT

€ 2.50

34

015470612A
ref: 34

BOLT

€ 2.00

35

1365014G11
ref: 35

SENSOR,AIR TEM

€ 34.50

36

1365514G10
ref: 36

O RING

€ 6.00

37

1365228H00
ref: 37

BRACKET,AIR TEMP SENSOR

€ 6.00

38

021120516B
ref: 38

SCREW

€ 2.00

39

6813128H00FTY
ref: 39

EMBLEM,FRAME COVER

€ 8.00

all assemblies
