FRONT CALIPER

RMX450Z 2011 (L1) USA (E03)

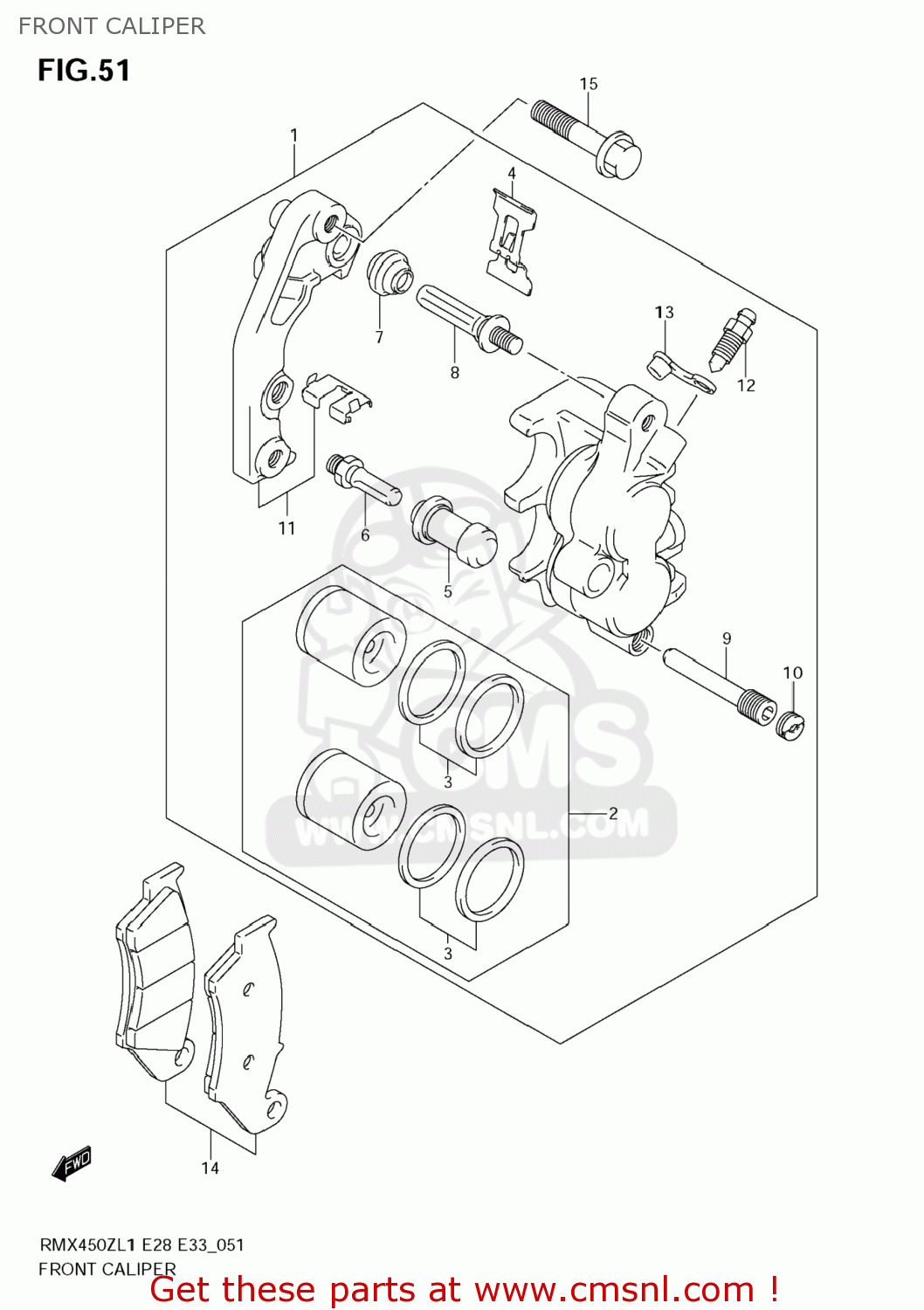

Front caliper diagram RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

5930037F04999
ref: 1

CALIPER ASSY,FR

€ 285.50

5930027840
ref: 2

PISTON SET

€ 44.00

5930013820
ref: 3

SEAL SET,PISTON

€ 34.50

5931513E00
ref: 4

SPRING,PAD

€ 12.00

5938613A00
ref: 5

BOOT

€ 6.50

5938237F00
ref: 6

BOLT

€ 7.00

5930314500
ref: 7

BOOT

€ 5.50

5930527C00
ref: 8

PIN

€ 13.50

5934513E00
ref: 9

PIN,HANGER

€ 13.50

5914621E10
ref: 10

PLUG,PIN

€ 6.50

5935013E00
ref: 11

BRACKET

€ 90.50

5912101A00
ref: 12

BLEEDER

€ 8.50

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50

5930136810
ref: 14

PAD SET (NAS)

€ 37.00

0910308523
ref: 15

BOLT(8X40)

€ 4.00
