FRAME COVER

RMX450Z 2011 (L1) USA (E03)

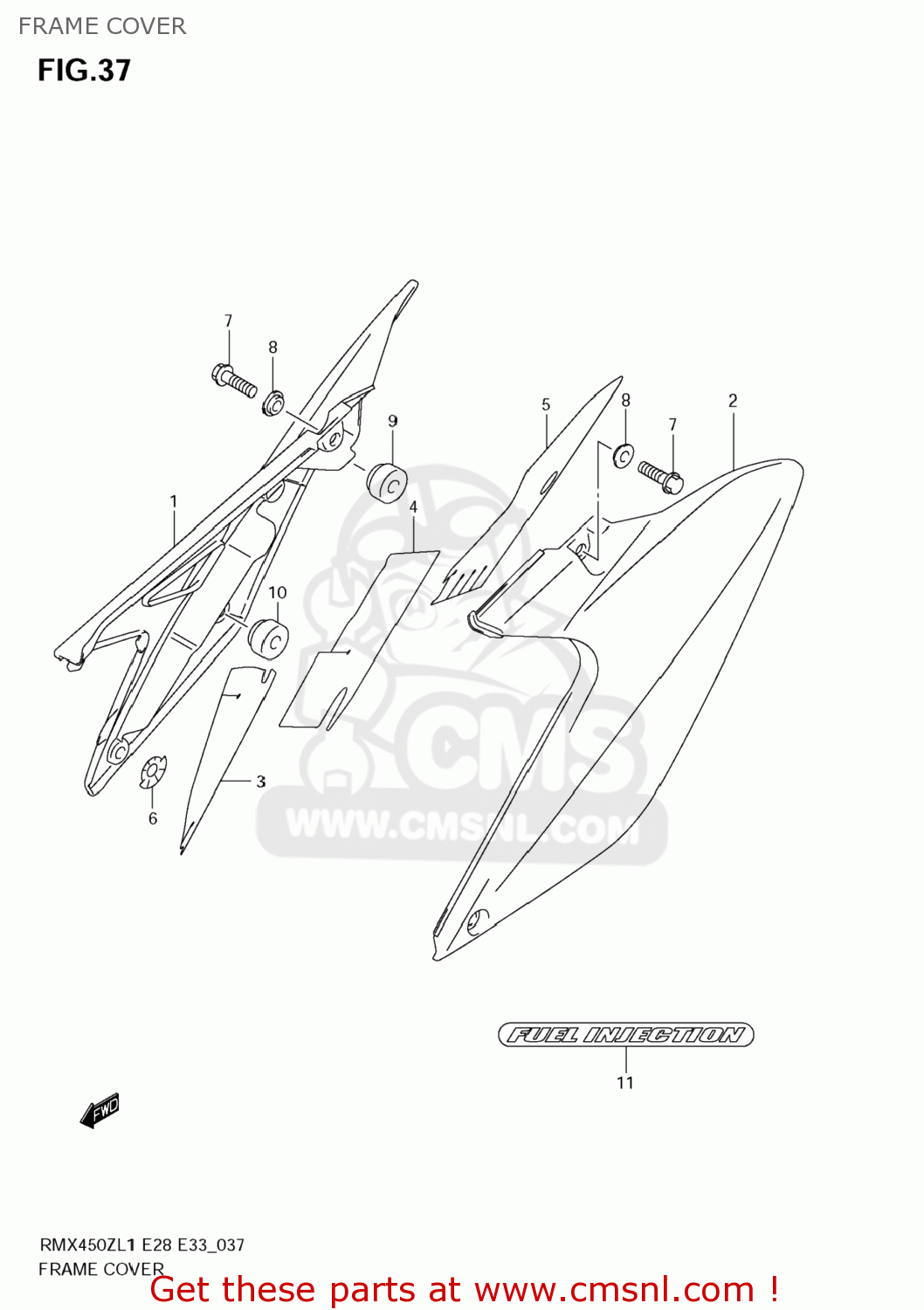

Frame cover diagram RMX450Z 2011 (L1) USA (E03)

FRAME COVER RMX450Z 2011 (L1) USA (E03)

FRAME COVER RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711102J0030H
ref: 1

COVER,FRAME,R(WHITE)

€ 60.00

2

4721102J0030H
ref: 2

COVER,FRAME,L(WHITE)

€ 60.00

3

4716602J00
ref: 3

SHIELD,FRAME COVER,R NO.1

€ 11.50

4

4716702J00
ref: 4

SHIELD,FRAME COVER,R NO.2

€ 15.50

5

4716802J00
ref: 5

SHIELD,FRAME COVER,R NO.3

€ 15.50

6

4716902J00
ref: 6

SHIELD,FRAME COVER,R NO.4

€ 6.00

7

0154706207
ref: 7

BOLT

€ 2.50

8

4719102J00
ref: 8

WASHER,FUEL TANK COVER

€ 7.00

9

4716108G00
ref: 9

CUSHION

€ 5.00

10

0932110040
ref: 10

CUSHION

€ 12.00

11

6813128H00FTY
ref: 11

EMBLEM,FRAME COVER

€ 8.00
