REAR COMBINATION LAMP (RMX450ZL1 E33)

RMX450Z 2011 (L1) USA (E03)

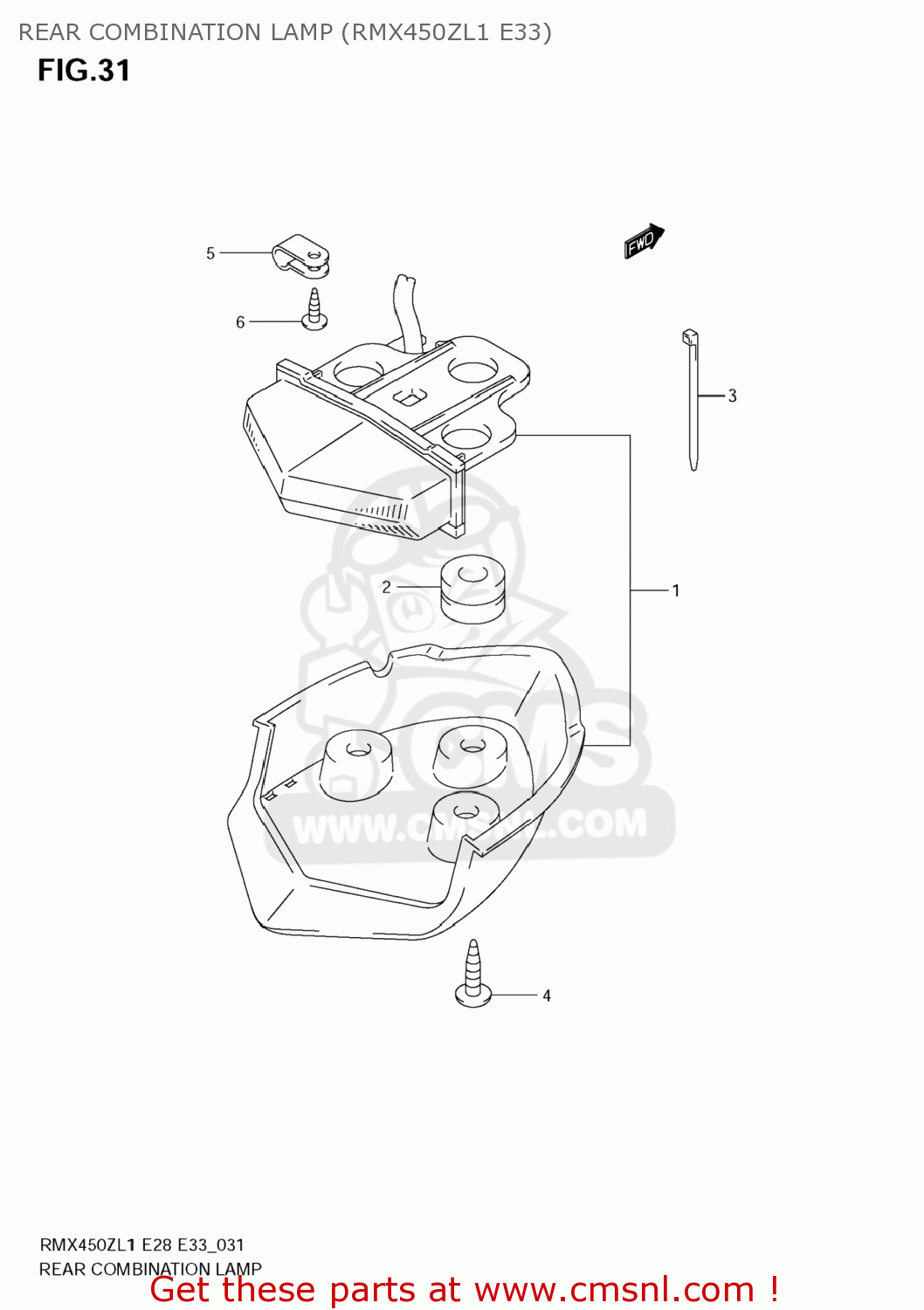

Rear combination lamp (rmx450zl1 e33) diagram RMX450Z 2011 (L1) USA (E03)

REAR COMBINATION LAMP (RMX450ZL1 E33) RMX450Z 2011 (L1) USA (E03)

REAR COMBINATION LAMP (RMX450ZL1 E33) RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571002J20
ref: 1

LAMP ASSY, TAIL

€ 0.00

2

0932009010
ref: 2

CUSHION

€ 2.50

3

0940714407
ref: 3

CLAMP(L:145)

€ 4.00

4

035410516A
ref: 4

SCREW

€ 1.50

5

0940306408
ref: 5

CLAMP

€ 2.50

6

035410410A
ref: 6

SCREW

€ 1.50
