HEADLAMP (RMX450ZL1 E33)

RMX450Z 2011 (L1) USA (E03)

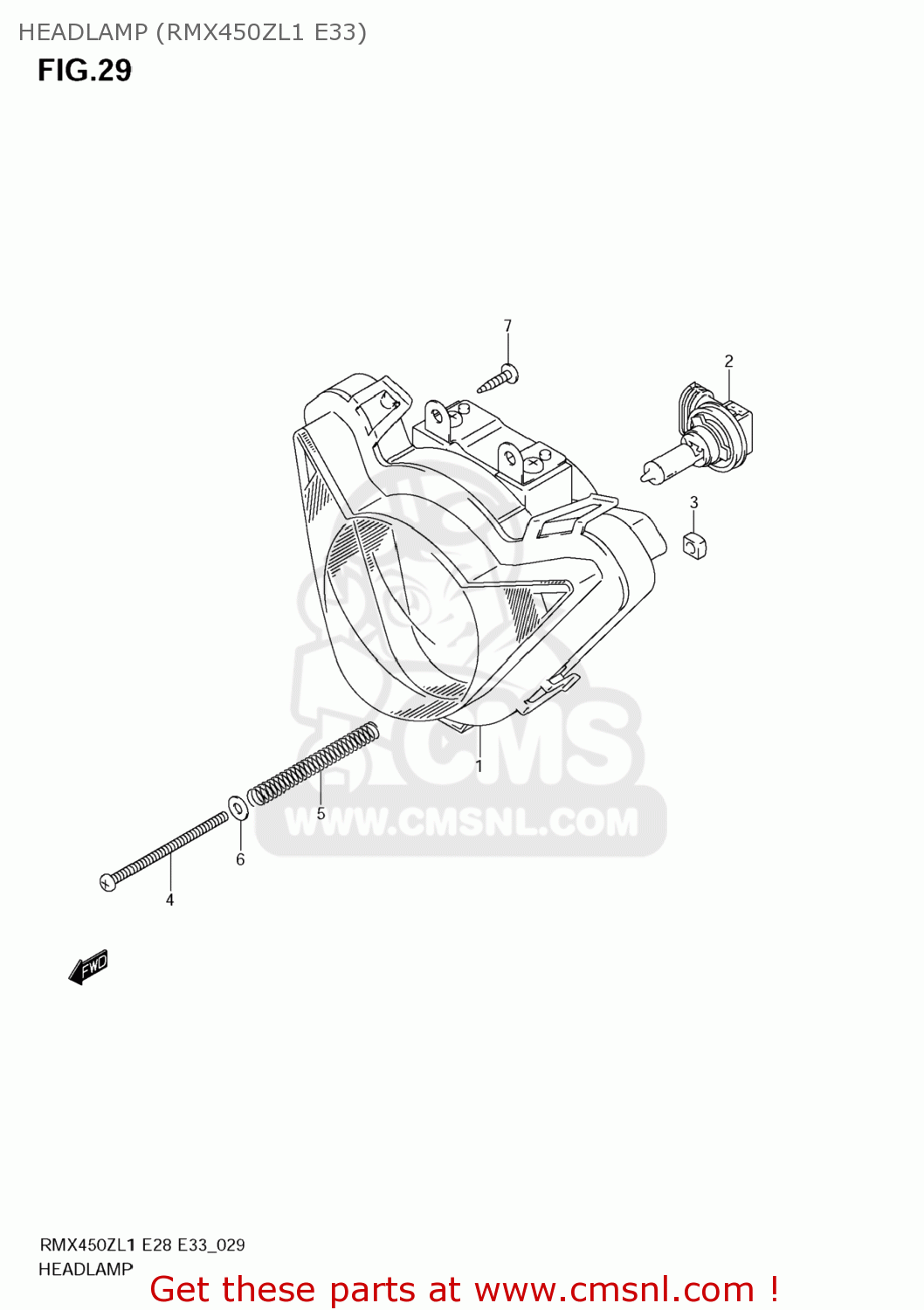

Headlamp (rmx450zl1 e33) diagram RMX450Z 2011 (L1) USA (E03)

HEADLAMP (RMX450ZL1 E33) RMX450Z 2011 (L1) USA (E03)

HEADLAMP (RMX450ZL1 E33) RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510002J00999
ref: 1

HEADLAMP ASSY

€ 201.50

2

0947112211
ref: 2

BULB(12V35W,H8)

€ 24.50

3

3515202J00
ref: 3

NUT,HEADLAMP

€ 2.50

4

3515102J00
ref: 4

SCREW,HEADLAMP ADJUSTER

€ 4.00

5

3515402J00
ref: 5

SPRING,HEADLAMP ADJUST

€ 4.50

6

083220104A
ref: 6

WASHER

€ 5.00

7

035410516A
ref: 7

SCREW

€ 1.50
