REAR FENDER (RMX450ZL1 E33)

RMX450Z 2011 (L1) USA (E03)

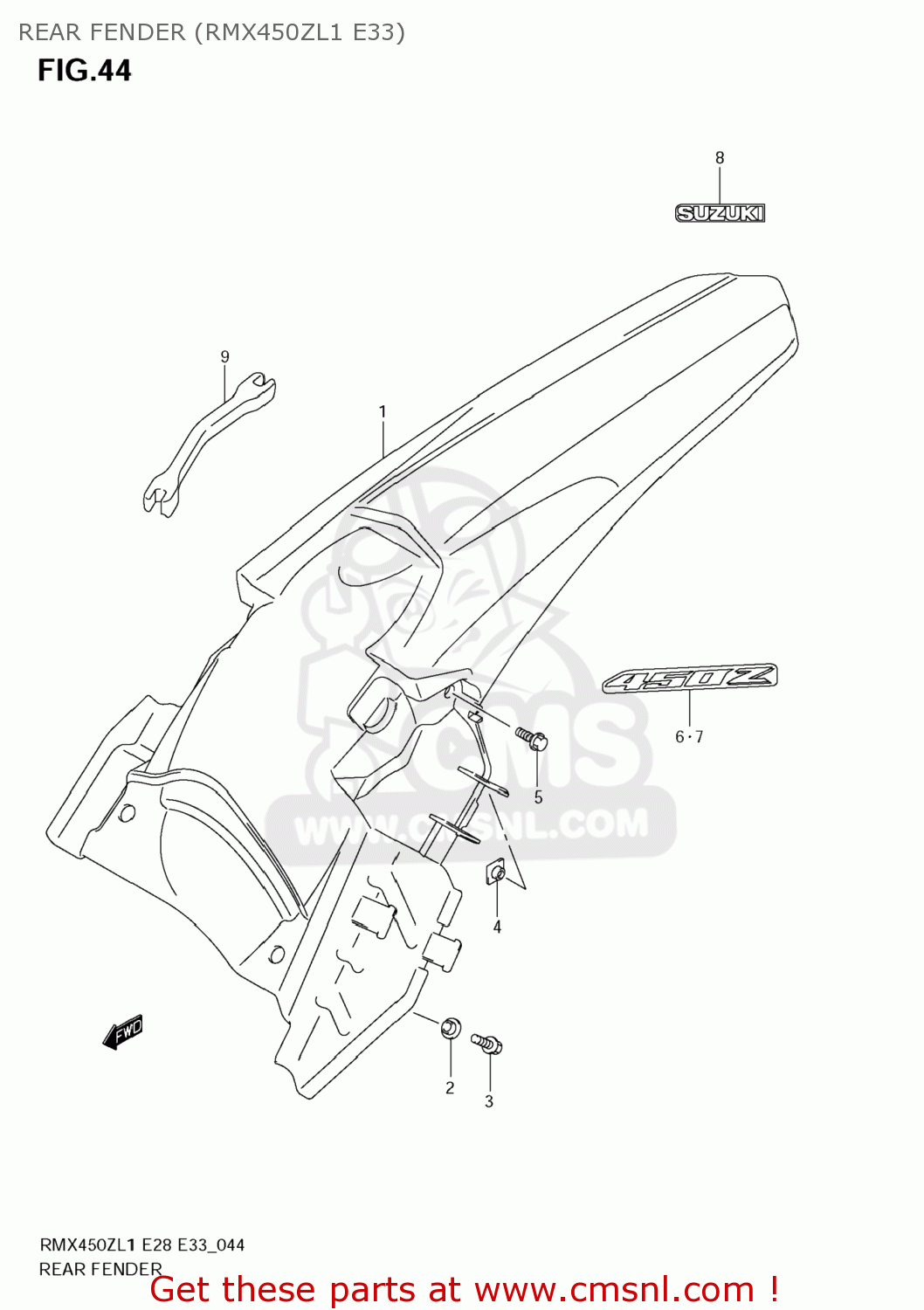

Rear fender (rmx450zl1 e33) diagram RMX450Z 2011 (L1) USA (E03)

REAR FENDER (RMX450ZL1 E33) RMX450Z 2011 (L1) USA (E03)

REAR FENDER (RMX450ZL1 E33) RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311102J00YU1
ref: 1

FENDER,RR

€ 128.50

2

6319102J00
ref: 2

WASHER,RR FENDER FR

€ 5.00

3

0154706207
ref: 3

BOLT

€ 2.50

4

6313102J00
ref: 4

NUT,RR REFLECTOR

€ 8.50

5

0910306234
ref: 5

BOLT(6X16)

€ 2.50

6

6817502J00LV8
ref: 6

EMBLEM,RR FENDER,R

€ 16.00

7

6817602J00LV8
ref: 7

EMBLEM,RR FENDER,L

€ 16.00

8

6813121H00019
ref: 8

EMBLEM,SUZUKI

€ 11.00

9

0981300134
ref: 9

OPEN SPANNER(6.4X6.8)

€ 8.00
