REAR COMBINATION LAMP (RMX450ZL1 E28)

RMX450Z 2011 (L1) USA (E03)

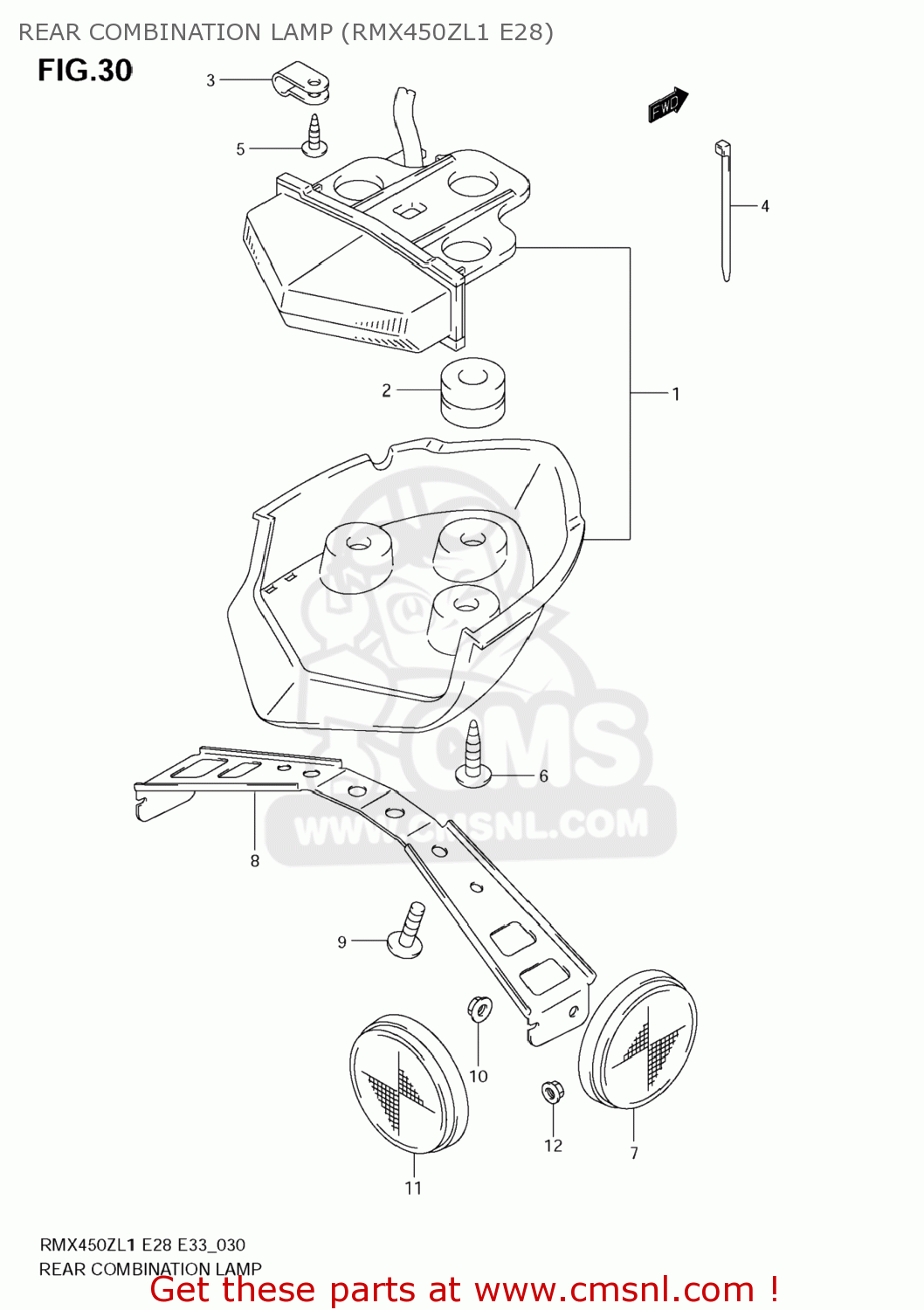

Rear combination lamp (rmx450zl1 e28) diagram RMX450Z 2011 (L1) USA (E03)

REAR COMBINATION LAMP (RMX450ZL1 E28) RMX450Z 2011 (L1) USA (E03)

REAR COMBINATION LAMP (RMX450ZL1 E28) RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571002J20
ref: 1

LAMP ASSY, TAIL

€ 0.00

2

0932009010
ref: 2

CUSHION

€ 2.50

3

0940306408
ref: 3

CLAMP

€ 2.50

4

0940714407
ref: 4

CLAMP(L:145)

€ 4.00

5

035410410A
ref: 5

SCREW

€ 1.50

6

035410516A
ref: 6

SCREW

€ 1.50

7

3597014A20
ref: 7

REFLECTOR ASSY,RR SIDE

€ 11.00

8

3597402J10
ref: 8

BRACKET, REAR SIDE

€ 0.00

9

021420512A
ref: 9

SCREW

€ 1.50

10

083161005A
ref: 10

NUT

€ 2.50

11

3597014A20
ref: 11

REFLECTOR ASSY,RR SIDE

€ 11.00

12

083161005A
ref: 12

NUT

€ 2.50
