HANDLEBAR

RMX450Z 2011 (L1) USA (E03)

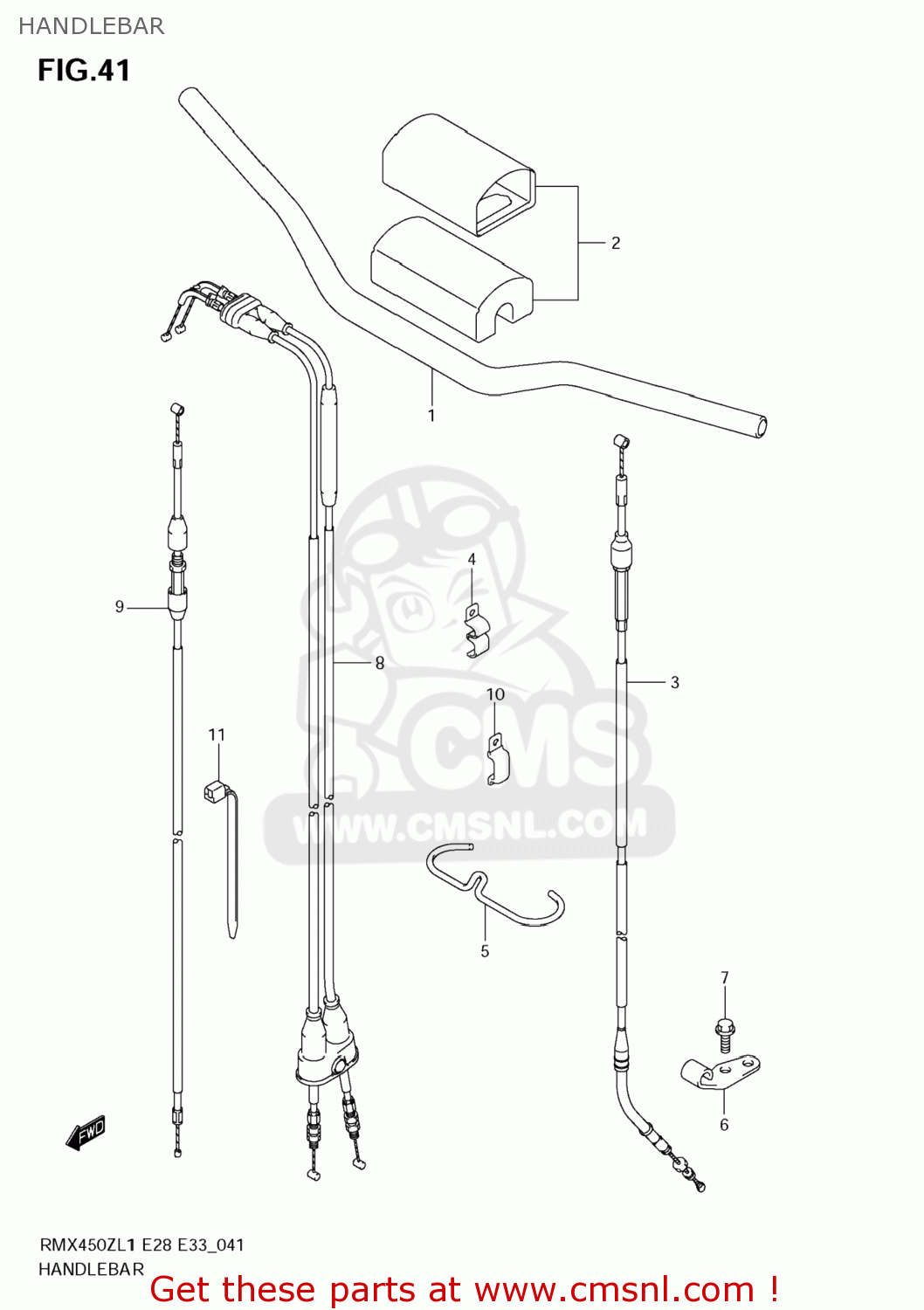

Handlebar diagram RMX450Z 2011 (L1) USA (E03)

HANDLEBAR RMX450Z 2011 (L1) USA (E03)

HANDLEBAR RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611135G10
ref: 1

HANDLEBAR

€ 227.00

2

5617035G20
ref: 2

PAD SET,HANDLEBAR (NAS)

€ 84.00

3

5820002J00
ref: 3

CABLE ASSY,CLUTCH

€ 44.00

4

5828502J00
ref: 4

CLAMP,CABLE

€ 8.00

5

5862102J00
ref: 5

GUIDE,CABLE

€ 10.50

6

5863402J00
ref: 6

STOPPER,CLUTCH CABLE

€ 10.50

7

015470612A
ref: 7

BOLT

€ 2.00

8

5830128H20
ref: 8

CABLE SET,THROTTLE

€ 92.50

9

5890002J00
ref: 9

CABLE ASSY,HOT STARTER

€ 40.00

10

0940310307
ref: 10

CLAMP

€ 3.00

11

0940710403
ref: 11

CLAMP(L:95)

€ 2.50
