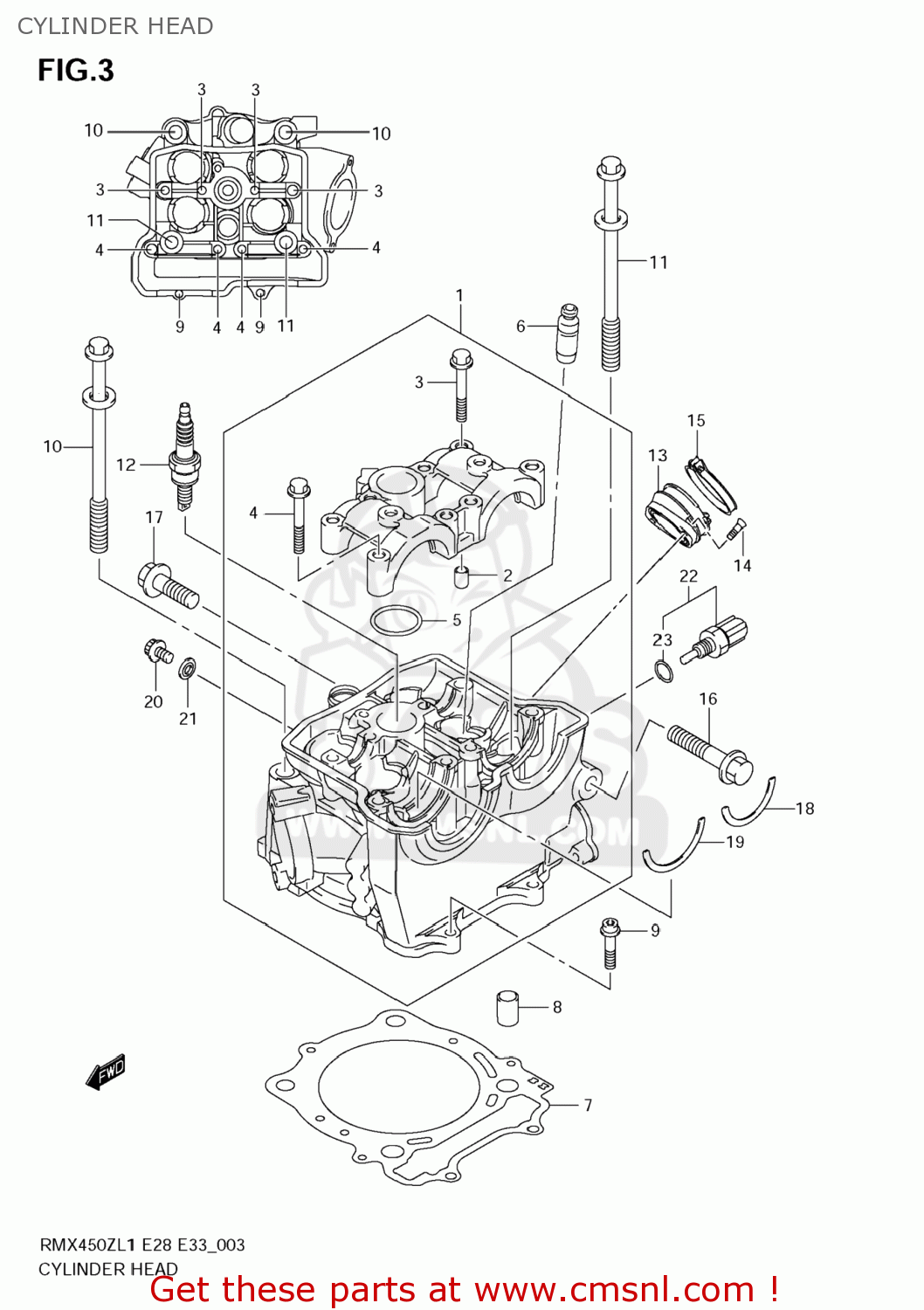

CYLINDER HEAD

ref

part #

description

quantity

1

1110002J00
ref: 1

HEAD ASSY,CYLINDER

€ 624.00

2

0920608001
ref: 2

PIN(6.2X8X11)

€ 2.00

3

0910306266
ref: 3

BOLT(6X40)

€ 2.50

4

0910306293
ref: 4

BOLT(6X45)

€ 2.00

5

0928026007
ref: 5

O RING(D:2.4,ID:25.7)

€ 6.50

6

1111545G70
ref: 6

GUIDE,VALVE(OS:0.3)

€ 17.00

7

1114128H00
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 23.50

8

0421113189
ref: 8

PIN

€ 2.50

9

071200625A
ref: 9

BOLT

€ 2.50

10

1111728H00
ref: 10

BOLT,CYLINDER HEAD(L:140)

€ 9.50

11

1116145G00
ref: 11

BOLT,CYLINDER HEAD(L:120)

€ 7.00

12

0948200584
ref: 12

PLUG,SPARK(CR8EIB-10)

€ 17.00

13

1310102J00
ref: 13

PIPE ASSY,INTAKE

€ 50.00

14

021220616B
ref: 14

SCREW

€ 2.00

15

1317035G00
ref: 15

CLAMP,INTAKE PIPE

€ 9.00

16

0910310116
ref: 16

BOLT(10X43)

€ 1.50

17

0910310359
ref: 17

BOLT(10X30)

€ 4.00

18

1274935G01
ref: 18

C RING,CAMSHAFT

€ 3.00

19

1274910H00
ref: 19

C RING,CAMSHAFT

€ 3.50

20

071200610A
ref: 20

BOLT

€ 2.00

21

0916806023
ref: 21

GASKET(5.8X13X1.2) (NAS)

€ 2.00

22

1365014G00
ref: 22

SENSOR,WATER TEMP

€ 34.50

23

1365514G00
ref: 23

O RING

€ 6.00
