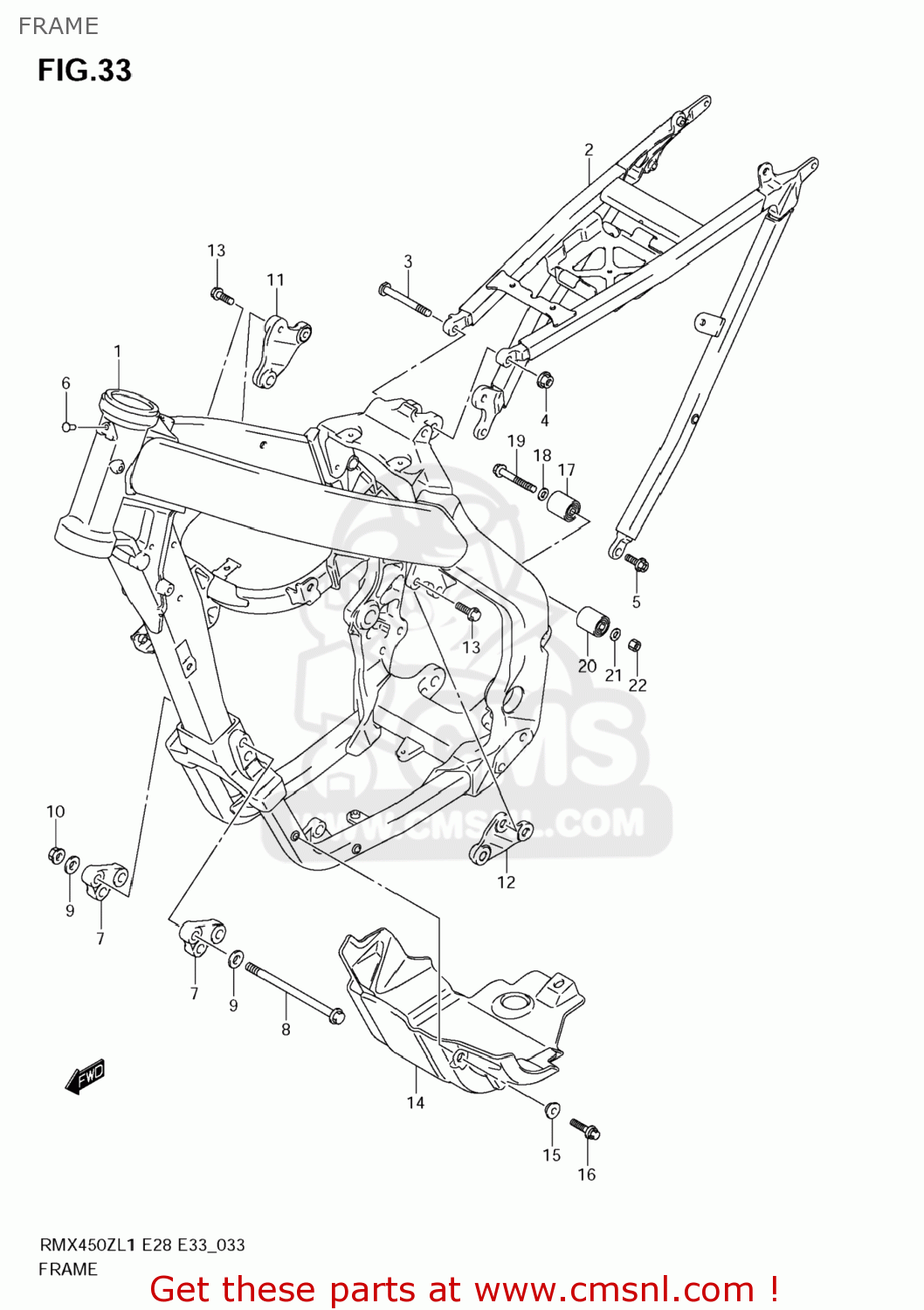

FRAME

ref

part #

description

quantity

1

4110002J00
ref: 1

FRAME

€ 3,136.50

2

4120002J00
ref: 2

RAIL,SEAT

€ 603.50

3

4131128H20
ref: 3

BOLT,SEAT RAIL UPR

€ 12.50

4

083193108A
ref: 4

NUT

€ 2.50

5

0910308426
ref: 5

BOLT(8X20)

€ 4.50

6

0925005009
ref: 6

CAP(OD:10)

€ 2.50

7

4199102J00
ref: 7

BRACKET,ENGINE MOUNTING FR

€ 24.00

8

0910310388
ref: 8

BOLT(10X120)

€ 5.50

9

0916010039
ref: 9

WASHER(10.5X22X2.3)

€ 2.50

10

0915910115
ref: 10

NUT

€ 4.00

11

4199328H10
ref: 11

BRACKET,ENGINE MOUNTING UPR,R

€ 99.50

12

4199402J10
ref: 12

BRACKET,ENGINE MOUNTING UPR,L

€ 71.00

13

0910308404
ref: 13

BOLT(8X21)

€ 3.00

14

4251102J00
ref: 14

PROTECTOR,ENGINE

€ 33.00

15

4251402J00
ref: 15

WASHER,ENGINE PROTECTOR

€ 4.00

16

0911606177
ref: 16

BOLT(6X25)

€ 1.50

17

4391037F00
ref: 17

ROLLER,CHAIN

€ 31.50

18

0918108167
ref: 18

SHIM(8X16X1)

€ 2.00

19

0910308207
ref: 19

BOLT(8X45)

€ 2.00

20

4391035G00
ref: 20

ROLLER,CHAIN

€ 38.00

21

0918108111
ref: 21

SHIM(8X12X1)

€ 2.00

22

083192108A
ref: 22

NUT

€ 1.50
