HEADLAMP COVER (RMX450ZL1 E33)

RMX450Z 2011 (L1) USA (E03)

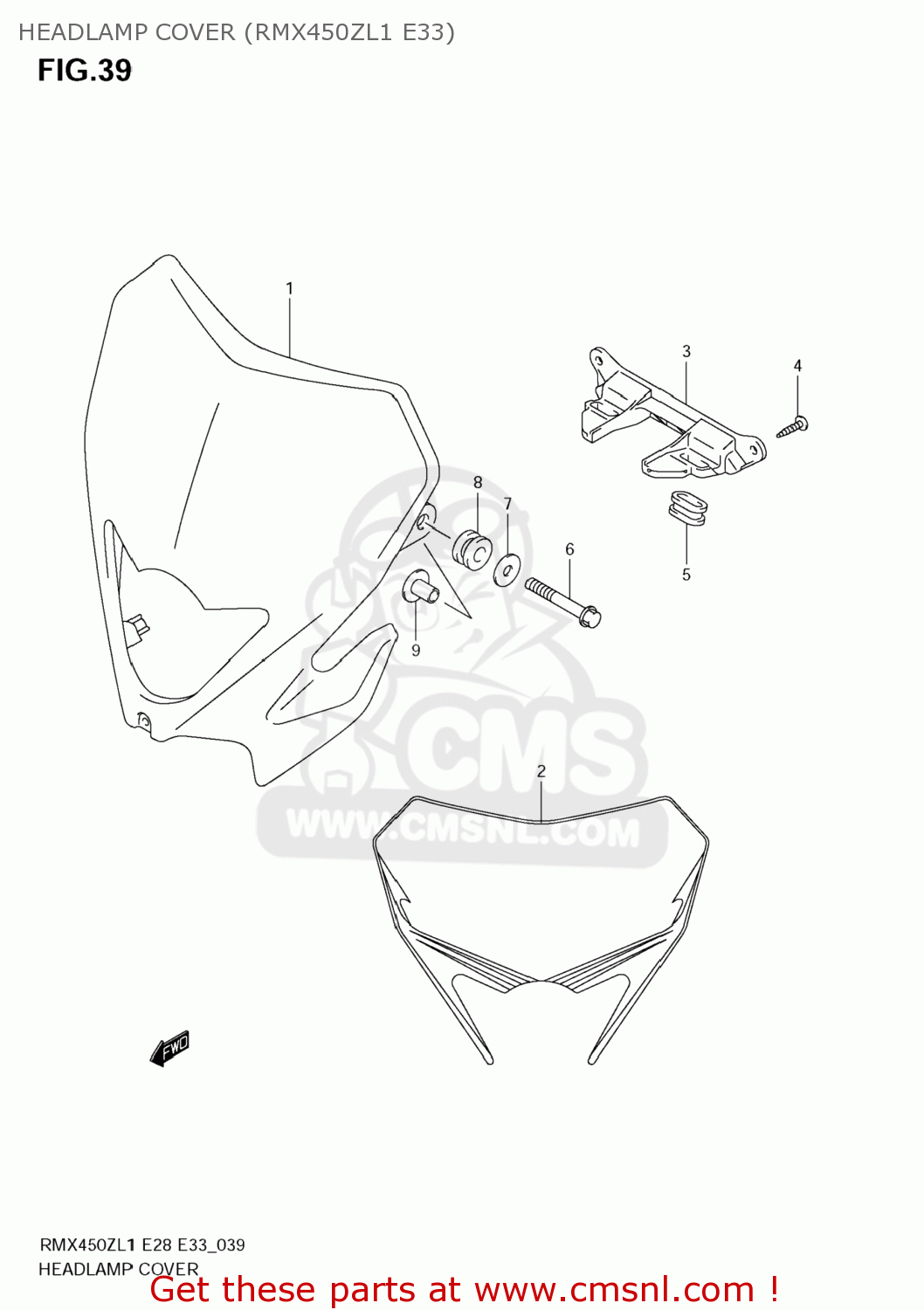

Headlamp cover (rmx450zl1 e33) diagram RMX450Z 2011 (L1) USA (E03)

HEADLAMP COVER (RMX450ZL1 E33) RMX450Z 2011 (L1) USA (E03)

HEADLAMP COVER (RMX450ZL1 E33) RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181102J00YU1
ref: 1

COVER,HEADLAMP

€ 34.00

2

6872502J10JNF
ref: 2

TAPE,HEADLAMP COVER

€ 61.00

3

5182102J00
ref: 3

COVER,HEADLAMP LWR

€ 11.00

4

035410516A
ref: 4

SCREW

€ 1.50

5

5183102J00
ref: 5

CUSHION,HEADLAMP COVER

€ 5.00

6

0910306250
ref: 6

BOLT(6X25)

€ 2.50

7

0916006084
ref: 7

WASHER(6.5X18X1.6)

€ 2.00

8

0932009501
ref: 8

CUSHION

€ 2.00

9

0916906062
ref: 9

WASHER

€ 3.00
