STARTER CLUTCH

RMX450Z 2011 (L1) USA (E03)

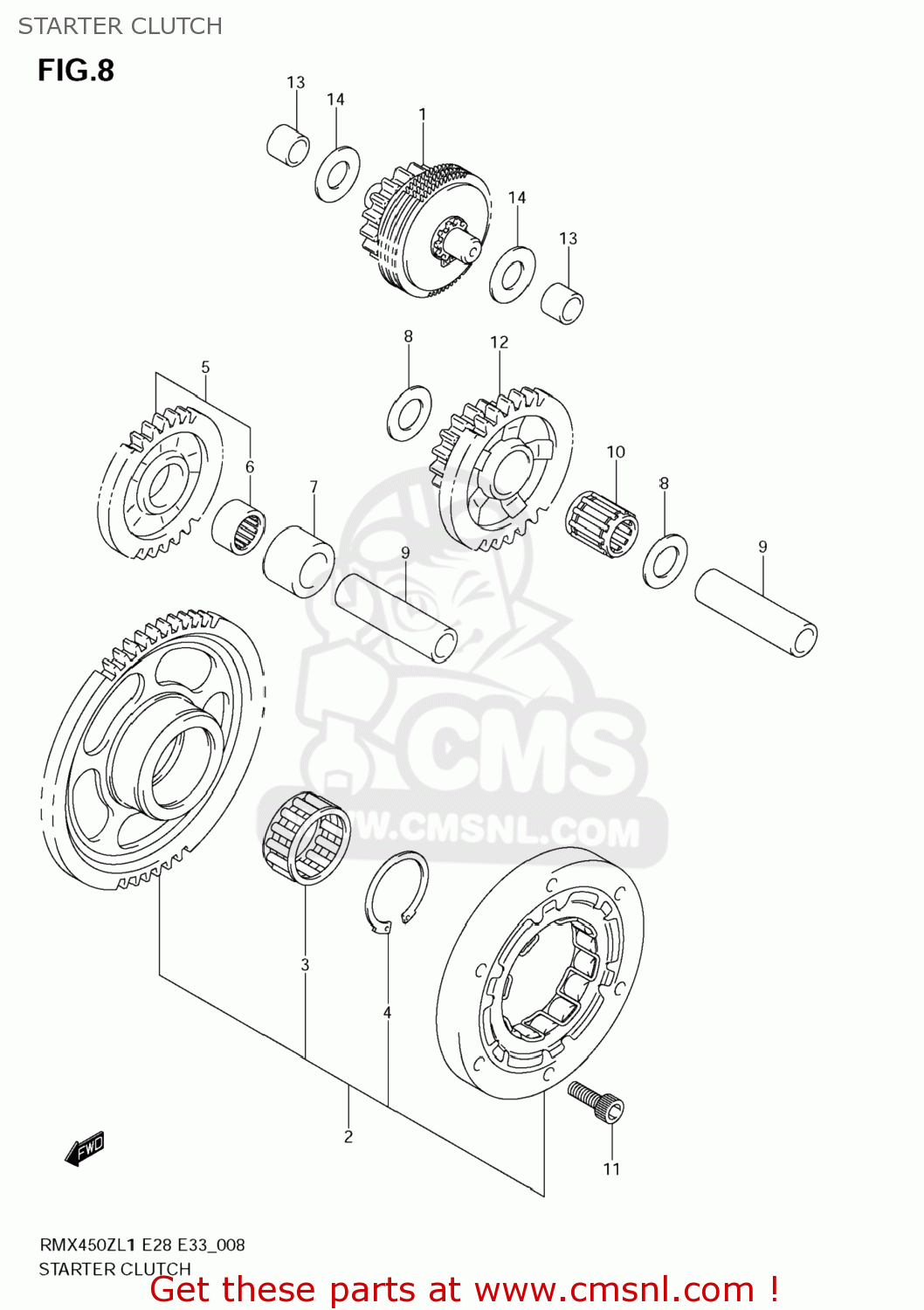

Starter clutch diagram RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1260002J00
ref: 1

LIMITER ASSY,STARTER IDLE GEAR

€ 173.50

1260002J00
ref: 1

LIMITER ASSY,STARTER IDLE GEAR

€ 173.50

1260002810
ref: 2

CLUTCH SET,STARTER

€ 212.00

09263220720B0
ref: 3

BEARING(22X28X14)

€ 12.50

0938128005
ref: 4

CIRCLIP

€ 2.00

1263002J00
ref: 5

GEAR,STARTER IDLE NO.3

€ 66.00

0926312024
ref: 6

BEARING(12X16X10)

€ 11.00

0918012139
ref: 7

SPACER(12.5X19X13)

€ 5.00

0918112167
ref: 8

SHIM(12X20X1)

€ 2.50

0920612006
ref: 9

PIN(8X12X45.5)

€ 7.50

0926312022
ref: 10

BEARING(12X16X20)

€ 8.00

0910606073
ref: 11

BOLT(6X16)

€ 2.50

1261202J00
ref: 12

GEAR,STARTER IDLE NO.2

€ 75.50

1261831G00
ref: 13

BUSH,LIMITER GEAR SHAFT

€ 2.00

0821110221
ref: 14

WASHER

€ 2.50
