HEADLAMP (RMX450ZL1 E28)

RMX450Z 2011 (L1) USA (E03)

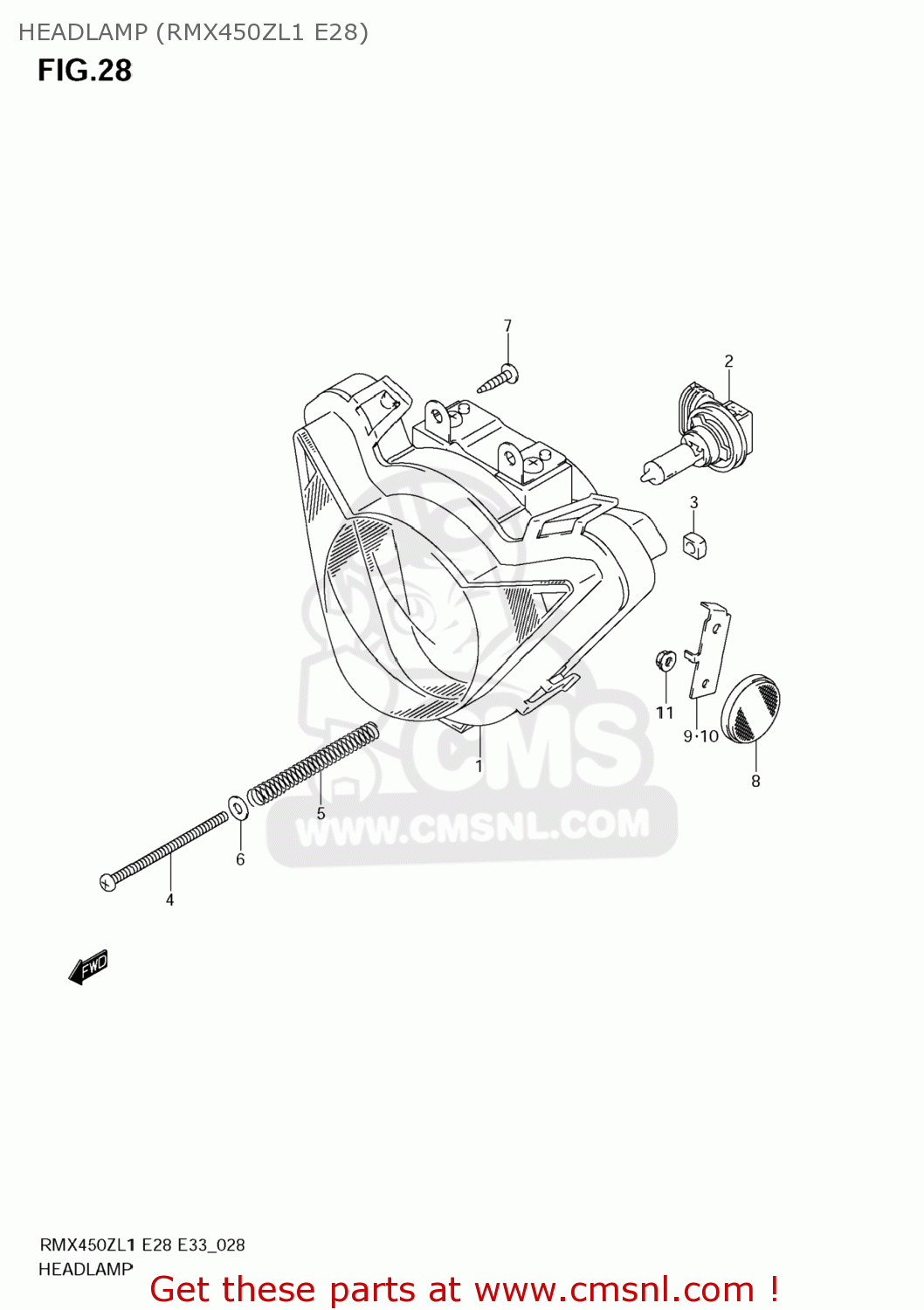

Headlamp (rmx450zl1 e28) diagram RMX450Z 2011 (L1) USA (E03)

HEADLAMP (RMX450ZL1 E28) RMX450Z 2011 (L1) USA (E03)

HEADLAMP (RMX450ZL1 E28) RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510002J00999
ref: 1

HEADLAMP ASSY

€ 201.50

2

0947112211
ref: 2

BULB(12V35W,H8)

€ 24.50

3

3515202J00
ref: 3

NUT,HEADLAMP

€ 2.50

4

3515102J00
ref: 4

SCREW,HEADLAMP ADJUSTER

€ 4.00

5

3515402J00
ref: 5

SPRING,HEADLAMP ADJUST

€ 4.50

6

083220104A
ref: 6

WASHER

€ 5.00

7

035410516A
ref: 7

SCREW

€ 1.50

8

3595014A11
ref: 8

REFLEX REFLECTOR ASSY,FR SIDE

€ 11.00

9

3595602J00
ref: 9

BRACKET,FR SIDE RR,R

€ 6.50

10

3595702J00
ref: 10

BRACKET,FR SIDE RR,L

€ 6.50

11

083161005B
ref: 11

NUT

€ 2.50
