REAR CALIPER

RMX450Z 2011 (L1) USA (E03)

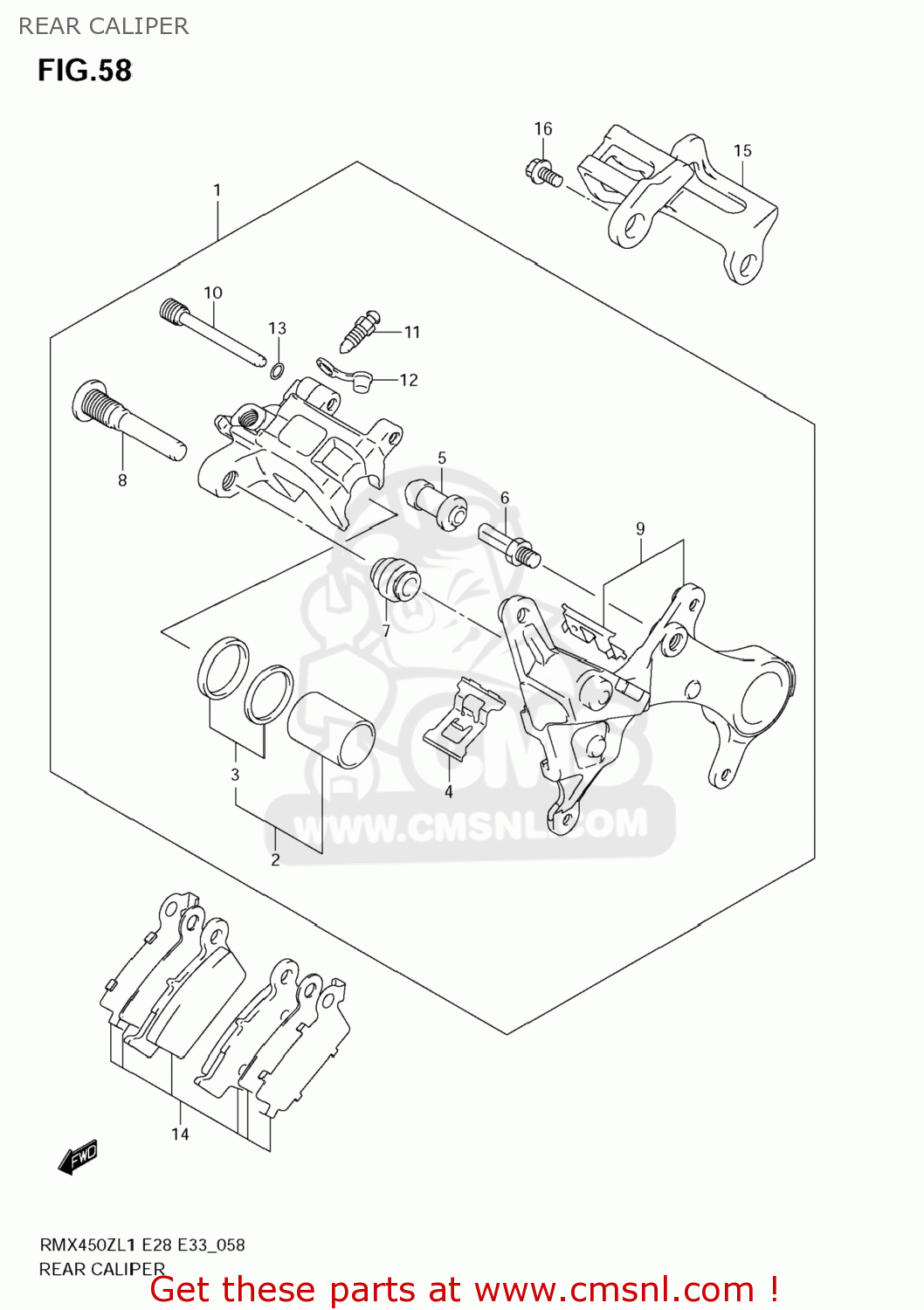

Rear caliper diagram RMX450Z 2011 (L1) USA (E03)

REAR CALIPER RMX450Z 2011 (L1) USA (E03)

REAR CALIPER RMX450Z 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6910028H01999
ref: 1

CALIPER ASSY,RR

€ 223.50

2

6910014820
ref: 2

PISTON SET

€ 39.50

3

6910021840
ref: 3

SEAL SET,PISTON

€ 14.50

4

6931535G00
ref: 4

SPRING,PAD

€ 6.50

5

5938613A00
ref: 5

BOOT

€ 6.50

6

5938214500
ref: 6

PIN,BOLT

€ 7.50

7

5930314500
ref: 7

BOOT

€ 5.50

8

5930536E00
ref: 8

PIN,BOLT

€ 12.50

9

6935028H00
ref: 9

BRACKET,RR CALIPER

€ 88.00

10

6934537F00
ref: 10

PIN,HANGER

€ 13.50

11

5912101A00
ref: 11

BLEEDER

€ 8.50

12

5912201A00
ref: 12

CAP,BLEEDER

€ 4.50

13

5914537F00
ref: 13

RING,STOPPER

€ 3.50

14

6910028820
ref: 14

PAD & SHIM SET (NAS)

€ 54.00

15

6972537F01
ref: 15

GUARD,RR CALIPER

€ 18.50

16

0911606197
ref: 16

BOLT(6X12)

€ 2.50
