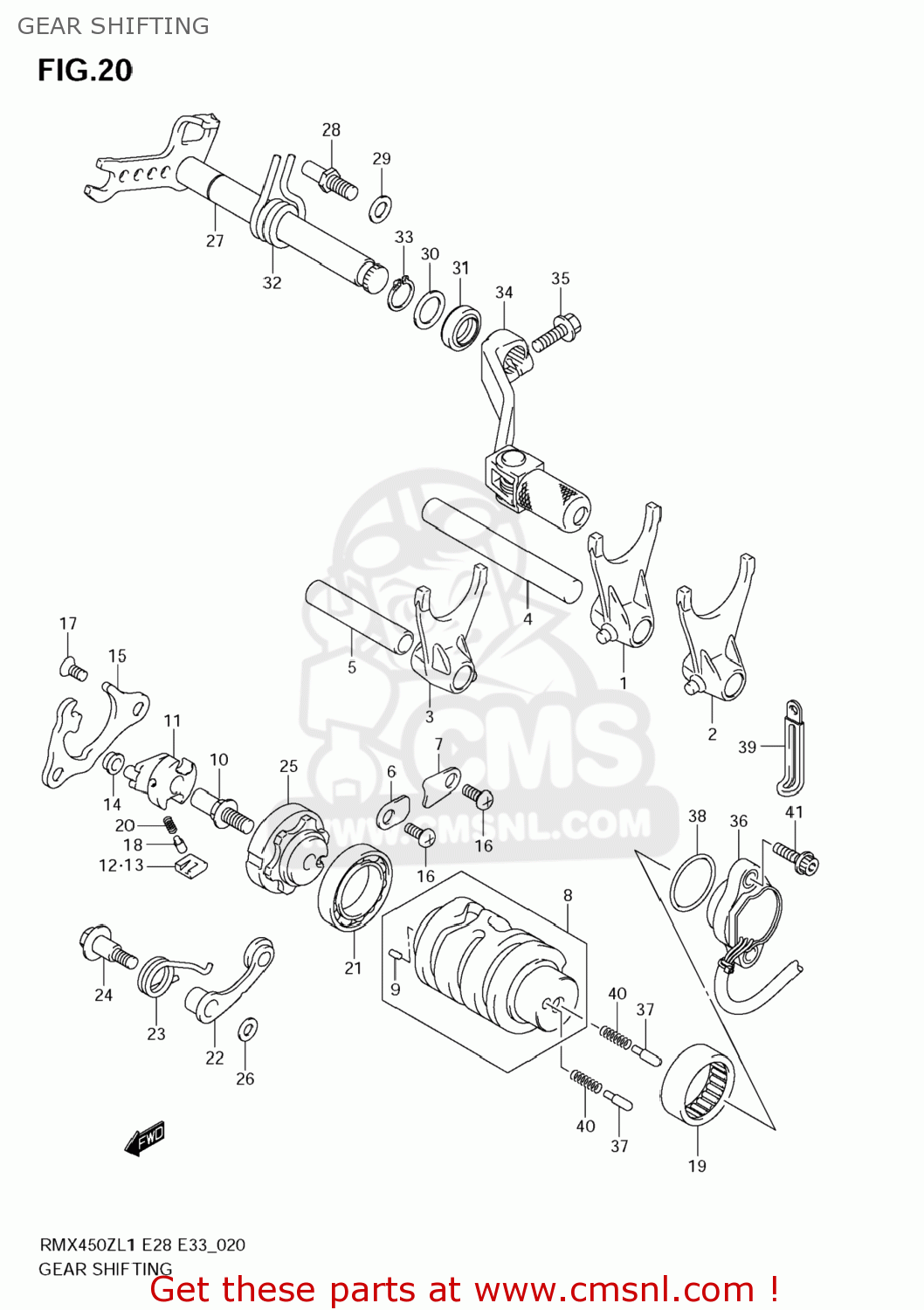

GEAR SHIFTING

ref

part #

description

quantity

1

2521128H00
ref: 1

FORK,GEAR SHIFT NO.1

€ 49.00

2

2522128H00
ref: 2

FORK,GEAR SHIFT NO.2

€ 49.00

3

2523128H00
ref: 3

FORK,GEAR SHIFT NO.3

€ 49.00

4

2541128H00
ref: 4

SHAFT,GEAR SHIFT FORK NO.1

€ 15.50

5

2542128H00
ref: 5

SHAFT,GEAR SHIFT FORK NO.2

€ 12.50

6

2474121A00
ref: 6

RETAINER

€ 2.00

7

2474218A00
ref: 7

RETAINER,BEARING

€ 2.00

8

2531028H00
ref: 8

CAM,GEAR SHIFT

€ 115.00

9

0422104089
ref: 9

PIN

€ 1.50

10

2531337F00
ref: 10

PIN,GEAR SHIFT CAM

€ 6.50

11

2532228H00
ref: 11

SHIFTER,GEAR SHIFT CAM

€ 28.00

12

2532334201
ref: 12

PAWL,GEAR SHIFT NO.1

€ 6.00

13

2532434201
ref: 13

PAWL,GEAR SHIFT NO.2

€ 6.00

14

2532528H00
ref: 14

ROLLER,GEAR SHIFT CAM SHIFTER

€ 5.50

15

2533128H00
ref: 15

LIFTER,GEAR SHIFT PAWL

€ 10.00

16

0912506122
ref: 16

SCREW(6X12)

€ 1.50

17

0912606011
ref: 17

SCREW(6X12)

€ 2.00

18

0920905023
ref: 18

PIN

€ 2.00

19

0926325018
ref: 19

BEARING(25X32X12)

€ 17.50

20

0944004003
ref: 20

SPRING

€ 1.50

21

0814068050
ref: 21

BEARING

€ 25.50

22

2535028H00
ref: 22

STOPPER,GEAR SHIFT CAM

€ 12.50

23

2535528H00
ref: 23

SPRING,GEAR SHIFT CAM STOPPER

€ 9.00

24

2535728H00
ref: 24

BOLT,SHIFT CAM STOPPER

€ 3.50

25

2538110H00
ref: 25

PLATE,GEAR SHIFT CAM STOPPER

€ 85.50

26

0821106121
ref: 26

WASHER

€ 2.00

27

2551002J00
ref: 27

SHAFT,GEAR SHIFT

€ 63.50

28

2567110H00
ref: 28

STOPPER,GEAR SHIFT ARM

€ 2.50

29

0918108139
ref: 29

SHIM(8.8X14X1)

€ 1.50

30

0918114139
ref: 30

SHIM(14X20X1)

€ 2.50

31

0928314005
ref: 31

SEAL,OIL(14X22X7.3)

€ 6.50

32

0944420011
ref: 32

SPRING

€ 3.50

33

083313114A
ref: 33

CIRCLIP

€ 2.00

34

2560002J00
ref: 34

LEVER ASSY,GEAR SHIFT

€ 81.50

35

0154706207
ref: 35

BOLT

€ 2.50

36

3773049H00
ref: 36

BASE ASSY,GEAR SHIFT TERMINAL

€ 64.50

37

0920905011
ref: 37

PIN(5X15.5)

€ 2.00

38

0928026005
ref: 38

O RING(D:2.4,ID:26.2)

€ 2.50

39

0940406429
ref: 39

CLAMP(L:45)

€ 2.50

40

0944004010
ref: 40

SPRING

€ 1.50

41

071200516A
ref: 41

BOLT

€ 1.50

all assemblies
