CENTER STAND (E18, E22, E39, E41)
RV50 1983 (D) (E01)

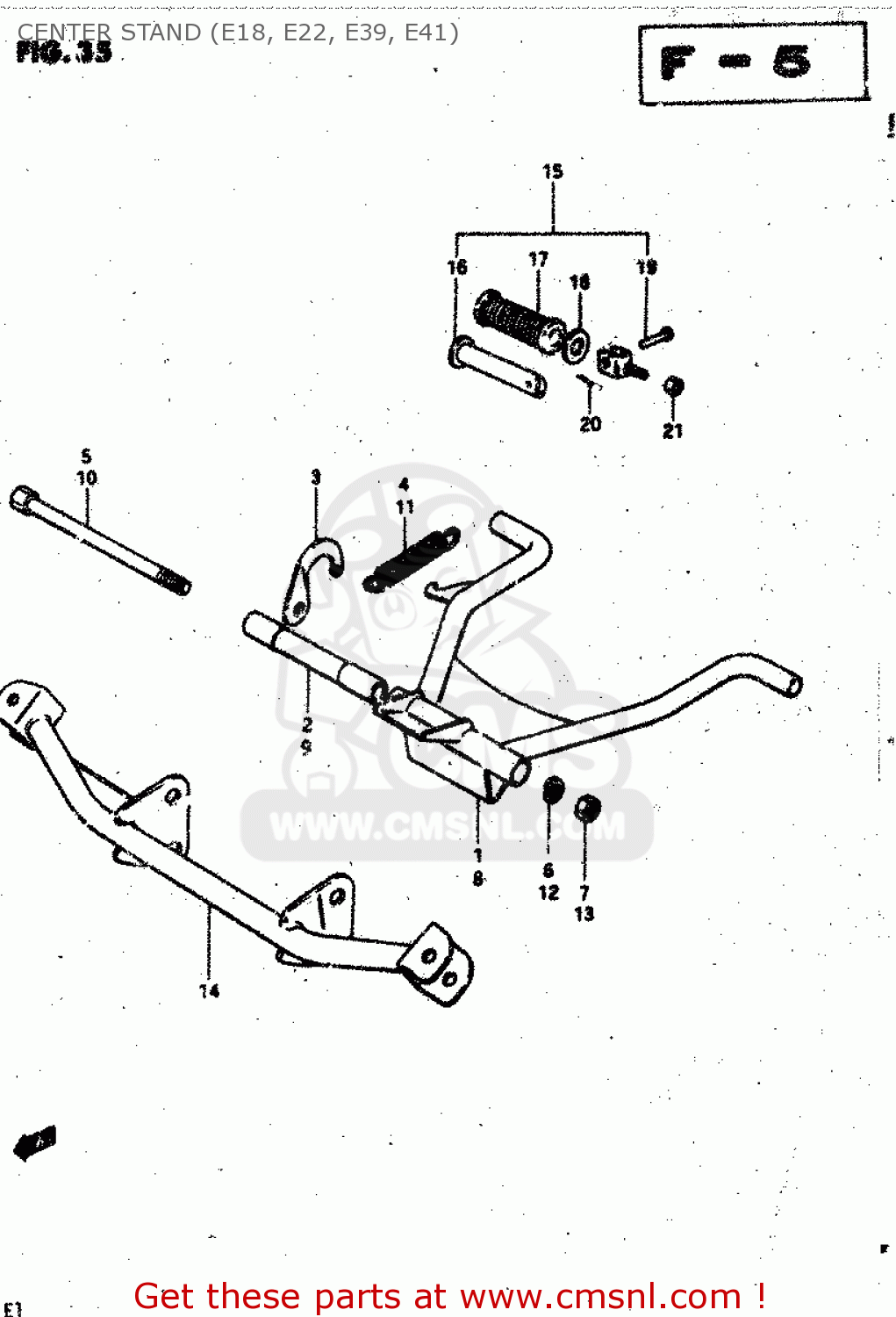

Center stand (e18, e22, e39, e41) diagram RV50 1983 (D) (E01)
CENTER STAND (E18, E22, E39, E41) RV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4210027810
ref: 1
E18,E39
STAND, CENTER
€ 77.00
2
4221127200
ref: 2
E18,E39
SPACER
€ 10.50
3
4225103003
ref: 3
E18,E39
HOOK,CENTER STAND SPRING
€ 5.00
4
0944316007
ref: 4
E18,E39
SPRING
€ 12.00
5
0910010088
ref: 5
E18,E39
BOLT
€ 8.50
6
0832121108
ref: 6
E18,E39
LOCK WASHER
€ 2.00
7
0831011108
ref: 7
E18,E39
NUT
€ 2.50
8
4210027600
ref: 8
E22
STAND, CENTER
€ 0.00
9
4221127200
ref: 9
E22
SPACER
€ 10.50
10
0910010088
ref: 10
E22
BOLT
€ 8.50
11
0944314017
ref: 11
E22
SPRING
€ 6.50
12
0832121108
ref: 12
E22
LOCK WASHER
€ 2.00
13
0831011108
ref: 13
E22
NUT
€ 2.50
14
4351027620
ref: 14
E18,E22,E39
BAR, FRONT FOOTREST
€ 88.00
15
4360003001
ref: 15
E22,E39,E41
FOOTREST ASSEMBLY,REAR
€ 21.00
16
4361003001
ref: 16
E22,E39,E41
BAR,FOOTREST RUBBER
€ 5.50
17
4361203001
ref: 17
E22,E39,E41
RUBBER,PILLION FOOTREST
€ 3.50
18
0916019006
ref: 18
E22,E39,E41
WASHER (19.5X32X2)
€ 2.00
19
0920006010
ref: 19
E22,E39,E41
PIN
€ 2.50
20
0411120208
ref: 20
E22,E39,E41
PIN 20X20
€ 1.50
21
0831022108
ref: 21
E22,E39,E41
NUT
€ 2.50
