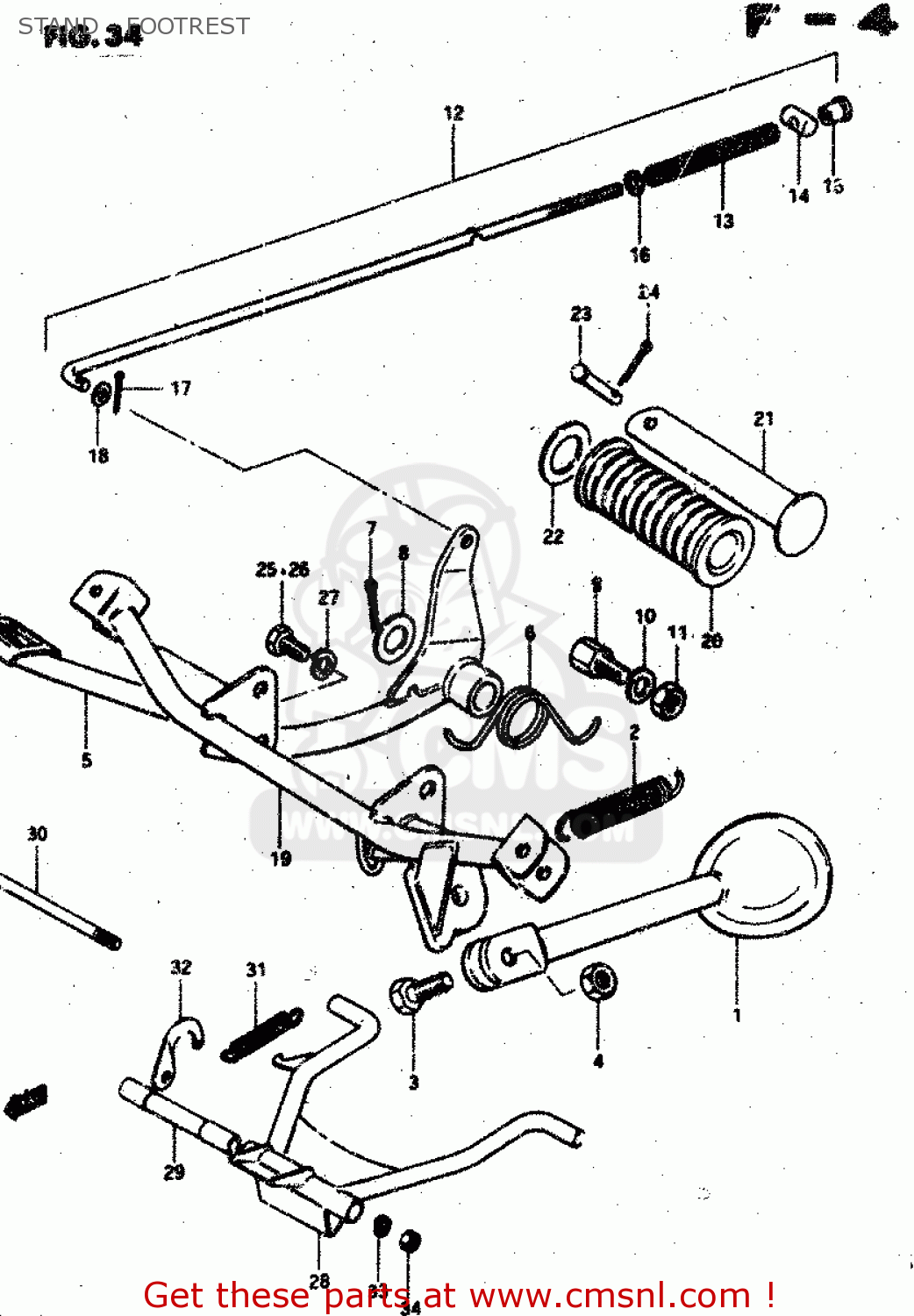

STAND - FOOTREST - RV50 1983 (D) (E01)

ref

part #

description

quantity

1

4231027200
ref: 1

STNAD, PROP

€ 0.00

2

0944314017
ref: 2

SPRING

€ 6.50

3

0910010007
ref: 3

BOLT

€ 4.50

4

0831022108
ref: 4

NUT

€ 2.50

5

4311027200
ref: 5

PEDAL, BRAKE

€ 28.00

6

0944831003
ref: 6

SPRING

€ 7.00

7

0411130308
ref: 7

COTTER PIN

€ 1.50

8

0916015002
ref: 8

WASHER(15.5X26X2.3)

€ 2.00

9

0110710208
ref: 9

BOLT 10X20

€ 3.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0914010004
ref: 11

NUT

€ 2.50

12

4330027200
ref: 12

ROD ASSY,RR BRAKE

€ 14.50

13

0944009004
ref: 13

SPRING

€ 2.00

14

0920911002
ref: 14

PIN(11X18)

€ 2.00

15

0915006009
ref: 15

NUT (6MM)

€ 3.50

16

0832221058
ref: 16

WASHER

€ 2.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50

18

0832221068
ref: 18

WASHER

€ 2.00

19

4351027200
ref: 19

BAR, FRONT FOOTREST

€ 45.50

20

4361203001
ref: 20

RUBBER,PILLION FOOTREST

€ 3.50

21

4361003001
ref: 21

BAR,FOOTREST RUBBER

€ 5.50

22

0916019006
ref: 22

WASHER (19.5X32X2)

€ 2.00

23

0920006010
ref: 23

PIN

€ 2.50

24

0411120208
ref: 24

PIN 20X20

€ 1.50

25

0110708168
ref: 25

BOLT

€ 2.00

26

0910008006
ref: 26

BOLT

€ 4.00

27

0832121088
ref: 27

LOCK WASHER

€ 2.00

28

4210027810
ref: 28
OPT

STAND, CENTER

€ 77.00

29

4221127200
ref: 29
OPT

SPACER

€ 10.50

30

0910010088
ref: 30
OPT

BOLT

€ 8.50

31

0944316007
ref: 31
OPT

SPRING

€ 12.00

32

4225103003
ref: 32
OPT

HOOK,CENTER STAND SPRING

€ 5.00

33

0832121108
ref: 33
OPT

LOCK WASHER

€ 2.00

34

0831011108
ref: 34
OPT

NUT

€ 2.50

STAND - FOOTREST

all assemblies
