ELECTRICAL

RV50 1983 (D) (E01)

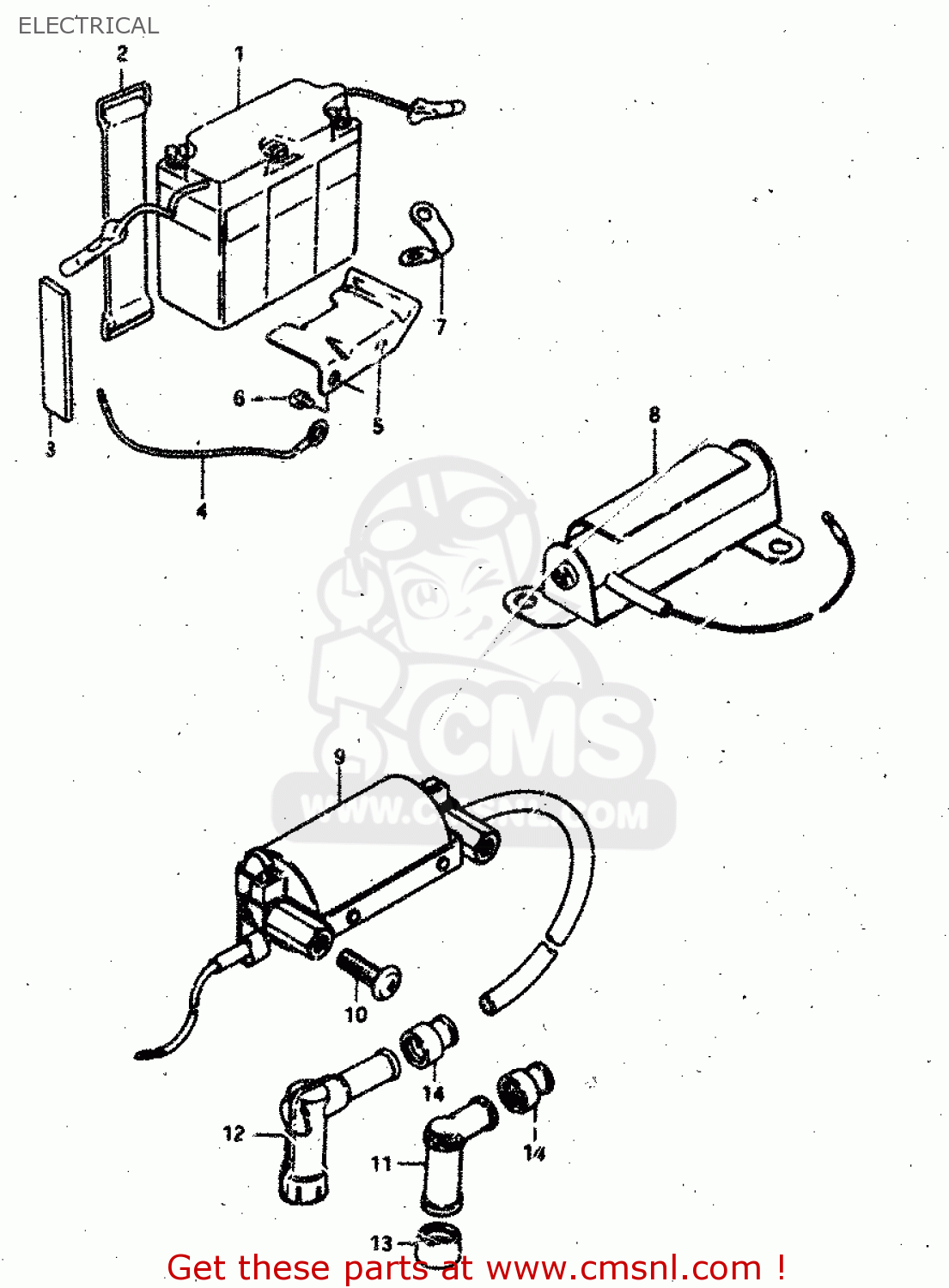

Electrical diagram RV50 1983 (D) (E01)

ELECTRICAL RV50 1983 (D) (E01)

ELECTRICAL RV50 1983 (D) (E01)

prices are in EUR

ref

part #

description

quantity

1

3361003610
ref: 1

BATTERY(6N4B-2A,6V4.2AH)

€ 49.50

2

0946200043
ref: 2

BAND

€ 4.50

3

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

4

3686227690
ref: 4

LEAD WIRE

€ 9.00

5

4154027200
ref: 5

HOLDER, BATTERY

€ 7.50

6

0110706108
ref: 6

BOLT

€ 2.00

7

0940407704
ref: 7

CLAMP

€ 6.50

8

3650027660
ref: 8
E4,E18,E39

RESISTOR ASSY,LAMP

€ 57.50

9

3341027210
ref: 9

COIL ASSY, IGNITION

€ 88.50

10

0211205128
ref: 10

SCREW

€ 2.50

11

3351022010
ref: 11

CAP ASSY,SPARK PLUG

€ 16.50

12

3351039110
ref: 12
E4,E18,E19,E21,E22,E

CAP,SPARK PLUG

€ 61.50

13

3354168010
ref: 13

SEAL, SPARK PLUG

€ 0.00

14

3354298000
ref: 14

SEAL,SPARK PLU

€ 4.50
