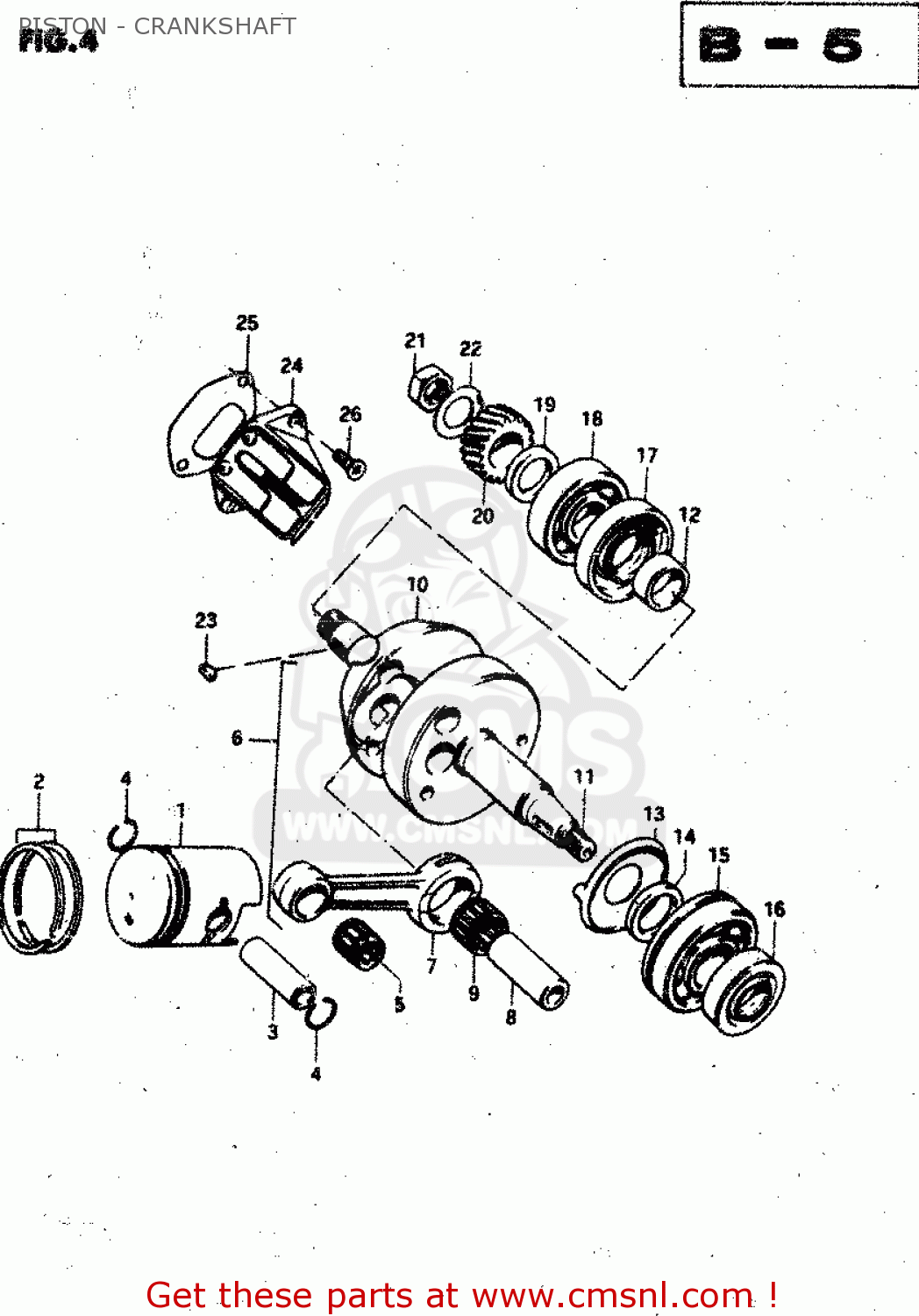

PISTON - CRANKSHAFT - RV50 1983 (D) (E01)

ref

part #

description

quantity

1-1

1211035000
ref: 1-1

PISTON (41.00MM)

€ 70.50

1-2

1211035000050
ref: 1-2
OPT

PISTON

€ 83.50

1-3

1211035000100
ref: 1-3
OPT

PISTON

€ 93.00

2-1

1214005100
ref: 2-1

RING SET,PISTON

€ 40.00

2-2

1214046110050
ref: 2-2
OPT

RING SET,PISTON(OS:0.50)

€ 24.50

2-3

1214046110100
ref: 2-3
OPT

RING SET,PISTON(OS:1.0)

€ 53.00

3

1215102000
ref: 3

PIN,PISTON

€ 9.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5

0926312015
ref: 5

BEARING

€ 9.00

6

1220035002
ref: 6

CRANKSHAFT SET

€ 267.00

7

1216135000
ref: 7

CONNECTING ROD

€ 52.50

8

1221119000
ref: 8

PIN,CRANK

€ 15.00

9

0926316016
ref: 9

BEARING

€ 19.00

10

1222135001
ref: 10

CRANKSHAFT, RH

€ 63.00

11

1226135002
ref: 11

CRANKSHAFT, LH

€ 44.00

12

0918017026
ref: 12

SPACER(17X23X9)

€ 6.00

13

1251106100
ref: 13

PLATE,CSHAFT OIL GUIDE

€ 8.00

14

0918020017
ref: 14

SPACER(20X28X4.5)

€ 3.50

15

0926920006
ref: 15

BEARING(20X47X14)

€ 21.50

16

0928320034
ref: 16

SEAL,OIL(19.6X37X8)

€ 6.00

17

0928323001
ref: 17

SEAL,OIL(22.2X47X8)

€ 6.50

18

0811363030
ref: 18

BEARING

€ 15.50

19

0918017027
ref: 19

SPACER(17.2X27X4.5)

€ 4.00

20

2111119002
ref: 20

GEAR,PRIMARY DRIVE NO.21

€ 29.00

21

0914014002
ref: 21

NUT

€ 4.00

22

0916614008
ref: 22

WASHER

€ 2.50

23

0834131039
ref: 23

KEY

€ 2.00

24

1315035010
ref: 24

REED VALVE ASSY

€ 46.00

25

1315635000
ref: 25

GASKET

€ 3.50

26

0212205168
ref: 26

SCREW

€ 2.00

PISTON - CRANKSHAFT

all assemblies
