REAR COMBINATION LAMP (E4, E18, E21, E39)
RV50 1983 (D) (E01)

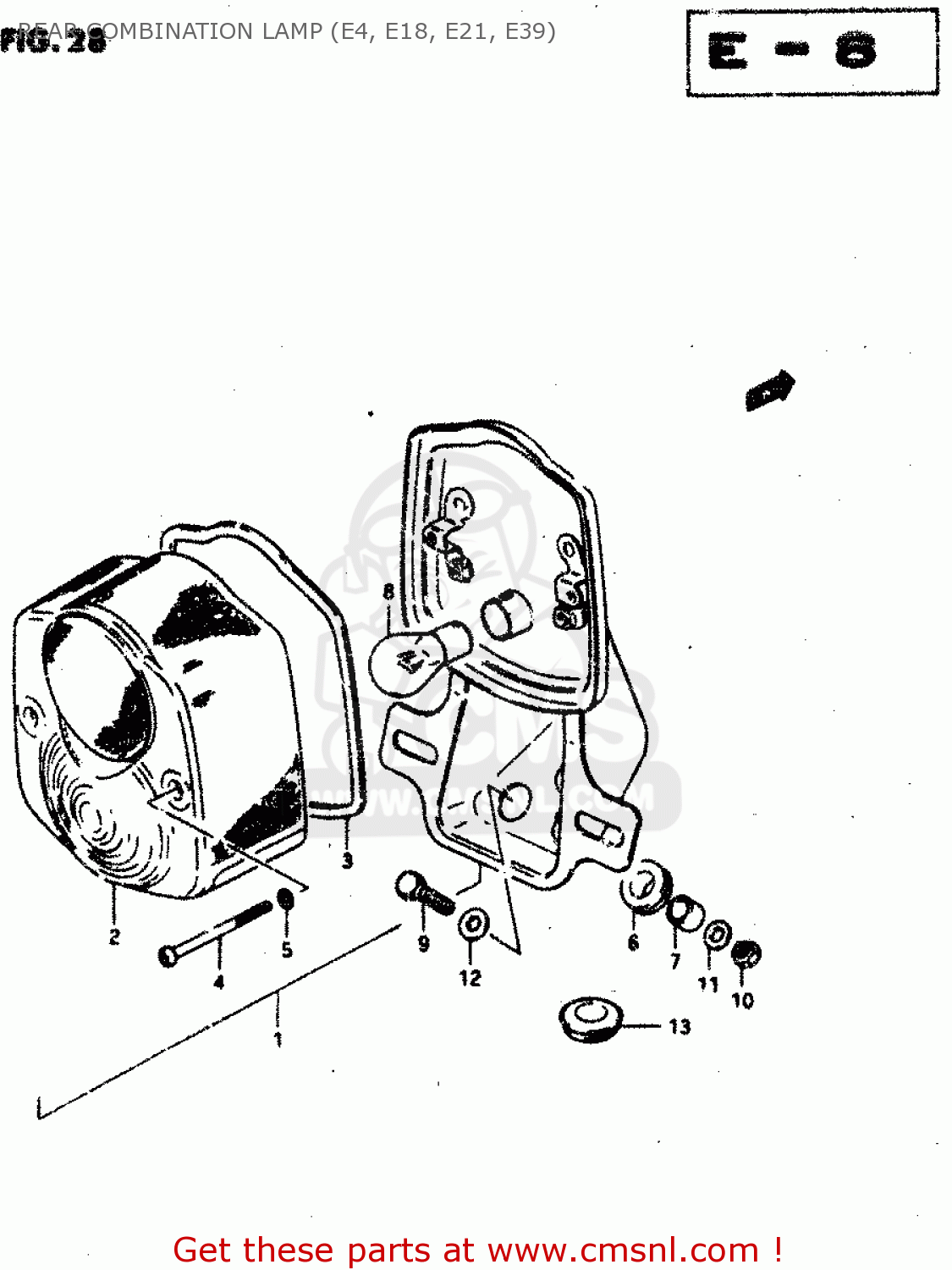

Rear combination lamp (e4, e18, e21, e39) diagram RV50 1983 (D) (E01)
REAR COMBINATION LAMP (E4, E18, E21, E39) RV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3571027282
ref: 1
FROM 35710-27281
LAMP ASSY, TAIL
€ 118.50
2
3571246623
ref: 2
FROM 35712-46622
LENS,RR COMBI
€ 39.00
3
3571346620
ref: 3
GASKET (NAS)
€ 8.00
4
3562335110
ref: 4
SCREW
€ 3.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
3576515010
ref: 6
CUSHION
€ 9.00
7
3576615010
ref: 7
SPACER,REAR COMBINATION LAMP
€ 11.50
8
0947106042
ref: 8
BULB (6V,21/5W)
€ 12.50
9
0110706168
ref: 9
BOLT, UPPER
€ 3.00
10
0831011068
ref: 10
NUT
€ 2.50
11
0832221068
ref: 11
WASHER
€ 2.00
12
0916006027
ref: 12
WASHER (6.5X20X1.2)
€ 2.00
13
0930805005
ref: 13
GROMMET
€ 3.00
