OIL TANK
RV50 1983 (D) (E01)

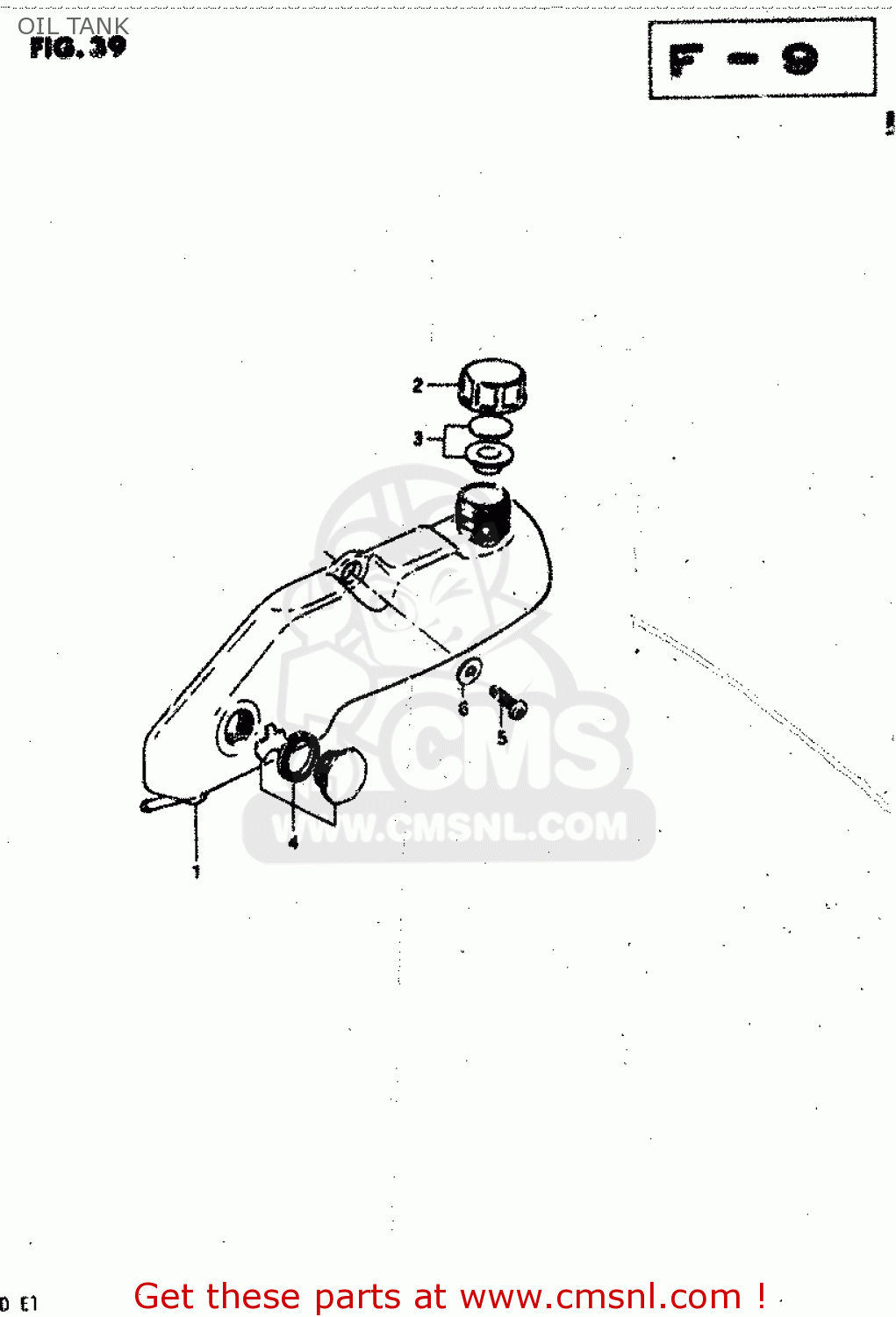

Oil tank diagram RV50 1983 (D) (E01)
OIL TANK RV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4461127201
ref: 1
TANK, OIL
€ 33.50
2
4465105003
ref: 2
CAP,OIL TANK
€ 4.00
3
4460030832
ref: 3
GASKET SET (NAS)
€ 6.00
4
4460031831
ref: 4
LENS SET,OIL LEVEL
€ 18.00
5
4464331000
ref: 5
GASKET (NAS)
€ 2.50
6
0211206168
ref: 6
SCREW
€ 2.50
7
0916006007
ref: 7
WASHER
€ 2.00
