REAR COMBINATION LAMP (E22)
RV50 1983 (D) (E01)

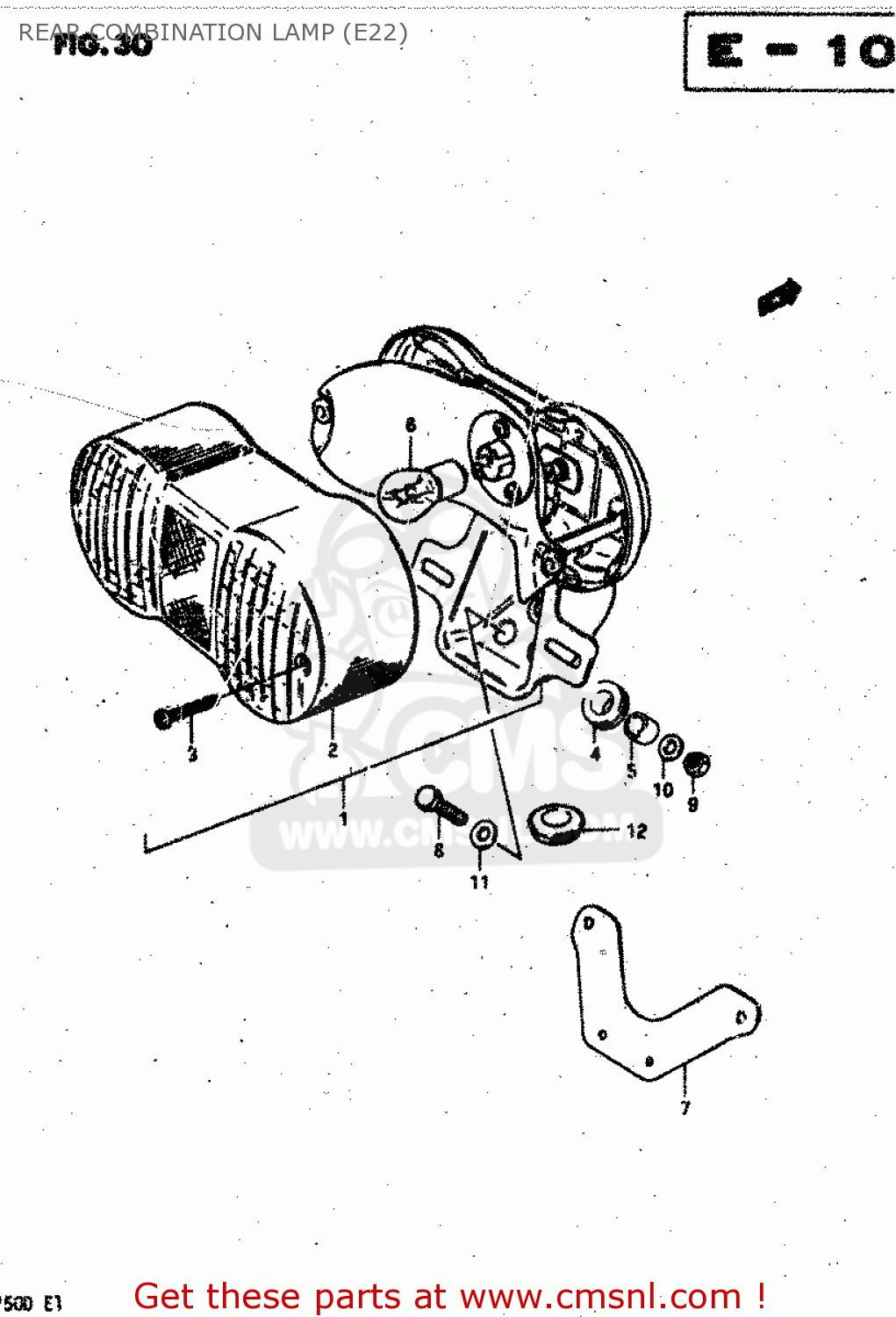

Rear combination lamp (e22) diagram RV50 1983 (D) (E01)
REAR COMBINATION LAMP (E22) RV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3571027651999
ref: 1
LAMP ASSY, TAIL
€ 172.00
2
3571227671
ref: 2
LENS,RR COMBINATION LAMP
€ 97.50
3
0211204208
ref: 3
SCREW
€ 1.00
4
3576515010
ref: 4
CUSHION
€ 9.00
5
3576615010
ref: 5
SPACER,REAR COMBINATION LAMP
€ 11.50
6
0947106034
ref: 6
EXECUTED LOCALLY
BULB (6V,21/5W)
€ 0.00
7
3592722600
ref: 7
FLATE, LICENCE
€ 13.00
8
0110706168
ref: 8
BOLT, UPPER
€ 3.00
9
0831011068
ref: 9
NUT
€ 2.50
10
0832221068
ref: 10
WASHER
€ 2.00
11
0916006027
ref: 11
WASHER (6.5X20X1.2)
€ 2.00
12
0930805005
ref: 12
GROMMET
€ 3.00
