REAR COMBINATION LAMP
RV50 1983 (D) (E01)

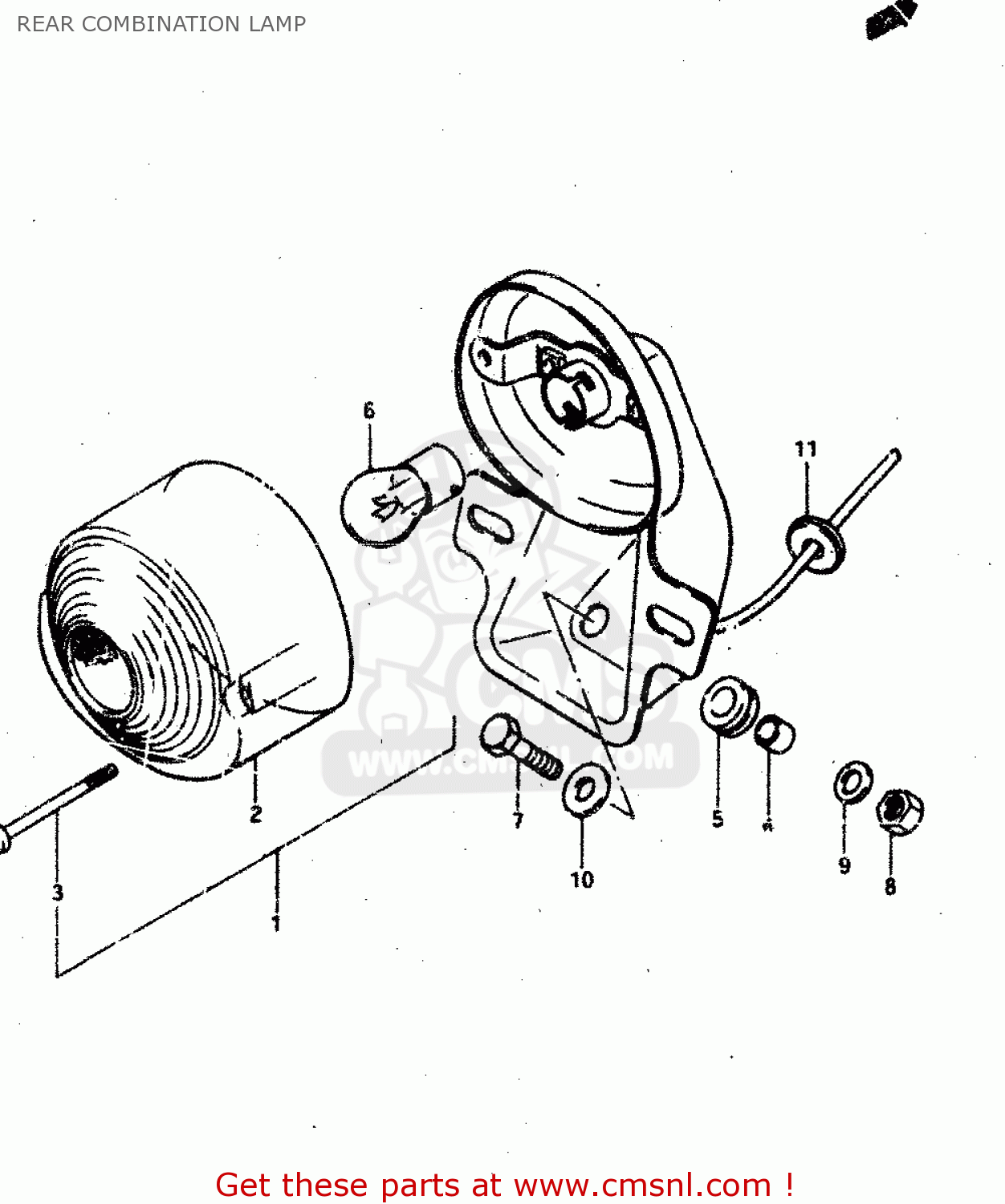

Rear combination lamp diagram RV50 1983 (D) (E01)
REAR COMBINATION LAMP RV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3571027341999
ref: 1
LAMP ASSY,RR COMBINATION
€ 123.50
2
3571206111
ref: 2
LENS,REAR COMBINATION LAMP
€ 37.50
3
0211104558
ref: 3
SCREW
€ 1.50
4
3576615010
ref: 4
SPACER,REAR COMBINATION LAMP
€ 11.50
5
3576515010
ref: 5
CUSHION
€ 9.00
6
0947106008
ref: 6
BULB(6V10/3W,STANLEY,A4854H)
€ 4.50
7
0110706168
ref: 7
BOLT, UPPER
€ 3.00
8
0831011068
ref: 8
NUT
€ 2.50
9
0832221068
ref: 9
WASHER
€ 2.00
10
0916006027
ref: 10
WASHER (6.5X20X1.2)
€ 2.00
11
0930805005
ref: 11
GROMMET
€ 3.00
