CYLINDER

RV50 1983 (D) (E01)

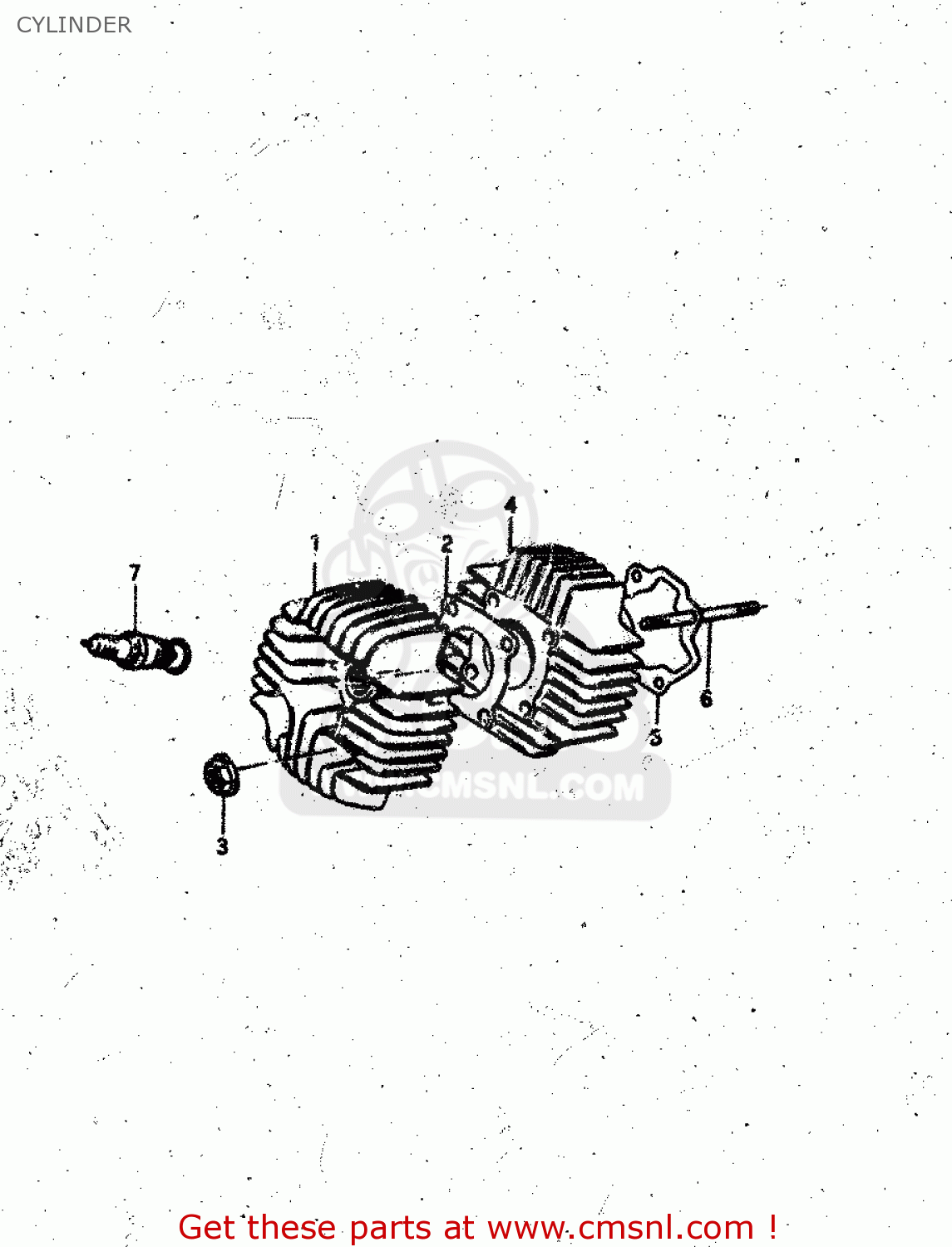

Cylinder diagram RV50 1983 (D) (E01)

CYLINDER RV50 1983 (D) (E01)

CYLINDER RV50 1983 (D) (E01)

prices are in EUR

ref

part #

description

quantity

1

1111119001
ref: 1

HEAD,CYLINDER

€ 92.50

2-1

1114106110
ref: 2-1

GASKET,CYLINDER HEAD (NAS)

€ 4.50

2-2

1114122600
ref: 2-2
E19

GASKET (T:1.5) (NAS)

€ 11.50

3

0915906017
ref: 3

NUT

€ 2.50

4-1

1121027200
ref: 4-1

CYLINDER

€ 243.00

4-2

1121027600
ref: 4-2
E19

CYLINDER

€ 0.00

5

1124119000
ref: 5

GASKET,CYLINDE (MCA)

€ 4.00

6

0142106958
ref: 6

STUD 6X95

€ 2.00

7-1

0948200084
ref: 7-1

PLUG,SPARK(BP6HS)

€ 4.00

7-2

0948200085
ref: 7-2

SPARK PLUG

€ 3.50
