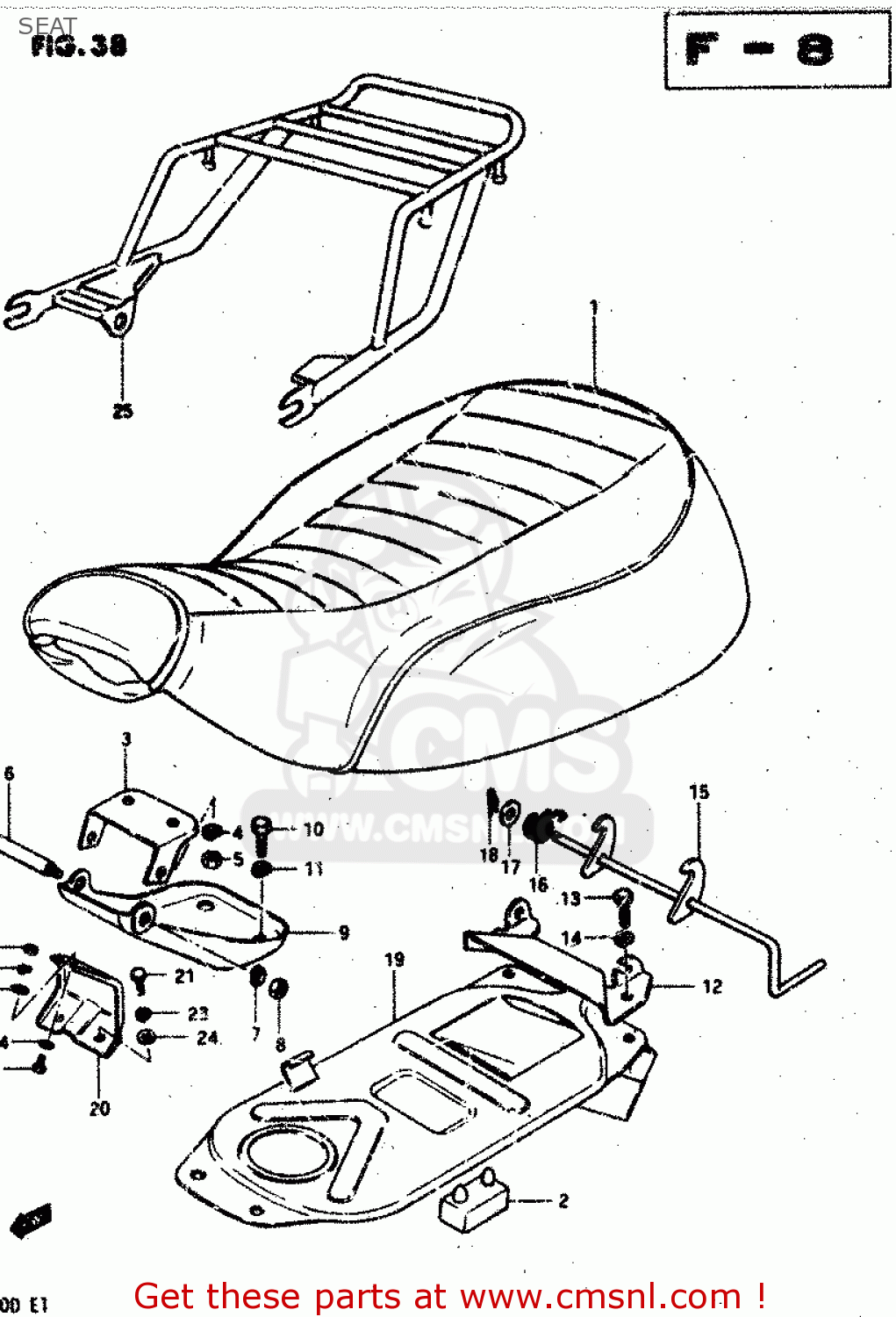

SEAT

ref

part #

description

quantity

1-1

4510027202865
ref: 1-1
MODEL X

SEAT ASSY (BLACK)

€ 805.00

1-2

451002720248F
ref: 1-2
MODEL D

SEAT ASSY (BLACK)

€ 805.00

1-3

4510027501865
ref: 1-3
MODEL X E18

SEAT ASSY (BLACK)

€ 191.00

1-4

451002750148F
ref: 1-4
MODEL D E18

SEAT ASSY (BLACK)

€ 191.00

1-5

4510027600865
ref: 1-5
MODEL X E22,E39

SEAT ASSY (BLACK)

€ 0.00

1-6

451002760048F
ref: 1-6
MODEL D E22,E39

SEAT ASSY (BLACK)

€ 0.00

1-7

4510027612865
ref: 1-7
MODEL X E41

SEAT ASSY (BLACK)

€ 0.00

1-8

451002761248F
ref: 1-8
MODEL D E41

SEAT ASSY (BLACK)

€ 0.00

2

0932108006
ref: 2

CUSHION

€ 3.00

3

4521102000
ref: 3

BRACKET,SEAT SUPPORT FR

€ 0.00

4

0832121068
ref: 4

LOCK WASHER

€ 2.50

5

0831011068
ref: 5

NUT

€ 2.50

6

0911106001
ref: 6

BOLT(6X71.5)

€ 3.00

7

0832121068
ref: 7

LOCK WASHER

€ 2.50

8

0831011068
ref: 8

NUT

€ 2.50

9

4526027200
ref: 9

BRACKET, LOWER

€ 18.50

10

0110708168
ref: 10

BOLT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

4522127201
ref: 12

BRACKET,SEAT SUPPORT

€ 7.50

13

0110706168
ref: 13

BOLT, UPPER

€ 3.00

14

0832121068
ref: 14

LOCK WASHER

€ 2.50

15

4521027201
ref: 15

SHAFT,SEAT CLAMP

€ 8.50

16

0944812004
ref: 16

SPRING

€ 2.50

17

0832221088
ref: 17

WASHER

€ 2.00

18

0938506001
ref: 18

CLIP

€ 11.00

19

4527027200019
ref: 19

PLATE, LOWER (BLACK)

€ 32.50

20

4528527200019
ref: 20

BRACKET, FRONT (BLACK)

€ 12.50

21

0110706168
ref: 21

BOLT, UPPER

€ 3.00

22

0831011068
ref: 22

NUT

€ 2.50

23

0832121068
ref: 23

LOCK WASHER

€ 2.50

24

0832221068
ref: 24

WASHER

€ 2.00

25-1

4631027401
ref: 25-1
E18,E22,E39

CARRIER,SPORT

€ 162.50

25-2

4631027410
ref: 25-2
E41

CARRIER, SPORT

€ 0.00
